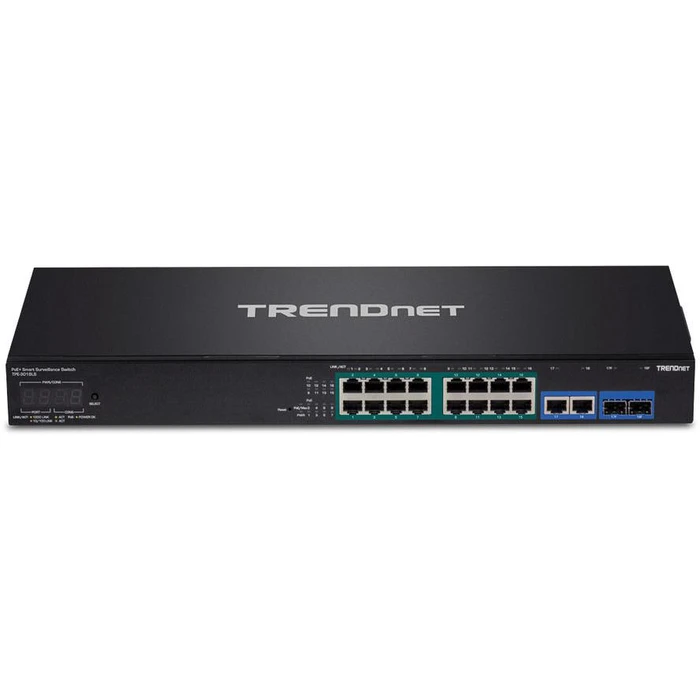

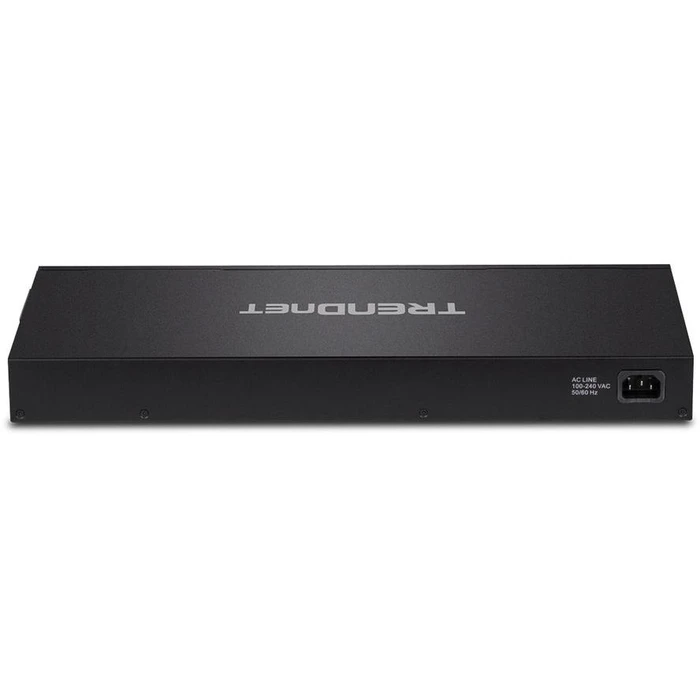

Network Switch Trendnet 18-Port Gigabit PoE+ Smart Surveillance

Technical Specifications

• Number of basic switching RJ-45 Ethernet ports
  18
• Basic Switching RJ-45 Ethernet Ports Type
  Gigabit Ethernet (10/100/1000)
• Number of fiber connectors
  2
• Optical cable connector
  SFP
• mesh standard
  IEEE 802.1D,IEEE 802.1Q,IEEE 802.1ab,IEEE 802.1p,IEEE 802.1s,IEEE 802.1w,IEEE 802.1x,IEEE 802.3,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3af,IEEE 802.3at,IEEE.802.3az ,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z
• 10G support
  no
• full duplex
  yes
• Broadcast Storm Control
  yes
• MAC address self-learning supported
  yes
• Head of Line (HOL) blocking
  yes
• VLAN support
  yes
• Virtual LAN functions
  MAC address-based VLAN,Tagged VLAN,Voice VLAN
• MAC address table
  8 entries
• Routing/Switching Capacity
  36 Gbps
• transfer rate
  26.7 Mpps
• Store and Forward
  yes
• Jumbo frames support
  yes
• jumbo frames
  10
• DHCP functions
  DHCP snooping
• access control list
  yes
• IGMP entries
  1000
• IGMP snooping
  yes
• IP MAC port binding
  yes
• Rack mount
  yes
• form factor
  1U
• product color
  black
• LED indicators
  yes
• number of fans
  1 fan
• certification
  CE, FCC, ETL
• switch type
  managed
• Quality of Service (QoS) support
  yes
• Web-based management
  yes
• MIB support
  RMON MIB RFC 1271, IPV4 MIB RFC 1213, SNMP MIB RFC 3415
• noise level
  60.1dB
• Mean Time Between Failures (MTBF)
  331516 h
• Supplied cables
  AC
• Quick Start Overview
  yes
• rack mount kit
  yes
• broad
  440mm
• depth
  195mm
• height
  44.4mm
• Weight
  2.93kg
• operating temperature range
  0 - 40 °C
• Operating relative humidity
  0 - 90%
• Power over Ethernet (PoE)
  yes
• Power over Ethernet (PoE) type supported
  PoE+
• Number of Power over Ethernet plus (PoE+) ports
  16
• Power over Ethernet (PoE) performance per port
  30W
• Total power Power over Ethernet (PoE)
  220W
• Power adapter included
  yes
• AC input voltage
  100 - 240V
• AC input frequency
  50/60Hz
• Power consumption (max.)
  14 w
