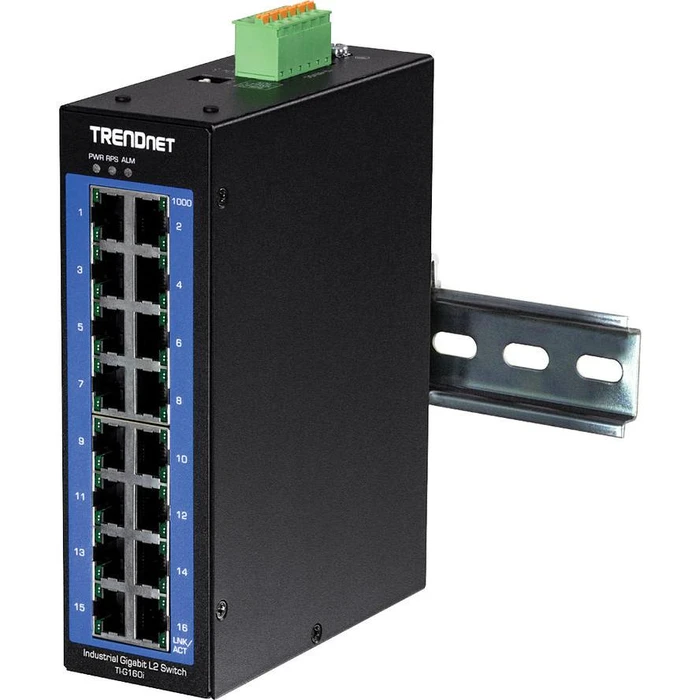

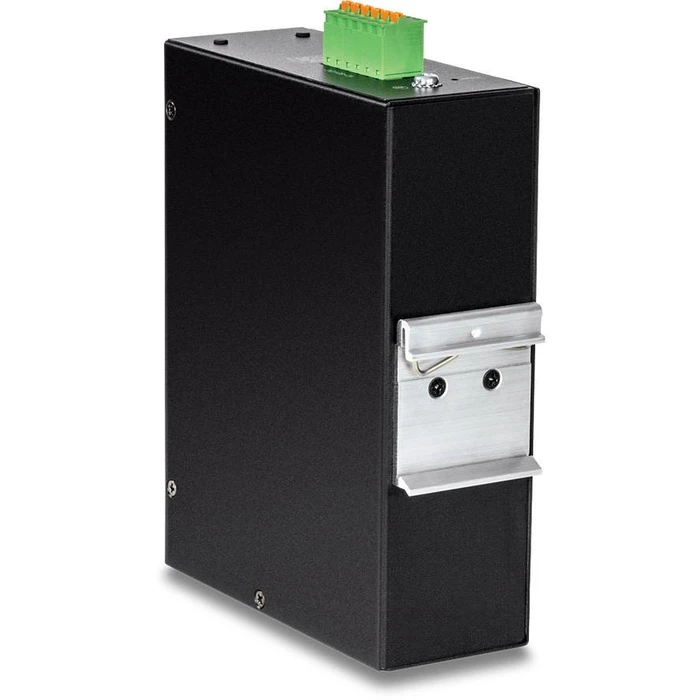

Network Switch Trendnet 16-Port Industr. Gigabit L2 Managed DIN-Rail

Technical Specifications

• Number of basic switching RJ-45 Ethernet ports
  16
• Basic Switching RJ-45 Ethernet Ports Type
  Gigabit Ethernet (10/100/1000)
• mesh standard
  IEEE 802.1AX,IEEE 802.1D,IEEE 802.1Q,IEEE 802.1ab,IEEE 802.1p,IEEE 802.1w,IEEE 802.1x,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3az,IEEE 802.3u,IEEE 802.3x
• 10G support
  no
• port mirroring
  yes
• full duplex
  yes
• Broadcast Storm Control
  yes
• Spanning Tree Protocol
  yes
• link aggregation
  yes
• VLAN support
  yes
• Virtual LAN functions
  MAC address-based VLAN,Tagged VLAN
• Number of VLANs
  4094
• MAC address table
  8000 entries
• Routing/Switching Capacity
  32 Gbps
• transfer rate
  23.8 Mpps
• Store and Forward
  yes
• Jumbo frames support
  yes
• jumbo frames
  10000
• Data packet buffer memory
  128MB
• DHCP functions
  DHCP relay,DHCP server,DHCP snooping
• access control list
  yes
• IGMP snooping
  yes
• BPDU filtering/protection
  yes
• Supported security algorithms
  SNMP,SNMPv3,SSH-2
• Queue Scheduling Algorithms
  SP, WFQ, Weighted Round Robin (WRR)
• Multicast support
  yes
• Multicast MAC address table
  256 entries
• product color
  black
• housing material
  metal
• LED indicators
  yes
• International degree of protection (IP code)
  IP30
• DIN rail mounting
  yes
• certification
  CE, FCC IEC 60068-2-27, IEC 60068-2-32, IEC 60068-2-6
• switch type
  managed
• Quality of Service (QoS) support
  yes
• Web-based management
  yes
• System event log
  yes
• MIB support
  II RFC 1213, RFC 1493
• Mean Time Between Failures (MTBF)
  1072674 h
• Quick Start Overview
  yes
• broad
  160mm
• depth
  120mm
• height
  50mm
• Weight
  884g
• operating temperature range
  -40 - 75?
• Operating relative humidity
  0 - 95%
• Power over Ethernet (PoE)
  no
• DC input voltage
  12 - 60V
• Power consumption (max.)
  12 w
