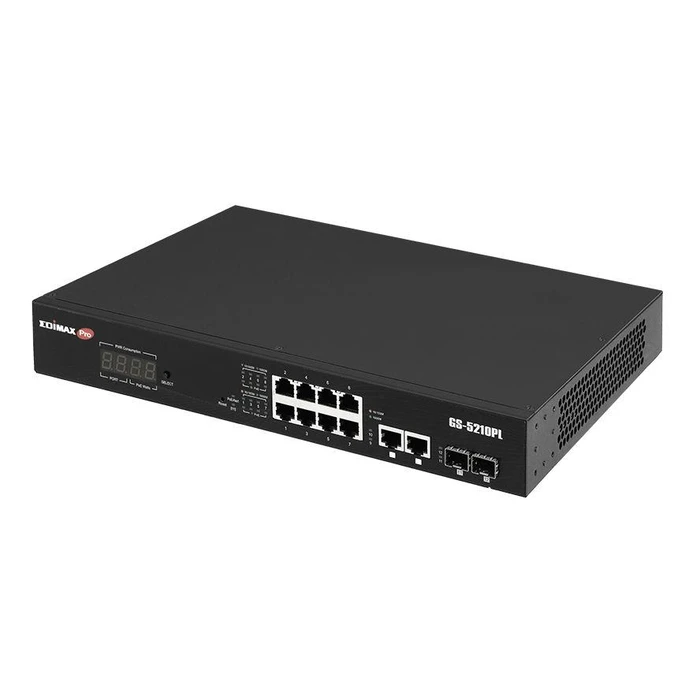

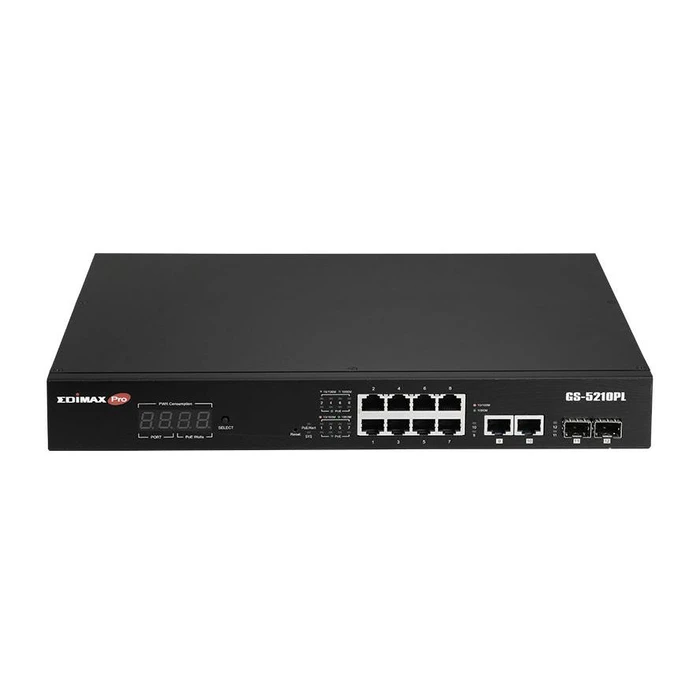

Network Switch Edimax 12x GE GS-5210PL

Technical Specifications

• device type
  Switch - 12 ports - Smart
• case type
  Desktop 1U
• subtype
  gigabit ethernet
• ports
  10 x 10/100/1000 + 2 x Gigabit SFP (uplink)
• Power Over Ethernet (PoE)
  PoE+
• PoE budget
  110W
• power
  Switching Capacity: 24 Gbps ¦ Packet Filter/Forwarding Rate (1,000 Mbps): 1,488,000 pps ¦ Packet Filter/Forwarding Rate (100 Mbps): 148,800 pps ¦ Packet Filter/Forwarding Rate (10 Mbps): 14,880 pps ¦ Forwarding Rate (64-byte packets) : 17.8 Mpps
• capacity
  Virtual Interfaces (VLANs): 4094
• MAC address table size
  8000 entries
• Jumbo frame support
  9KB
• routing protocol
  IGMPv2, IGMP, IGMPv3
• remote management protocol
  SNMP 3
• authentication method
  RADIUS
• performance characteristics
  VLAN support, IGMP snooping, syslog support, port mirroring, store-and-forward, IPv6 support, full duplex mode, firmware upgradable, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support , DHCP snooping, Access Control List (ACL) support, Quality of Service (QoS), Jumbo Frames support, DHCP server, Dynamic ARP Inspection (DAI), Reset button, IPv4 support, Link Aggregation Control Protocol (LACP), Port Security, Dual Firmware Images, Strict Priority Queuing (SPQ), Neighbor Discovery Protocol (NDP), Class of Service (CoS), Generic VLAN Registration Protocol (GVRP), ONVIF support, SNMP support, Storm Control, IP source guard, Internet Control Message Protocol (ICMP), Voice VLAN, protected interfaces, Denial of Service (DoS) protection,Energy Efficient Ethernet (EEE), Weighted Round Trip Method (WRR), DSCP based CoS, MAC based VLAN, Port based VLAN, Port bundling, DSCP prioritization, IGMP support
• Product Certifications
  IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3at , IEEE802.3az
• status indicator
  Power, PoE, Link/Activity
• interfaces
  10 x 1000Base-T RJ-45 PoE+ - 30 W ¦ 2 x Gigabit LAN SFP+
• power supply device
  Internal power supply
• Required mains voltage
  AC 100-240V (50/60Hz)
• Product Certifications
  FCC Class A certified
• broad
  23 cm
• depth
  33 cm
• height
  4.4 cm
• Weight
  2.3kg
• Min operating temperature
  0°C
• Max operating temperature
  50?
• Permissible humidity during operation
  10 - 90% (non-condensing)
• Minimum storage temperature
  -40?
• Max storage temperature
  70?
• Permissible humidity during storage
  10 - 90% (non-condensing)
