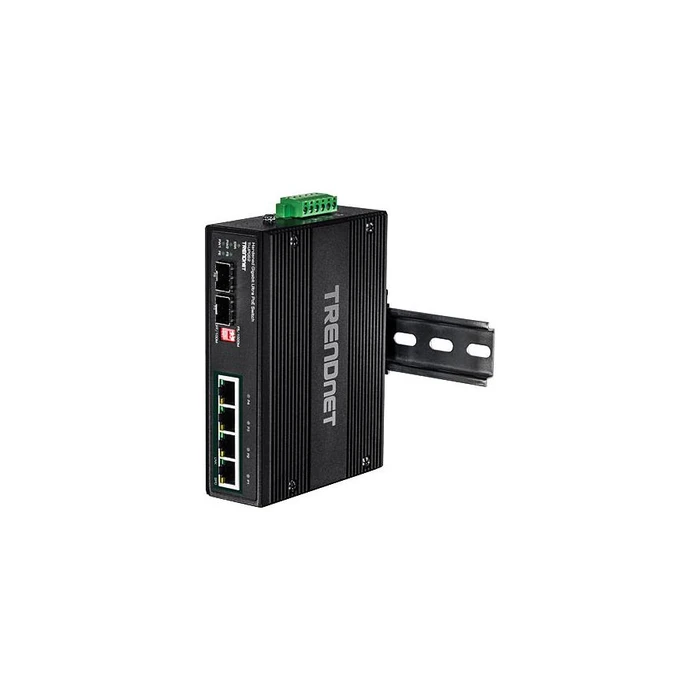

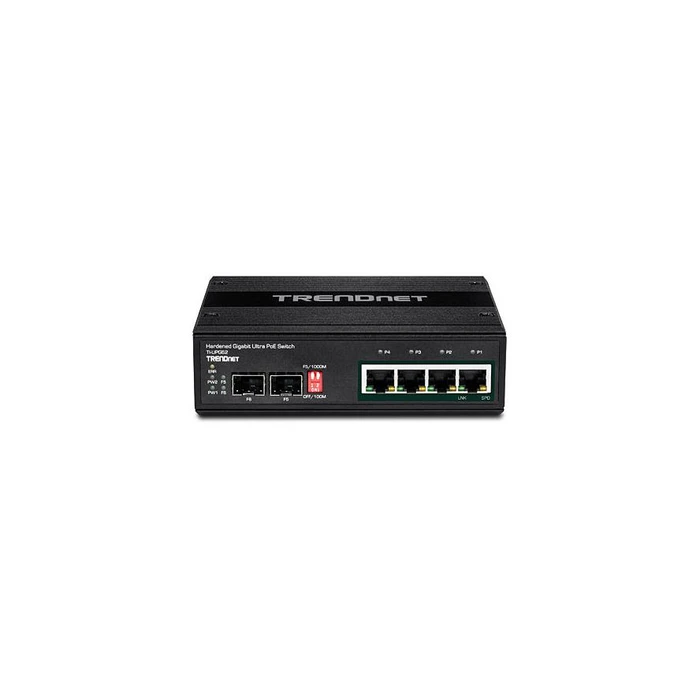

Network Switch TrendNet 6-port Industrial Gbit UPoE Metall IP30

Technical Specifications

• Number of basic switching RJ-45 Ethernet ports
  4th
• Basic switching RJ-45 Ethernet ports type
  Gigabit Ethernet (10/100/1000)
• Number of Gigabit Ethernet (copper) connections
  4th
• Number of installed SFP modules
  2
• Network standard
  IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
• 10G support
  no
• Copper ethernet cabling technology
  10BASE-T, 100BASE-TX, 1000BASE-T
• Full duplex
  yes
• Auto-negotiation function
  yes
• Auto-aging of MAC addresses supported
  yes
• Self-learning of MAC addresses supported
  yes
• Support data flow control
  yes
• MAC address table
  1024 entries
• Routing / switching capacity
  12 Gbit / s
• Passage
  8.9 Mpps
• Store-and-forward
  yes
• Jumbo frames support
  yes
• Jumbo frames
  9000
• Rack installation
  no
• Product color
  black
• Housing material
  metal
• LED indicators
  yes
• Wall mounting
  yes
• International protection class (IP code)
  IP30
• DIN rail mounting
  yes
• Certification
  FCC, CE RoHS
• Switch type
  Unmanaged
• Switch level
  L2
• Quick start overview
  yes
• Mounting blocks included
  yes
• Terminal block included
  yes
• broad
  143 mm
• depth
  105 mm
• height
  36 mm
• weight
  514 g
• Operating temperature range
  -40 - 75 ° C
• Power over Ethernet (PoE)
  yes
• Total power over Ethernet (PoE)
  240 W
• Terminal block connection
  yes
• Input voltage
  48 - 56 V
• Support for redundant power supply
  yes
• Power consumption (max.)
  5.76 W
• Energy protection properties
  Overload protection
