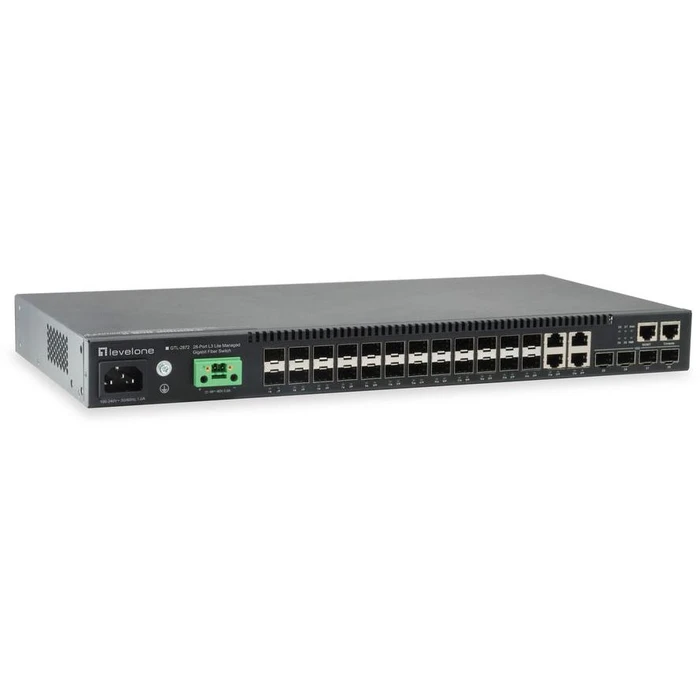

Network Switch LevelOne GTL-2872 20xGSFP 19" 4x10GSFP

Technical Specifications

• Device type
  Switch - 28 ports - L3 Lite - managed
• Housing type
  Can be rack-mounted
• Subtype
  Gigabit Ethernet
• Ports
  20 x Gigabit SFP + 4 x Shared 10/100/1000 + 4 x 10 Gigabit SFP +
• power
  Backplane speed: 128 Gbps ¦ packet forwarding rate: 95 Mbit / s ¦ switching capacity: 128 Gbps
• capacity
  VLAN support: 4000
• Size of the MAC address table
  16,000 entries
• Jumbo frame support
  9KB
• Routing Protocol
  IGMPv2, IGMP, IGMPv3, static IPv4 routing, static IPv6 routing, MLD
• Remote administration protocol
  SNMP 1, RMON, Telnet, SNMP 3, SNMP 2c, TFTP, CLI, OAM
• Performance characteristics
  Auto-negotiation, auto-uplink (Auto MDI / MDI-X), IGMP snooping, IPv6 support, half duplex mode, full duplex mode, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, support for Access Control List (ACL), Dynamic ARP Inspection (DAI), Per-VLAN Spanning Tree Plus (PVST +), IPv4 support, Link Aggregation Control Protocol (LACP), Port Security , Dynamic VLAN Support (GVRP), loopback, IGMP proxy, 802.1x authentication, IGMP filtering, IGMP throttling, protocol-based VLAN support, back pressure support, VLAN trunking protocol (VTP), digital diagnostics monitoring (DDM), IGMP query, VLAN double tagging (Q-in-Q), guest VLAN, energy-efficient Ethernet (EEE), MAC based VLAN, control protocol tunneling of the 2nd layer,Connection-based VLAN, IGMP Immediate Leave, ARP spoofing, VLAN trunking
• Product certifications
  IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1v, IEEE 802.1ag , IEEE 802.3az, ITU-T Y.1731
• R.A.M.
  512 MB
• Flash memory
  256 MB
• Status indicator
  Power supply, link / activity, diagnostics
• Interfaces
  20 x 1000Base-X SFP ¦ 4 x Gigabit LAN RJ-45 / SFP ¦ 4 x 10GBase-X SFP + ¦ 1 x console RJ-45
• Power supply device
  Internal power supply
• Required mains voltage
  AC 120/230 V / DC 48 - 60 V (50/60 Hz)
• Power consumption in operation
  21.48 watts
• Rack mounting kit
  Supplied
• MTBF
  298,951 hours
• Product certifications
  BSMI, FCC, UL 60950-1, CISPR
• broad
  44 cm
• depth
  22 cm
• height
  4.4 cm
• weight
  3.32 kg
• Min operating temperature
  0 ° C
• Max. Operating temperature
  50 ° C
• Permissible humidity in operation
  10 - 90% (non-condensing)
• Permissible humidity during storage
  10 - 90% (non-condensing)
