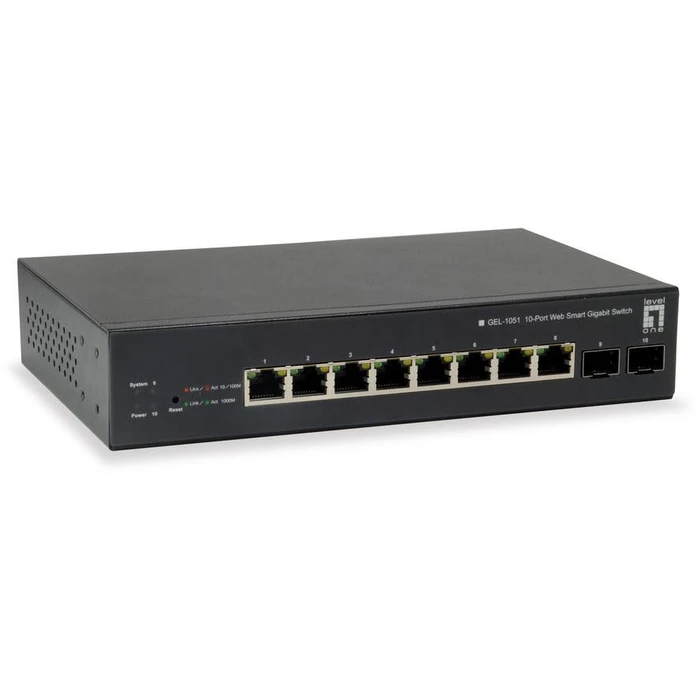

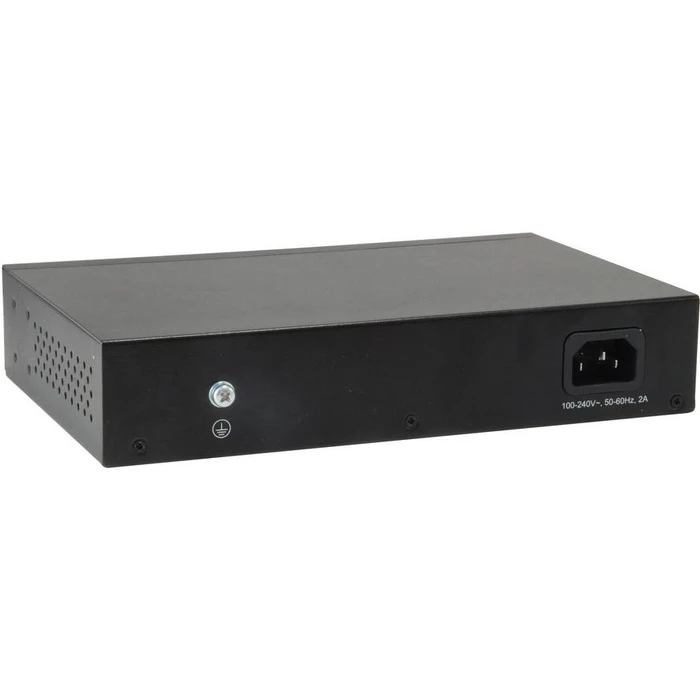

Network Switch LevelOne 8x GE GEP-1051 2xGSFP 70W 8xPoE

Technical Specifications

• Number of basic switching RJ-45 Ethernet ports
  8th
• Basic switching RJ-45 Ethernet ports type
  Gigabit Ethernet (10/100/1000)
• Quantity of SFP module slots
  2
• Network standard
  IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x , IEEE 802.3z
• 10G support
  no
• Copper ethernet cabling technology
  10BASE-T, 100BASE-TX, 1000BASE-T
• Port mirroring
  yes
• Spanning Tree Protocol
  yes
• Link aggregation
  yes
• Broadcast storm control
  yes
• Rate restriction
  yes
• Support data flow control
  yes
• Quick farewell
  yes
• VLAN support
  yes
• Virtual LAN functions
  Tagged VLAN, port-based VLAN
• Ethernet cable cabling technology
  1000BASE-X
• MAC address table
  8000 entries
• Routing / switching capacity
  20 Gbit / s
• Transfer rate
  14.9 Mpps
• Store-and-forward
  yes
• Number of queues
  8th
• Jumbo frames support
  yes
• Jumbo frames
  10,000
• Data packet buffer memory
  4.1 MB
• DHCP functions
  DHCP client
• Access Control List
  yes
• Access Control List (ACL) input
  256
• IGMP snooping
  yes
• Supported security algorithms
  SSH, SSH-2, SSL / TLS
• Root protection
  yes
• BPDU filtering / protection
  yes
• Authentication type
  HWTACACS +, RADIUS
• password protection
  yes
• Neighbor Discovery Sniffing
  yes
• Queue planning algorithms
  Weighted Round Robin (WRR)
• CPU defense
  yes
• Filter MAC addresses
  yes
• Loop protection
  yes
• DoS attack prevention
  yes
• Static connection security
  yes
• Multicast Listener Discovery (MLD) Snooping
  Y
• Management logs
  SNMP v1 / v2c / v3, Telnet
• IPv4 & IPv6 functions
  IPv6 ping, IPv6 tracert, IPv6 Telnet, Dual stack IPv4 / IPv6
• Rack installation
  yes
• Product color
  black
• Reset button
  yes
• LED indicators
  Activity, link, performance, system
• Country of origin
  China
• safety
  UL
• Certification
  CE class A, FCC, VCCI, BSMI
• Switch type
  Managed
• Switch level
  L2 / L3 / L4
• Quality of Service (QoS) support
  yes
• Web based management
  yes
• ARP inspection
  yes
• System event log
  yes
• MIB support
  Y
• RAM
  16 MB
• Plug & Play
  yes
• Firmware upgradeable
  yes
• Mean Time Between Failures (MTBF)
  118824 h
• Supplied cables
  AC
• Quick start overview
  yes
• Rack mounting kit
  yes
• Resource CD
  yes
• Packaging type
  box
• Packaging width
  375 mm
• Packaging depth
  270 mm
• Packing height
  85 mm
• Package weight
  2.18 kg
• broad
  294 mm
• depth
  180 mm
• height
  44 mm
• weight
  2 kg
• Operating temperature range
  0 - 50 ° C
• Humidity in operation
  10 - 90%
• Heat dissipation
  267.95 BTU / hour
• Power over Ethernet (PoE)
  yes
• Number of Power over Ethernet plus (PoE +) connections
  8th
• Power over Ethernet (PoE) power per connection
  30 W
• Total power over Ethernet (PoE)
  70 W
• AC input voltage
  100-240V
• AC input frequency
  50-60 Hz
• Power consumption (in operation)
  80 W
