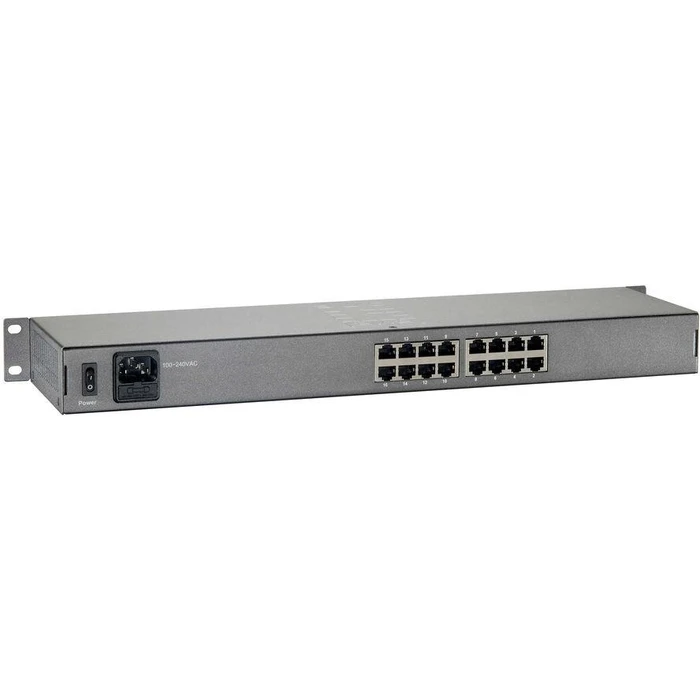

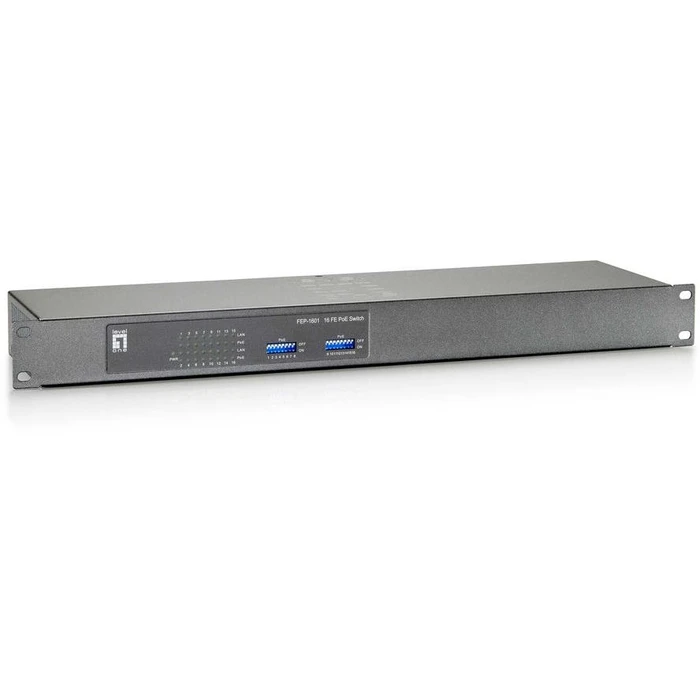

Network Switch LevelOne 16x FE FEP-1601W150 19" 150W 16xPoE

Technical Specifications

• Number of basic switching RJ-45 Ethernet ports
  16
• Basic switching RJ-45 Ethernet ports type
  Fast Ethernet (10/100)
• Network standard
  IEEE 802.3, IEEE 802.3u, IEEE 802.3x
• 10G support
  no
• Copper ethernet cabling technology
  10BASE-T, 100BASE-TX
• Full duplex
  yes
• Auto MDI / MDI-X
  yes
• Support data flow control
  yes
• Auto-negotiation function
  yes
• MAC address table
  4000 entries
• Routing / switching capacity
  3.2 Gbit / s
• Store-and-forward
  yes
• Packet forwarding rate (10 Mbit / s)
  14880 pps
• Packet forwarding rate (100 Mbit / s)
  148,000 pps
• Rack installation
  yes
• Product color
  Gray
• LED indicators
  Activity, PoE, power
• On / off switch
  yes
• Country of origin
  Taiwan
• Certification
  FCC, CE, RoHS
• Buffer size
  160 KB
• Width of the shipping box
  42 cm
• Shipping box length
  31 cm
• Shipping box height
  26 cm
• Shipping box weight
  17 kg
• Quantity per shipping box
  10 piece (s)
• Supplied cables
  AC
• Packaging type
  box
• operating manual
  yes
• Packaging width
  222 mm
• Packaging depth
  146 mm
• Packing height
  78 mm
• Package weight
  2.6 kg
• broad
  480 mm
• depth
  118 mm
• height
  44 mm
• weight
  2.2 kg
• Operating temperature range
  0 - 45 ° C
• Storage temperature range
  -40 - 70 ° C
• Humidity in operation
  10 - 90%
• Storage humidity
  10 - 90%
• Power over Ethernet (PoE)
  Number of Power over Ethernet (PoE) connections
• 16
  Power over Ethernet (PoE) power per connection
• 30 W
  Total power over Ethernet (PoE)
• yes
  142 W
• AC input voltage
  100-240V
• AC input frequency
  50-60 Hz
• Input current
  5 A
• Power consumption (in operation)
  150 W
• Energy protection properties
  Overcurrent
