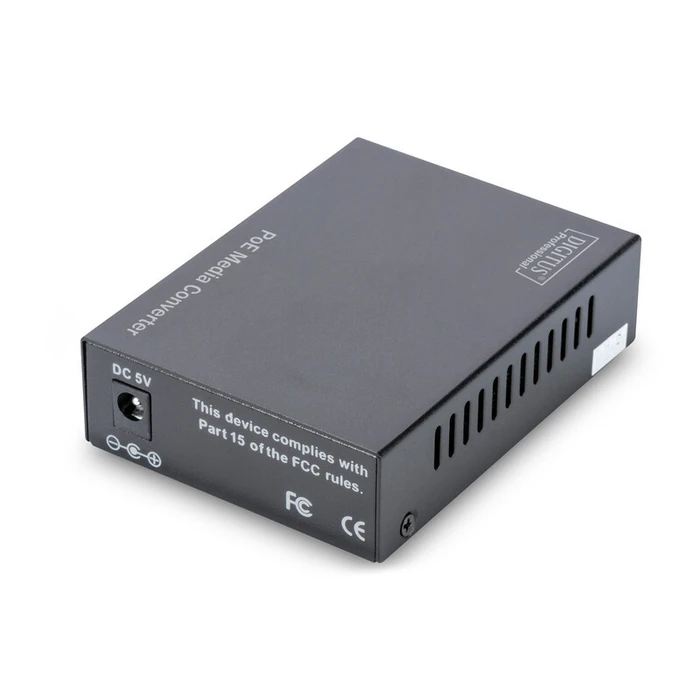

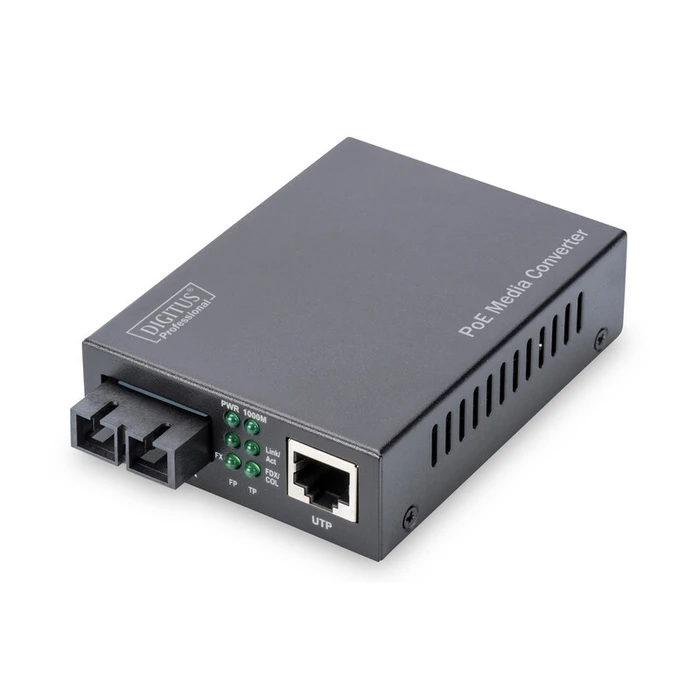

Μετατροπέας Digitus Gigabit PoE Singlem.Media RJ45/SC SM PSE

Technical Specifications

• Total output Power over Ethernet (PoE)
  30 W
• output voltage
  48-52 V
• Power over Ethernet (PoE)
  Yes
• Data transfer rate (max)
  1000 Mbit / s
• Converter input interface
  100Base-TX, 1000Base-TX
• Converter output surface
  1000Base-LX
• Networking standards
  IEEE 802.3, IEEE 802.3af, 802.3at IEEE, IEEE 802.3u, IEEE 802.3z
• Ethernet Interface Type
  Fast Ethernet, Gigabit Ethernet
• Ethernet LAN data transfer rates
  10,100,1000 Mbit / s
• Copper Ethernet cabling technology
  100BASE-TX, 1000BASE-TX
• Ethernet cable Verkablungstechnologie
  1000BASE-LX
• Data transfer rate
  1000 Mbit / s
• Auto MDI / MDI-X
  Yes
• Duplex system
  Full, Half
• DC connection
  Yes
• transmission technology
  Wired
• Ethernet LAN (RJ-45)
  1
• Fiber Channel ports
  1
• Optical cable connector
  SC
• Number of Power over Ethernet (PoE) ports
  1
• Mean time between failures (MTBF)
  500,000 h
• Maximum transfer distance
  20000 m
• wavelength
  1310 nm
• Cable mode structure
  Single mode
• Built-in
  No
• LED displays
  Activity, link, power, status
• Color of product
  black
• AC power adapter
  Yes
• Quick Installation Guide
  Yes
• packaging width
  130 mm
• packaging depth
  240 mm
• packaging height
  60 mm
• packaging volume
  1872 cc
• package weight
  800 g
• Temperature range in operation
  -20 - 65 ° C
• Storage temperature range
  -40 - 85 ° C
• Width of the shipping carton
  41 cm
• Shipping Carton Length
  57 cm
• Carton height
  28 cm
• Weight shipping carton
  8 kg
• Volume master carton
  65436 cc
• Amount per shipping carton
  10 piece (s)
• width
  71 mm
• depth
  95 mm
• height
  26 mm
