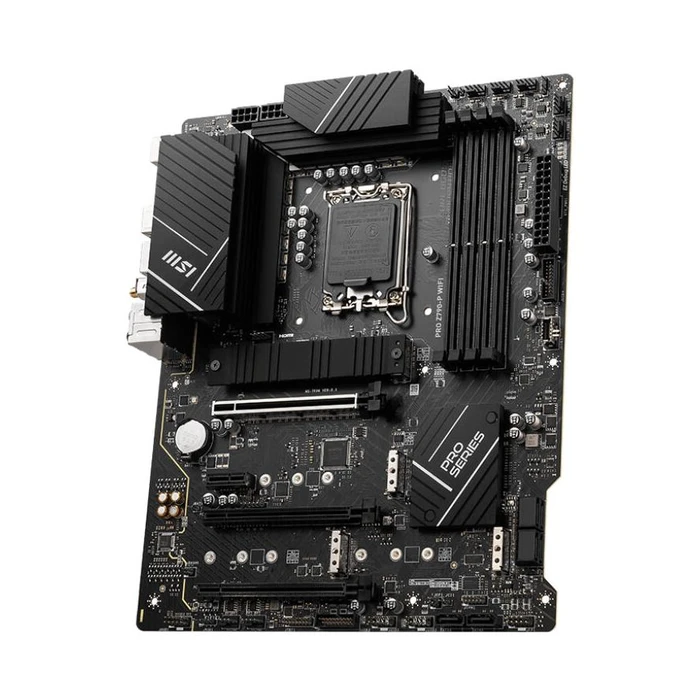

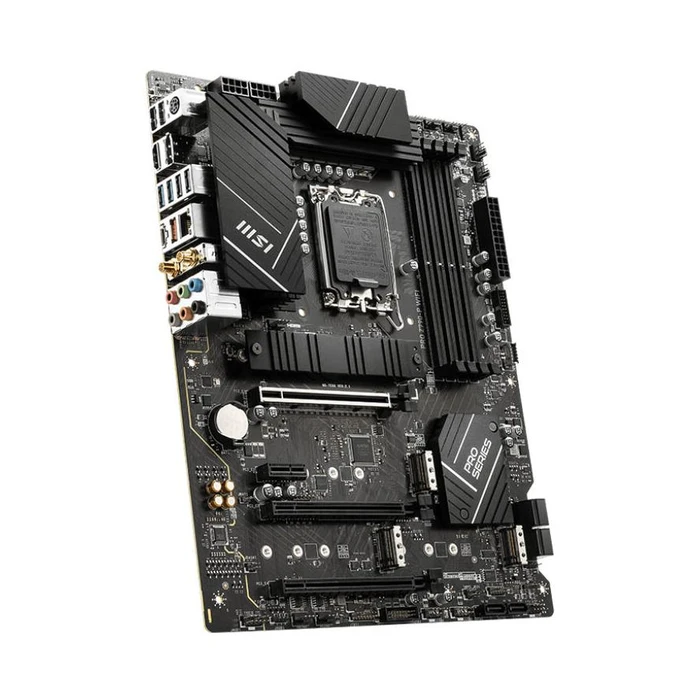

Motherboard MSI PRO Z790-P Wifi (Z790,S1700,ATX,Intel)

Technical Specifications

• product type
  Motherboard - ATX
• chipset
  Intel Z790
• processor socket
  LGA1700 socket
• Max. processors
  1
• Compatible processors
  (supports 12th and 13th generation Intel Core / Pentium Gold / Celeron)
• Max size
  128GB
• technology
  DDR5
• bus clock
  5800MHz(OC), 6000MHz(OC), 4800MHz, 6200MHz(OC), 6400MHz(OC), 6600MHz(OC), 7000MHz(OC), 6800MHz(OC), 5200MHz, 5000MHz , 5600MHz, 5400MHz
• Supported RAM integrity check
  Non ECC
• Registered or buffered
  Unbuffered
• particularities
  Dual channel memory architecture, Intel Extreme Memory Profiles (XMP) 3.0
• Type
  HD Audio (8-channel)
• audio codec
  Realtek ALC897
• compatibility
  High definition audio
• network interfaces
  2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax, Bluetooth 5.3
• expansion slots
  1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 5.0 x16 ¦ 1 x PCIe 4.0 x16 (x4 mode) ¦ 1 x PCIe 3.0 x1 ¦ 1 x PCIe 3.0 x16 (1x mode) ¦ 3 x M.2 socket (2242/2260/2280 M.2 slot with key M) ¦ 1 x M.2 socket (2242/2260/2280/22110 M.2 slot with key M) ¦ 1 x M.2 socket (key E)
• storage interfaces
  SATA-600 -connectors: 6 x 7-pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ PCIe 4.0 -connectors: 2 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ SATA -600 / PCIe 4.0 connectors: 2 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5
• interfaces
  1 x HDMI ¦ 1 x DisplayPort ¦ 2 x USB 3.2 Gen 1 ¦ 4 x USB 2.0 ¦ 1 x USB-C 3.2 Gen2x2 ¦ 1 x USB 3.2 Gen 2 ¦ 1 x audio line-out - mini jack plug ¦ 1 x microphone - Mini jack plug ¦ 1 x audio line-out (middle/subwoofer) - mini jack plug ¦ 1 x audio line-out (rear) - mini jack plug ¦ 1 x audio line-in - mini jack plug ¦ 1 x audio line- Out (Side Surround) - mini jack plug ¦ 2 x antenna ¦ 1 x LAN (2.5Gigabit Ethernet) ¦ 1 x PS/2 keyboard/mouse
• Internal interfaces
  4 x USB 2.0 - Header ¦ 4 x USB 3.2 Gen 1 - Header ¦ 1 x USB-C 3.2 Gen 2 - Header ¦ 1 x Audio - Header ¦ 1 x Thunderbolt - Header ¦ 1 x SPI - Header
• power connections
  Main power connector 24-pin, 2 8-pin ATX12V connectors
• BIOS features
  MSI ClickBIOS 5
• hardware features
  Digital PWM, MSI Audio Boost, Debug LED, 6 Layer PCB, MSI Mystic Light, MSI Steel Armor, 2oz Copper PCB, M.2 Shield FROZR, Water Pump Header, MSI Core Boost, Extended Heatsink Design, 14+1+1 Phase Power Design, Surface Mount Technology (SMT), MSI Memory Boost
• Accessories included
  I/O rear panel, WLAN antenna, 3 x M.2 clips
• Cables included
  2 x Serial ATA Cables
• Software included
  Drivers & Utilities, AIDA64 Extreme (60-day trial), MSI Center, Norton 360 Deluxe (60-day trial)
• Labelling
  WEEE, FIPS, FISMA, FCC Part 15 Class B, JIS C 0950, DisplayPort 1.4
• Broad
  12"
• depth
  24.384 cm
