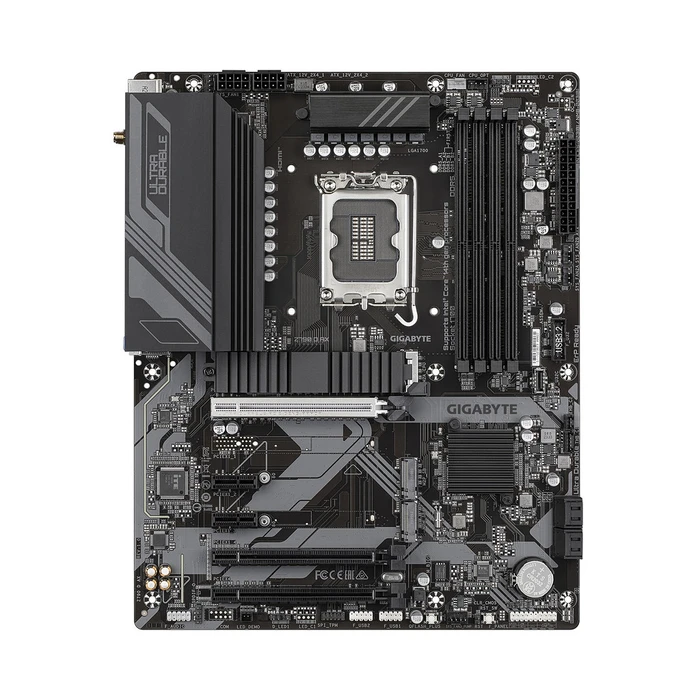

Motherboard Gigabyte Z790 D AX 1.0 ATX LGA1700 Socket Z790

Technical Specifications

• Packaged Quantity
  1
• Installed Qty
  0
• Max Supported Qty
  1
• Form Factor
  ATX
• Chipset Type
  Intel Z790
• Supported RAM Technology
  DDR5 SDRAM
• Supported RAM Integrity Check
  Non-ECC, ECC (operate in non-ECC mode)
• Supported RAM Speed
  5800 MHz (O.C.), 6000 MHz (O.C.), 4800 MHz, 6200 MHz (O.C.), 6400 MHz (O.C.), 6600 MHz (O.C.), 7000 MHz (O.C.), 6800 MHz (O.C.), 4400 MHz, 7200 MHz (O.C.), 5200 MHz, 5600 MHz, 5400 MHz, 7400 MHz (O.C.), 7600 MHz (O.C.)
• Processor Socket
  LGA1700 Socket
• Power Connectors
  24-pin main power connector, 8-pin ATX12V connector
• Supported RAM (Registered or Buffered)
  Unbuffered
• RAM Slots
  4 DIMM slots
• Internal Interfaces
  2 x Thunderbolt - header, 1 x USB-C 3.2 Gen 1 - header, 1 x audio - header, 1 x serial - header, 4 x USB 2.0 - header, 1 x SPDIF out - header, 2 x USB 3.2 Gen 1 - header, 1 x SPI - header
• Features
  Intel Extreme Memory Profiles (XMP), Dual channel memory architecture, Supported ECC modules operate in non-ECC mode
• Max Supported Size
  192 GB
• Type
  Graphics adapter (CPU required)
• Type
  Sound card
• Compliant Standards
  High Definition Audio
• Audio
  High Definition Audio (7.1-channel)
• Network Controller
  Intel AX210
• Network
  2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax, Bluetooth 5.3
• Expansion Slots
  1 x CPU, 1 x PCIe 4.0 x4, 2 x M.2 socket (2280 M.2 Key M slot), 1 x PCIe 5.0 x16, 1 x M.2 socket (2280/22110 M.2 Key M slot), 1 x PCIe 3.0 x16, 4 x DIMM 288-pin, 2 x PCIe 3.0 x1
• Storage Interfaces
  PCIe 4.0 -connectors: 2 x M.2, SATA-600 -connectors: 6 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5, SATA-600 / PCIe 4.0 -connectors: 1 x M.2
• Storage
  Serial ATA-600 (RAID), M.2 socket
• USB / FireWire
  USB 3.2 Gen 1, USB 3.2 Gen 2, USB-C 3.2 Gen2, USB-C 3.2 Gen 1
• Storage Ports
  6 x SATA-600 (RAID), 3 x M.2
• USB / FireWire Ports Configuration (Active)
  1 x USB-C Gen 2 + 1 x USB 3.2 Gen 2 + 4 x USB 3.2 Gen 1 + 2 x USB 2.0
• USB / FireWire Ports Configuration (Headers)
  1 x USB-C Gen 1 + 2 x USB 3.2 Gen 1 + 4 x USB 2.0
• Software Included
  Norton Internet Security (OEM Version), Realtek Gaming LAN Bandwidth Control
• Width
  30,5 cm
• Depth
  24,4 cm
