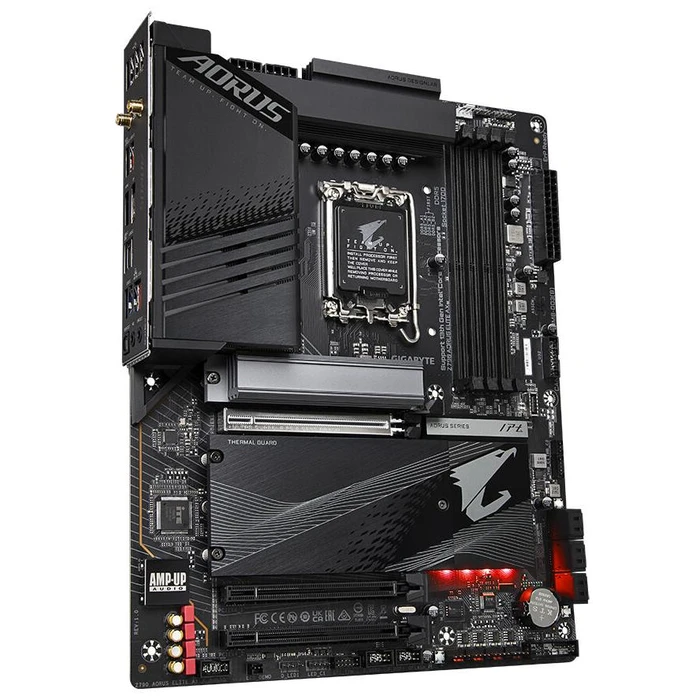

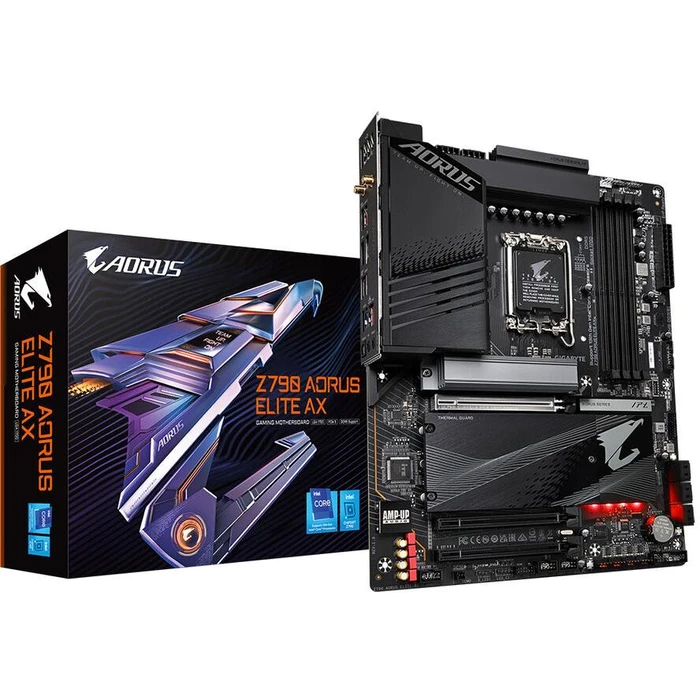

Motherboard Gigabyte Z790 AORUS Elite AX (Z790,S1700,ATX)

Technical Specifications

• product type
  Motherboard - ATX
• chipset
  Intel Z790
• processor socket
  LGA1700 socket
• Max. processors
  1
• Compatible processors
  (supports 12th and 13th generation Intel Core / Pentium Gold / Celeron)
• Max size
  128GB
• technology
  DDR5
• bus clock
  5200MHz(OC), 5400MHz(OC), 5800MHz(OC), 6000MHz(OC), 4000MHz, 4800MHz, 6200MHz(OC), 6400MHz(OC), 6600MHz(OC), 7000MHz (OC), 6800MHz (OC), 7200MHz (OC), 7400MHz (OC), 7600MHz (OC)
• Supported RAM integrity check
  Non-ECC, ECC (operation in non-ECC mode)
• Registered or buffered
  Unbuffered
• particularities
  Dual-channel memory architecture, Intel Extreme Memory Profiles (XMP), supported ECC modules running in ECC mode
• Type
  HD Audio (8-channel)
• compatibility
  High definition audio
• network interfaces
  2.5 Gigabit Ethernet, Bluetooth 5.3, 802.11a/b/g/n/ac/ax (Wi-Fi 6E)
• expansion slots
  1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 5.0 x16 ¦ 1 x PCIe 4.0 x16 ¦ 1 x PCIe 3.0 x16 ¦ 4 x M.2 socket (2280/22.110 M.2 Key M Slot)
• storage interfaces
  SATA-600 -connectors: 6 x 7-pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ PCIe 4.0 -connectors: 3 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ SATA -600 / PCIe 4.0 connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5
• interfaces
  1 x DisplayPort ¦ 1 x HDMI ¦ 1 x USB-C 3.2 Gen2x2 ¦ 2 x USB 3.2 Gen 2 ¦ 3 x USB 3.2 Gen 1 ¦ 4 x USB 2.0 ¦ 1 x audio line-out - mini jack plug ¦ 1 x microphone - Mini jack plug ¦ 2 x antenna ¦ 1 x SPDIF output
• Internal interfaces
  2 x USB 3.2 Gen 1 headers ¦ 1 x USB-C 3.2 Gen 2 headers ¦ 4 x USB 2.0 headers ¦ 2 x Thunderbolt headers ¦ 1 x SPI headers ¦ 1 x Audio headers
• power connections
  Main power connector 24 pin, ATX12V connector 8 pin
• BIOS type
  AMI
• BIOS features
  WfM 2.0 support, UEFI BIOS, SMBIOS 2.7 support, DMI 2.7 support, ACPI 5.0 support, PnP 1.0a support
• hardware monitoring
  System voltage, water cooling flow rate, fan failure warning, fan control
• hardware features
  Q-Flash, Ultra Durable, 2x Copper PCB, 6 Layer PCB, Q-Flash Plus, RGB FUSION, Ultra Durable PCIe Armor, Water Pump Header, Pre-Assembled I/O Shield, Solid Pin Power Connectors, DIY Friendly Design, GIGABYTE Smart Fan 6, MultiKey, M.2 Thermal Guard III, 16+1+2 Phase Power Design, 60A Smart Power Stage
• Accessories included
  External antenna
• Cables included
  2 x Serial ATA Cables
• Software included
  Norton Internet Security
• Labelling
  WEEE, EU RoHS, HDCP 2.3, UKCA, FCC Part 15 Subpart B
• Broad
  12"
• depth
  24.4 cm
• packaging details
  box
