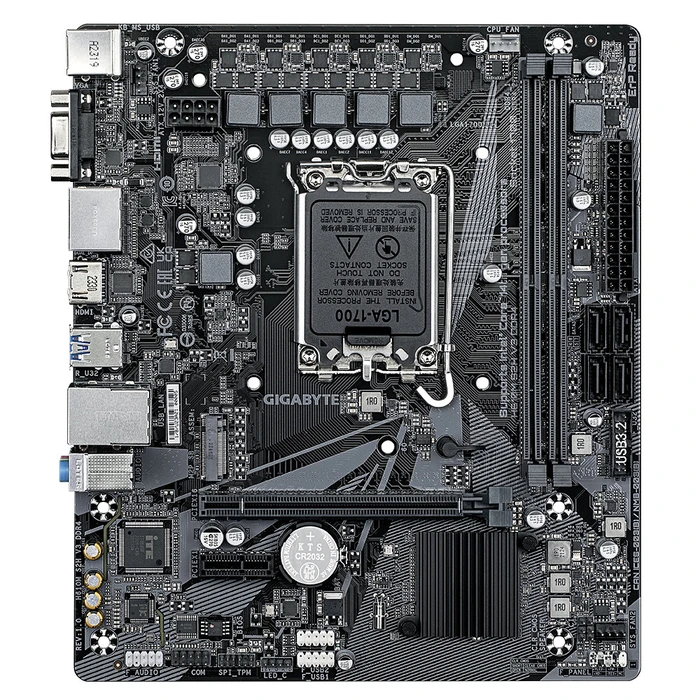

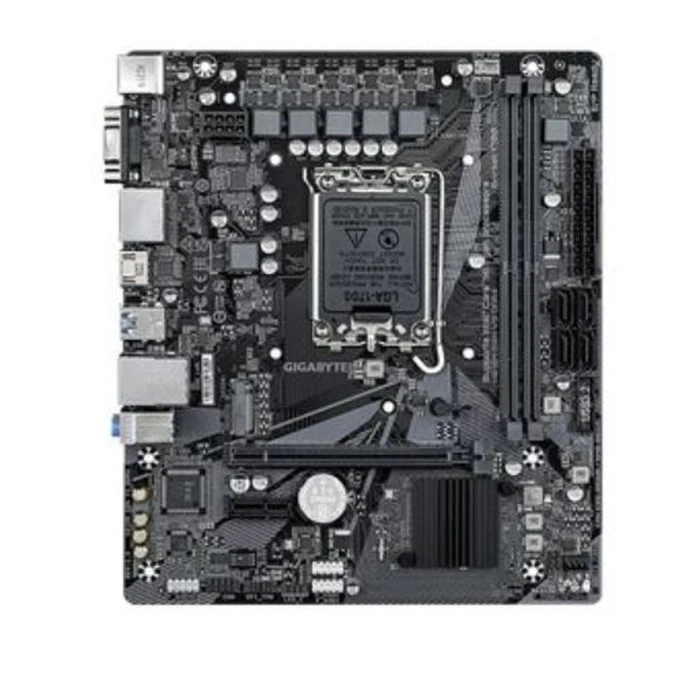

Motherboard Gigabyte H610M S2H V3 DDR4 1.0 micro ATX LGA1700 Socket H610

Technical Specifications

• Packaged Quantity
  1
• Installed Qty
  0
• Max Supported Qty
  1
• Form Factor
  Micro ATX
• Chipset Type
  Intel H610
• Supported RAM Technology
  DDR4 SDRAM
• Supported RAM Integrity Check
  Non-ECC, ECC (operate in non-ECC mode)
• Supported RAM Speed
  3200 MHz, 2400 MHz, 2133 MHz, 3000 MHz, 2666 MHz, 2933 MHz
• Processor Socket
  LGA1700 Socket
• Power Connectors
  24-pin main power connector, 8-pin ATX12V connector
• Supported RAM (Registered or Buffered)
  Unbuffered
• RAM Slots
  2 DIMM slots
• Internal Interfaces
  1 x audio - header, 1 x serial - header, 4 x USB 2.0 - header, 1 x speaker - header, 2 x USB 3.2 Gen 1 - header, 1 x SPI - header
• Features
  Intel Extreme Memory Profiles (XMP), Dual channel memory architecture, Supported ECC modules operate in non-ECC mode
• Max Supported Size
  64 GB
• Type
  Graphics adapter (CPU required)
• Type
  Sound card
• Compliant Standards
  High Definition Audio
• Audio
  High Definition Audio (8-channel)
• Network
  Gigabit Ethernet
• Expansion Slots
  1 x CPU, 1 x M.2 socket (2260/2280 M.2 Key M slot), 2 x DIMM 288-pin, 1 x PCIe 3.0 x1, 1 x PCIe 4.0 x16
• Storage Interfaces
  SATA-600 -connectors: 4 x 7pin Serial ATA, PCIe 3.0 -connectors: 1 x M.2
• Storage
  Serial ATA-600 (RAID), M.2 socket
• USB / FireWire
  USB 3.2 Gen 1
• Storage Ports
  4 x SATA-600 (RAID), 1 x M.2
• USB / FireWire Ports Configuration (Active)
  2 x USB 3.2 Gen 1 + 4 x USB 2.0
• USB / FireWire Ports Configuration (Headers)
  2 x USB 3.2 Gen 1 + 4 x USB 2.0
• Software Included
  Norton Internet Security (OEM Version)
• Width
  23 cm
• Depth
  19,3 cm
