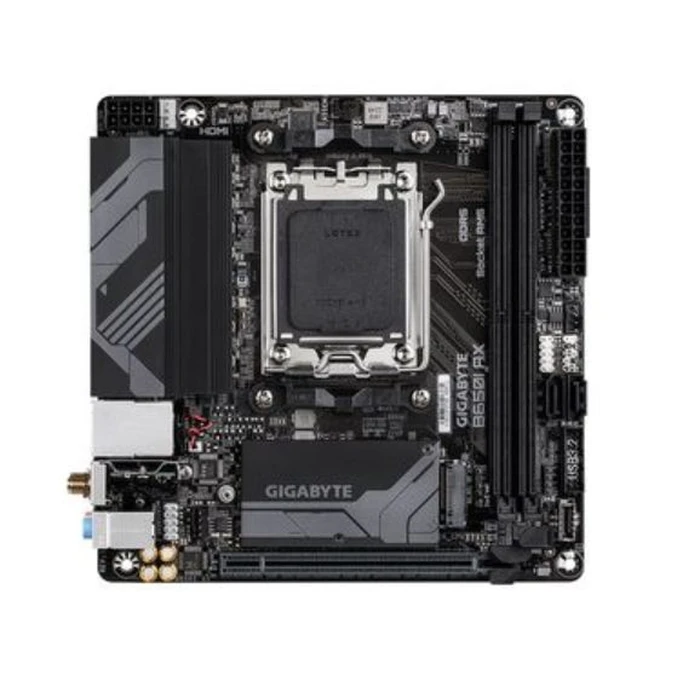

Motherboard Gigabyte B650I AX 1.0 mini ITX Socket AM5 AMD B650

Technical Specifications

• Packaged Quantity
  1
• Installed Qty
  0
• Max Supported Qty
  1
• Form Factor
  Mini ITX
• Compatible Processors
  Ryzen
• Chipset Type
  AMD B650
• Supported RAM Technology
  DDR5 SDRAM
• Supported RAM Integrity Check
  Non-ECC
• Supported RAM Speed
  5600 MHz (O.C.), 6000 MHz (O.C.), 4800 MHz, 6200 MHz (O.C.), 6400 MHz (O.C.), 4400 MHz, 5200 MHz
• Processor Socket
  Socket AM5
• Power Connectors
  24-pin main power connector, 8-pin ATX12V connector
• Supported RAM (Registered or Buffered)
  Unbuffered
• RAM Slots
  2 DIMM slots
• Internal Interfaces
  1 x USB-C 3.2 Gen 1 - header, 1 x audio - header, 2 x USB 2.0 - header, 1 x speaker - header, 2 x USB 3.2 Gen 1 - header
• Features
  AMD EXPO technology, Intel Extreme Memory Profiles (XMP), Dual channel memory architecture
• Max Supported Size
  96 GB
• Type
  Graphics adapter (CPU required)
• Type
  Sound card
• Compliant Standards
  High Definition Audio
• Audio
  High Definition Audio (8-channel)
• Network Controller
  Realtek RTL8852CE
• Network
  2.5 Gigabit Ethernet, Bluetooth 5.3, 802.11a/b/g/n/ac/ax (Wi-Fi 6E)
• Expansion Slots
  1 x CPU, 1 x M.2 socket (2280 M.2 Key M slot), 2 x DIMM 288-pin, 1 x PCIe 4.0 x16
• Storage Interfaces
  PCIe 4.0 -connectors: 1 x M.2 - RAID 0 / RAID 1, SATA-600 -connectors: 2 x 7pin Serial ATA - RAID 0 / RAID 1
• Storage
  Serial ATA-600 (RAID), M.2 socket
• USB / FireWire
  USB 3.2 Gen 1, USB 3.2 Gen 2, USB-C 3.2 Gen 1
• Storage Ports
  2 x SATA-600 (RAID), 1 x M.2
• USB / FireWire Ports Configuration (Active)
  1 x USB-C 3.2 Gen 1 + 1 x USB 3.2 Gen 2 + 1 x USB 3.2 Gen 1 + 3 x USB 2.0
• USB / FireWire Ports Configuration (Headers)
  1 x USB-C 3.2 Gen 1 + 2 x USB 3.2 Gen 1 + 2 x USB 2.0
• Software Included
  GIGABYTE Control Center, LAN manager, Norton Internet Security (OEM Version)
• Width
  17 cm
• Depth
  17 cm
