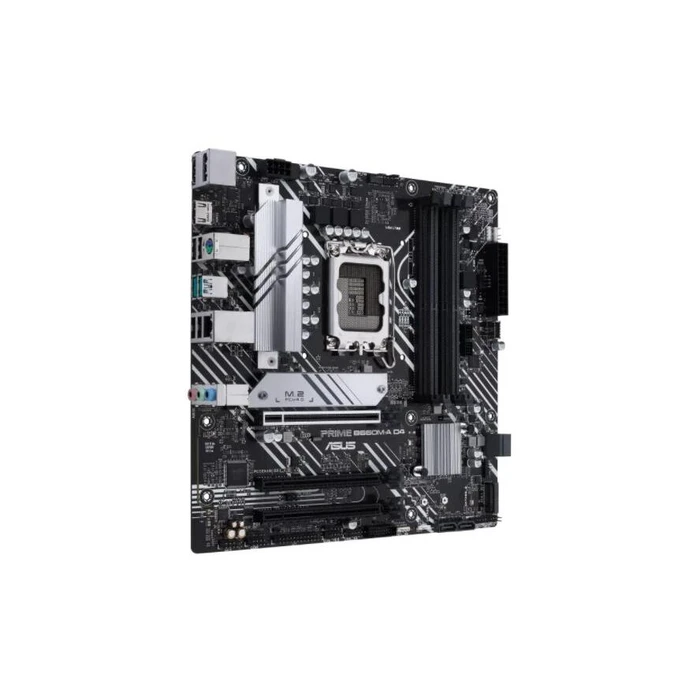

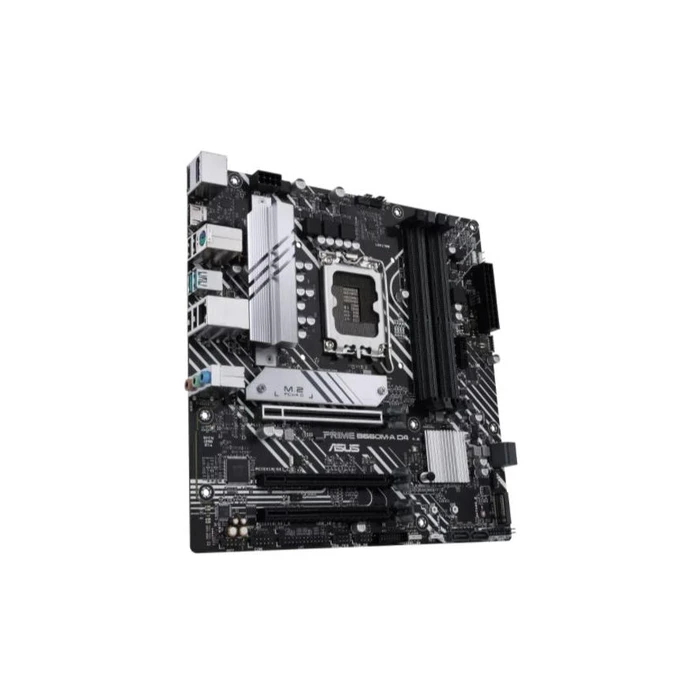

Motherboard Asus PRIME B660M-A D4-CSM (Intel,1700,DDR4,mATX)

Technical Specifications

• BIOS type
  UEFI AMI
• BIOS memory size
  128 Mbit
• processor manufacturer
  intel
• processor socket
  LGA 1700
• Compatible processors
  Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold
• Maximum number of SMP processors
  1
• Supported memory
  DDR4 SDRAM
• Number of memory slots
  4
• memory type
  DIMM
• memory channels
  dual channel
• Without ECC
  yes
• Supported memory speed
  2133,2400,2666,2800,2933,3000,3200,3333,3400,3466,3600,3733,4000,4266,4400,4600,4800,5000,5333MHz
• RAM memory maximum
  128GB
• Supported storage drives
  HDD & SSD
• Supported storage drive interfaces
  M.2, SATA III
• Number of USB 2.0 interfaces
  3
• USB 3.2 Gen 1 (3.1 Gen 1) ports
  3
• SATA III connectors
  4
• S/PDIF out connector
  yes
• Front panel audio connector
  yes
• ATX power connector (24-pin)
  yes
• Power Fan Connector
  yes
• CPU fan connector
  yes
• Number of chassis fan plugs
  2
• EPS power connector (8-pin)
  yes
• TPM connector
  yes
• RGB LED header
  yes
• Number of USB 2.0 ports
  4
• USB 3.2 Gen 1 (3.1 Gen 1) Number of Type-C ports
  2
• Number of Ethernet LAN ports (RJ-45)
  1
• Number of PS/2 connections
  1
• Number of HDMI ports
  2
• Number of DisplayPort connections
  1
• Built-in Ethernet port
  yes
• Ethernet interfaces type
  gigabit ethernet
• WIRELESS INTERNET ACCESS
  no
• component for
  personal computer
• motherboard form factor
  micro ATX
• Motherboard chipset family
  intel
• motherboard chipset
  Intel B660
• audio chip
  Realtek ALC897
• audio channels
  7.1 channels
• cooling
  Passive
• Supports Windows operating systems
  Windows 10, Windows 11
• PCI Express x16 slots (Gen 4.x)
  1
• PCI Express x16 (Gen 3.x) connectors
  2
• Number of M.2 (M) slots
  2
• Supplied cables
  SATA
• Broad
  244mm
• depth
  244mm
