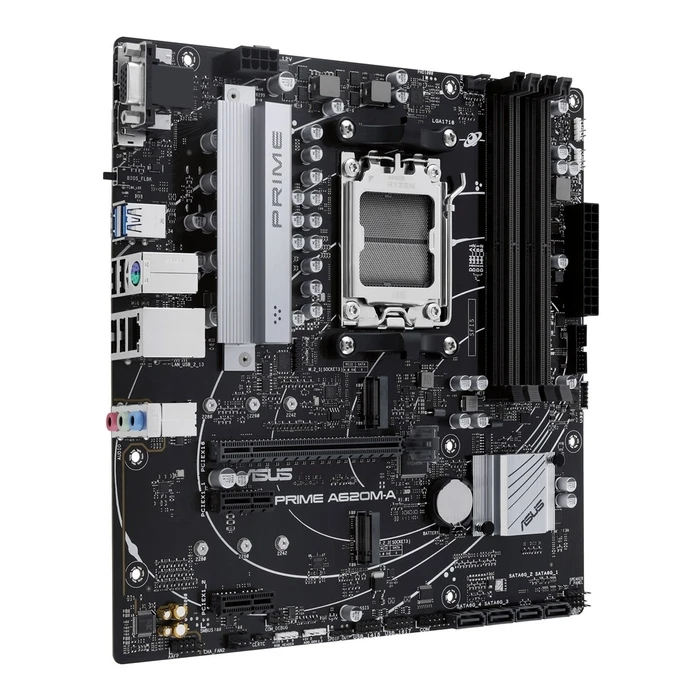

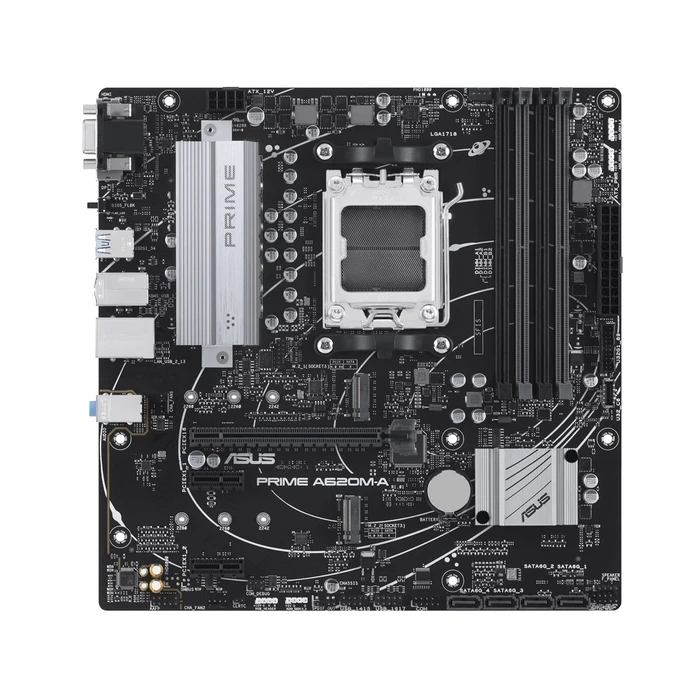

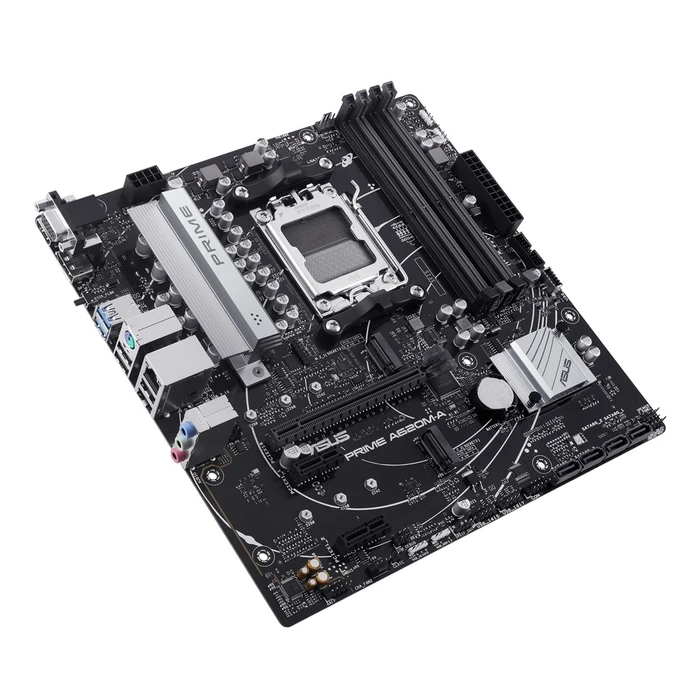

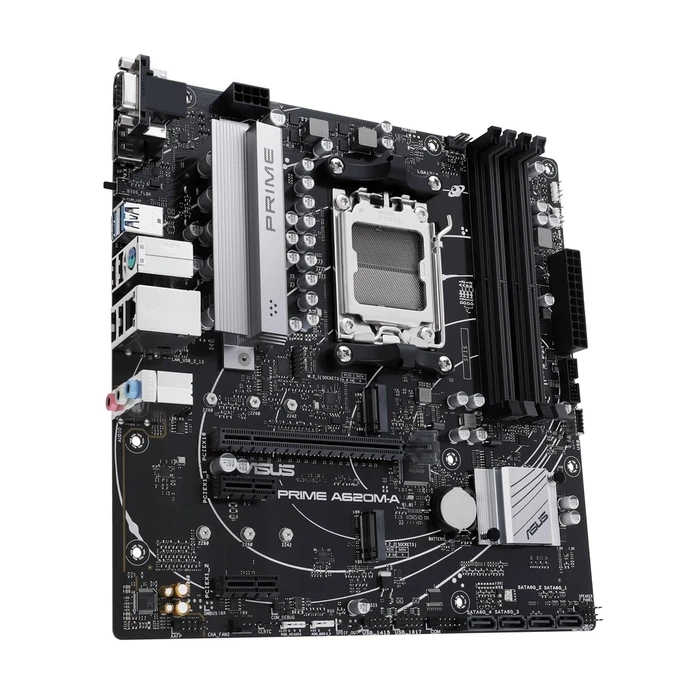

Motherboard Asus PRIME A620M-A-CSM AMD A620 Socket AM5 micro ATX

Technical Specifications

• Processor manufacturer
  AMD
• Compatible processor series
  AMD Ryzen 9 7th Gen
• Supported processor sockets
  Socket AM5
• Processor socket
  Socket AM5
• Parallel processing technology support
  Not supported
• Motherboard chipset
  AMD A620
• Motherboard chipset family
  AMD
• Motherboard form factor
  micro ATX
• Windows operating systems supported
  Windows 10 x64
• Audio output channels
  7.1 channels
• Supported memory clock speeds
  6200
• Maximum internal memory
  128 GB
• Memory channels
  Dual-channel
• Unbuffered memory
  Y
• Supported memory clock speed (max)
  6400 MHz
• Memory slots type
  DIMM
• Supported memory types
  DDR5-SDRAM
• Number of memory slots
  4
• Depth
  244 mm
• Width
  244 mm
• Height
  43 mm
• Bluetooth
  Y
• Wi-Fi
  Y
• Ethernet LAN
  Y
• Bluetooth version
  5.0
• Ethernet interface type
  Gigabit Ethernet
• ATX Power connector (24-pin)
  Y
• Number of SATA III connectors
  4
• Number of COM connectors
  1
• S/PDIF out connector
  Y
• CPU fan connector
  Y
• USB 3.2 Gen 1 (3.1 Gen 1) connectors
  2
• Number of chassis fan connectors
  2
• Front panel connector
  Y
• EPS power connector (8-pin)
  Y
• Front panel audio connector
  Y
• TPM connector
  Y
• USB 2.0 connectors
  2
• RGB LED pin header
  Y
• 12V power connector
  Y
• BIOS type
  UEFI AMI
• Package weight
  1.36 kg
• Package height
  67.5 mm
• Package depth
  275 mm
• Package width
  275 mm
• Cables included
  SATA
• RAID levels
  0
• Supported storage drive types
  HDD & SSD
• Supported storage drive interfaces
  PCI Express 4.0, SATA
• Number of storage drives supported
  6
• RAID support
  Y
• Number of HDDs supported
  4
• Headphone outputs
  1
• Ethernet LAN (RJ-45) ports
  1
• Microphone in
  Y
• PS/2 ports quantity
  1
• USB 2.0 ports quantity
  4
• DisplayPorts quantity
  1
• VGA (D-Sub) ports quantity
  1
• HDMI ports quantity
  1
• USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
  2
• Line-in
  Y
• Number of M.2 (M) slots
  2
• PCI Express x1 (Gen 3.x) slots
  2
• PCI Express x16 (Gen 4.x) slots
  1
