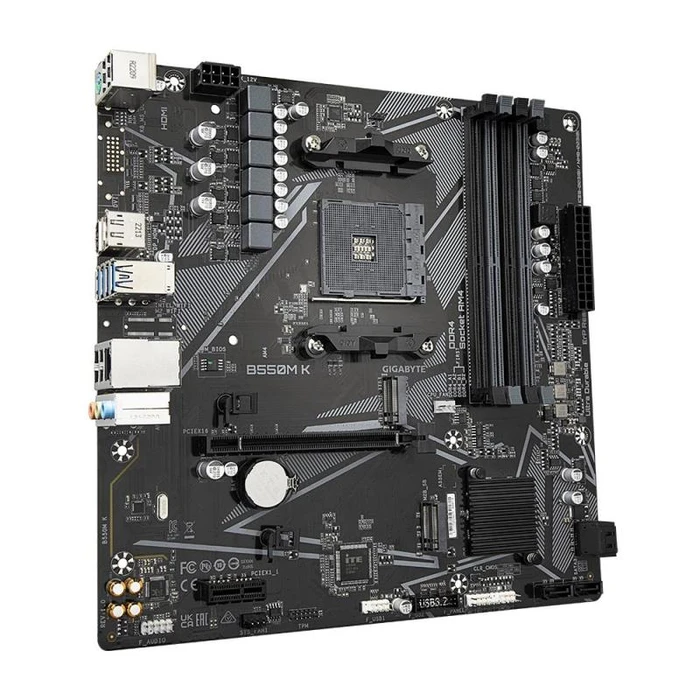

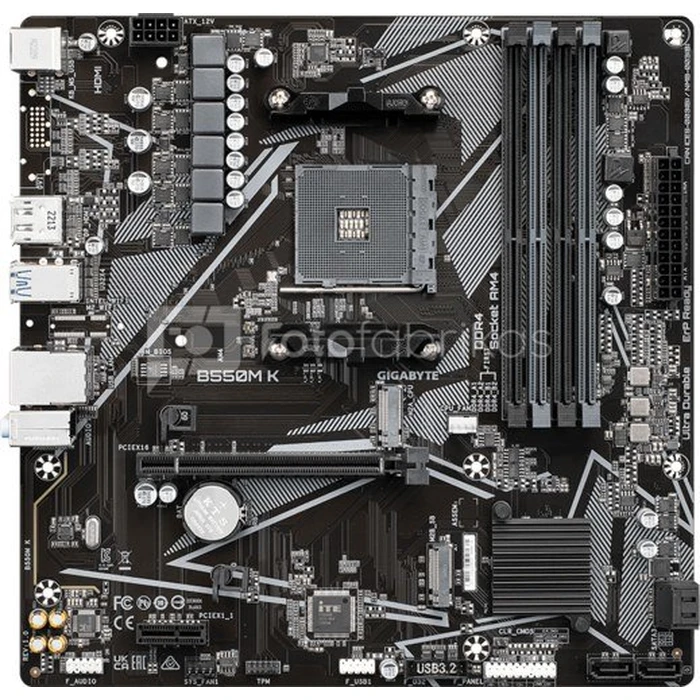

Μητρική Κάρτα Gigabyte B550M K - 1.0 - micro ATX - Socket AM4 - AMD B550

Technical Specifications

• pack quantity
  1
• Installed number
  0
• Max number supported
  1
• form factor
  Micro ATX
• Compatible processors
  Ryzen
• chipset
  AMD B550
• Supported RAM technology
  DDR4 SDRAM
• Supported RAM integrity check
  Non-ECC, ETC
• Supported RAM speed
  3200 MHz, 4733 MHz (O.C.), 2400 MHz, 2133 MHz, 2667 MHz, 2933 MHz, 3333 MHz (O.C.), 3600 MHz (O.C.), 3866 MHz (O.C.), 4000 MHz (O.C.), 4133 MHz (O.C.), 4400 MHz (O.C.), 4600 MHz (O.C.)
• processor socket
  Socket AM4
• power connections
  Main power connector 24 pin, ATX12V connector 8 pin
• Supported RAM memory (registered or buffered)
  Unbuffered
• RAM slots
  4 DIMM slots
• Internal interfaces
  1 x Audio - Stiftleiste, 2 x USB 2.0 - Stiftleiste, 2 x USB 3.2 Gen 1 - Stiftleiste, 1 x SPI - Stiftleiste
• performance characteristics
  Intel Extreme Memory Profiles (XMP), dual-channel memory architecture
• Max supported size
  128 GB
• Typ
  Graphics adapter (CPU required)
• Typ
  sound card
• compatibility
  High-Definition-Audio
• Audio
  High Definition Audio (8-Kanal)
• network
  Gigabit Ethernet
• expansion slots
  1 x CPU, 1 x M.2 socket (2280 M.2 Key M Steckplatz), 1 x PCIe 4.0 x16 (PCIe 4.0 x16 Mode (Ryzen 5000 Series / 3000 Series CPUs); PCIe 3.0 x16 Mode (Ryzen 5000 G-Series / 4000 G-Series CPUs)), 4 x DIMM 288-polig, 1 x PCIe 3.0 x1
• storage interfaces
  SATA-600 connectors: 4 x 7-pin Serial ATA - RAID 0 / RAID 1 / RAID 10, SATA-600 / PCIe 4.0 connectors: 1 x M.2
• Storage
  Serial ATA-600 (RAID), M.2-Socket
• USB / FireWire
  USB 3.2 Gen 1
• mass storage interfaces
  4 x SATA-600 (RAID), 2 x M.2
• USB/FireWire port configuration (active)
  4 x USB 3.2 Gen 1 + 4 x USB 2.0
• USB/FireWire port configuration (headers)
  2 x USB 3.2 Gen 1 + 2 x USB 2.0
• software incl.
  EasyTune, Xpress Install, Norton Internet Security, @BIOS, GIGABYTE Smart Backup
• Broad
  24,4 cm
