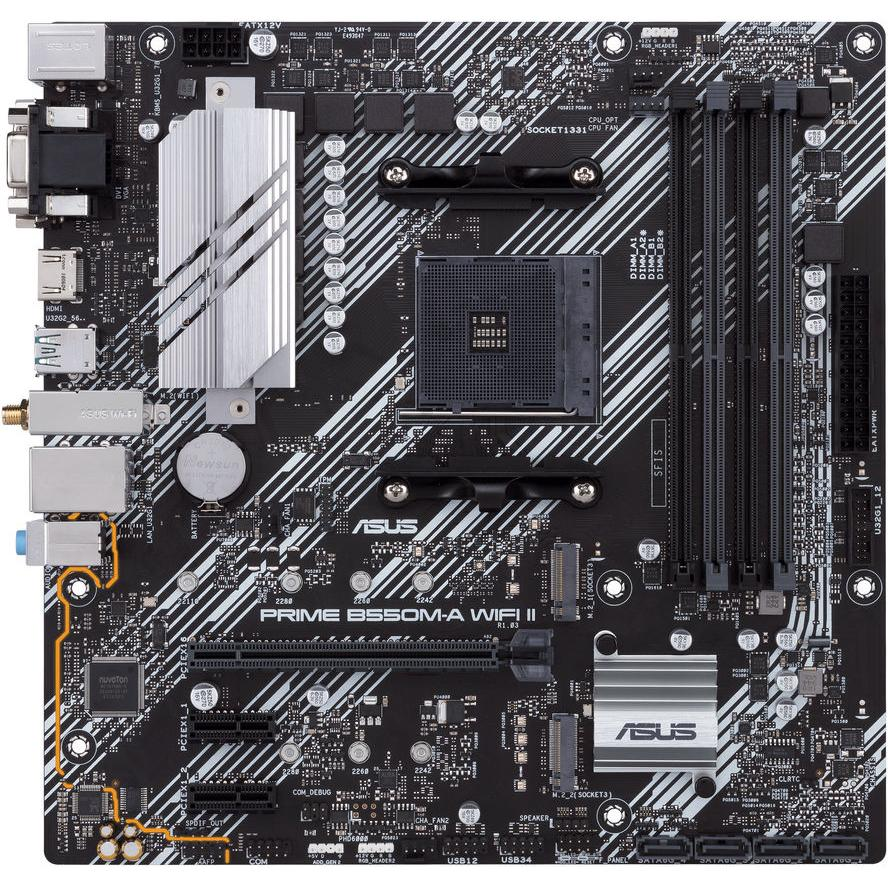

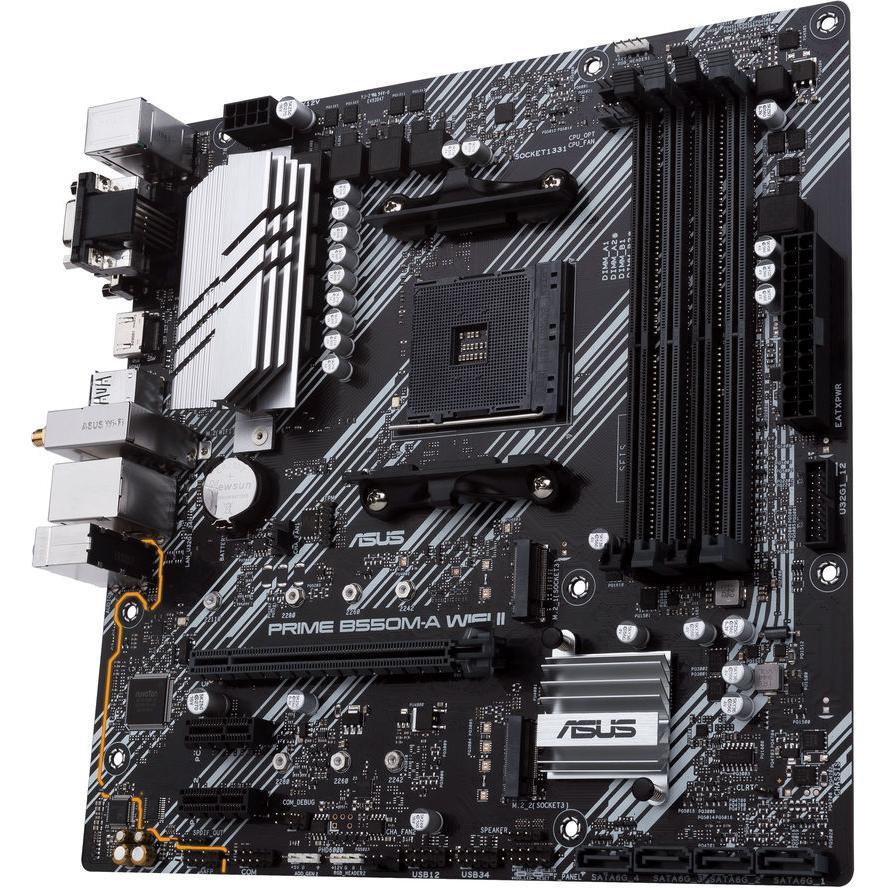

Motherboard Asus PRIME B550M-A (WI-FI II) (AMD,AM4,DDR4,mATX)

Technical Specifications

• product type
  Motherboard - micro ATX
• chipset
  AMD B550
• processor socket
  Socket AM4
• Max. processors
  1
• Compatible processors
  Ryzen (supports Ryzen 3000 Series/4000 G-Series/5000 Series/5000 G-Series)
• Max size
  128GB
• technology
  DDR4
• bus clock
  2400MHz, 2133MHz, 2800MHz, 3000MHz, 2666MHz, 2933MHz, 3400MHz(OC), 3333MHz(OC), 3466MHz(OC), 3733MHz(OC), 3600MHz(OC), 3866MHz (OC), 4000MHz (OC), 4133MHz (OC), 4400MHz (OC), 4266MHz (OC), 4200MHz (OC), 4333MHz (OC), 4600MHz (OC), 4800MHz (OC ), 3200MHz, 4866MHz(OC), 4466MHz(OC)
• Supported RAM integrity check
  Non-ECC, ECC
• Registered or buffered
  Unbuffered
• particularities
  Two channel memory architecture
• Type
  HD Audio (8-channel)
• compatibility
  High definition audio
• network interfaces
  Gigabit Ethernet, 802.11a/b/g/n/ac/ax, Bluetooth 5.2
• expansion slots
  1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 4.0 x16 (PCIe 4.0 x16 Mode (Ryzen 5000 Series / 3000 Series CPUs); PCIe 3.0 x16 Mode (Ryzen 5000 G-Series / 4000 G-Series CPUs)) ¦ 2x PCIe 3.0 x1
• storage interfaces
  SATA-600 connectors: 4 x 7-pin Serial ATA - RAID 0 / RAID 1 / RAID 10 ¦ SATA-600 / PCIe 4.0 - connectors: 1 x M.2 ¦ SATA-600 / PCIe 3.0 - connectors: 1 x M .2
• interfaces
  1 x VGA ¦ 1 x DVI-D ¦ 1 x LAN (Gigabit Ethernet) ¦ 4 x USB 3.2 Gen 1 ¦ 2 x USB 3.2 Gen 2 ¦ 1 x audio line-in - mini jack plug ¦ 1 x audio line-out - Mini Jack ¦ 1 x Microphone - Mini Jack ¦ 1 x PS/2 Keyboard/Mouse ¦ 1 x HDMI
• Internal interfaces
  4 x USB 2.0 - Header ¦ 2 x USB 3.2 Gen 1 - Header ¦ 1 x SPDIF Out - Header ¦ 1 x Audio - Header ¦ 1 x Serial - Header ¦ 1 x Speaker - Header
• power connections
  Main power connector 24 pin, ATX12V connector 8 pin
• BIOS type
  AMI
• BIOS features
  UEFI BIOS, ASUS EZ Flash 3
• Sleep/Wake up
  Wake On LAN (WOL), Wake On PME
• hardware features
  Jack Retasking, ASUS Q-Design, ASUS TurboV EVO, Q-DIMM, ASUS EZ DIY, Q-Slot, CrashFree BIOS 3, Audio Jack Detection Technology, ASUS EPU (Energy Processing Unit), ASUS DIGI+ VRM, Preboot eXecution Environment (PXE ), ASUS Stainless Steel Back I/O, ASUS Fan Xpert 2+, LANGuard, ASUS Surge Protection, ASUS 5X Protection III, ASUS SafeSlot Core, ASUS Aura Sync, Armory Crate
• Accessories included
  1 M.2 screw, I/O back cover, ASUS Wi-Fi movable antenna
• Cables included
  2 x Serial ATA Cables
• Software included
  Drivers & Utilities, ASUS AI Charger, ASUS CPU-Z, ASUS AI Suite III, ASUS EZ Flash 3, DAEMON Tools, WinRAR, Norton AntiVirus (trial version), ASUS AURA Creator
• broad
  24.4 cm
• depth
  24.4 cm
