Sku: 1111054277

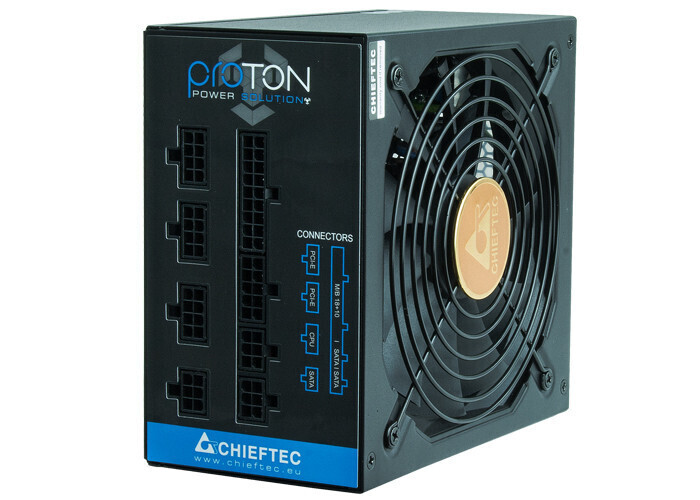

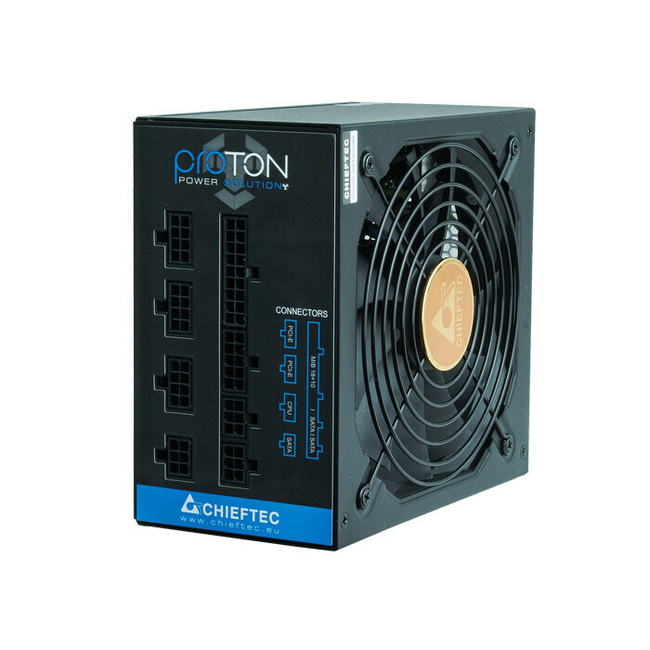

Τροφοδοτικό 850W Chieftec PROTON BDF-850C

201,95 €

Up to 36 instalments by credit card x 6,31€ / month

Installment plan	Amount / month
2	103,86 €
4	52,21 €
6	34,99 €
8	26,38 €
10	21,22 €
12	17,77 €
18	12,04 €
24	9,17 €
36	6,31 €

...More

Product Availability

Είσαι επαγγελματίας; Μπες στο

για καλύτερη τιμή!

Need help?

Συμπλήρωσε τα στοιχεία σου για να σε καλέσουμε άμεσα.

Call us now!

Shop now

Methods of Pickup/Shipment

Pickup from the store:

El. Ave. Venizelou 73 (formerly Theseos), Kallithea
Pick up from a BoxNow machine:

With BoxNow you can pick up your parcel from an Automatic Pickup Machine that is near you at all hours of the day 24/7. Possibility of cash on delivery with an additional fee of €1
Shipping to your location (Calculate shipping):
Ο κωδικός ΤΚ που πληκτρολογήσατε δεν ισχύει

Detailed Description

Description

Mit der aktuellen PROTON Serie steigt CHIEFTEC in die Double Forward Technologie ein. Die Basis hierfür sind spezielle, hochqualitative Kondensatoren. Diese Double Forward Schaltnetzteile generieren hierdurch einen bestmöglichen Wirkungsgrad. Die Vorteile liegen klar auf der Hand, sie sparen Energie in Kombination mit einer viel höheren Effizienz und einer soliden Leistung, die wiederum eine höhere Langlebigkeit der installierten Komponenten gewährleistet. Die Leistungsfähigkeit der PROTON Netzteile ist mit 80PLUS BRONZE zertifiziert und entspricht somit allen Anforderungen, um alle ENERGY STAR 5,0 und höhere Normen zu erfüllen.

Product Description: Chieftec Proton Series BDF-850C - power supply - 850 Watt
Device Type: Power supply - active Power Factor Correction (PFC) - internal
Specification Compliance: ATX12V 2.3
80 PLUS Certification: 80 PLUS Bronze
Input Voltage: AC 115-230 V
Output Voltage: +3.3, +5, ±12 V
Power Capacity: 850 Watt
Output connectors: 1 x power 24 pin ATX with detachable 4 pin section ¦ 9 x 15 pin Serial ATA power ¦ 3 x 4 PIN internal power ¦ 2 x power 8 pin EPS12V with detachable 4 pin ATX12V section ¦ 4 x 8 pin PCI Express power with detachable 2 pin section ¦ 1 x 4 PIN mini-power connector
Cooling System: 140 mm fan
Dimensions (WxDxH): 15 cm x 14 cm x 8.7 cm
Environmental Standards: ENERGY STAR
Manufacturer Warranty: 2 years warranty

Technical description

General

Device Type: Power supply - active Power Factor Correction (PFC) - internal
Specification Compliance: ATX12V 2.3

Power Device

Input Voltage: AC 115-230 V
Frequency Required: 50 - 60 Hz
Power Output Connectors Details: 1 x power 24 pin ATX with detachable 4 pin section ¦ 9 x 15 pin Serial ATA power ¦ 3 x 4 PIN internal power ¦ 2 x power 8 pin EPS12V with detachable 4 pin ATX12V section ¦ 4 x 8 pin PCI Express power with detachable 2 pin section ¦ 1 x 4 PIN mini-power connector
Output Voltage: +3.3, +5, ±12 V
Power Capacity: 850 Watt
Output Current: +5V - 22 A ¦ +3.3V - 22 A ¦ +12V1 - 70.5 A ¦ -12V - 0.5 A ¦ +5VSB - 3 A
Efficiency: 85%
Power Factor (PF): 0.9
80 PLUS Certification: 80 PLUS Bronze

Miscellaneous

Cooling System: 140 mm fan
Features: Overheat protection, over current protection, over voltage protection, overload protection, undervoltage protection, short-circuit protection, DC-DC technology, fan speed control
Compliant Standards: TUV, CB, RoHS, ERP

Environmental Standards

ENERGY STAR: Yes

Manufacturer Warranty

Service & Support: Limited warranty - 2 years

Dimensions & Weight

Width: 15 cm
Depth: 14 cm
Height: 8.7 cm
