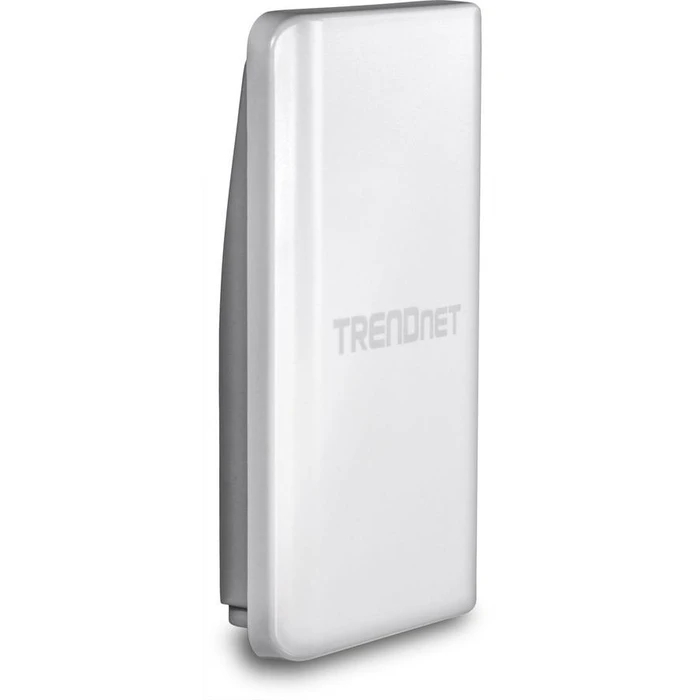

Access Point TrendNet N300 2.4GHz 10dBi PoE (IP66)

Technical Specifications

• Supported security algorithms
  HTTPS,SSID,WDS,WPA-PSK,WPA2,WPA2-PSK,WPA2-RADIUS
• MAC address filtering
  yes
• IP address filter
  yes
• Features Service Set Identifier (SSID)
  SSID broadcast on/off
• Number of SSID support
  8th
• Number of Ethernet LAN ports (RJ-45)
  1
• DC connection
  yes
• Power over Ethernet (PoE)
  yes
• AC input voltage
  100 - 220V
• input current
  0.6A
• AC input frequency
  50/60Hz
• output voltage
  48 v
• output current
  0.5A
• Power consumption (max.)
  22 w
• placement
  rod, wall
• International degree of protection (IP code)
  IP67
• reset button
  yes
• LED indicators
  yes
• certification
  CE, FCC
• Built-in
  yes
• antenna functions
  Integrated antenna
• number of antennas
  1
• Antenna gain level (max)
  10dBi
• 2.4GHz
  yes
• 5GHz
  no
• Maximum data transfer rate
  300Mbps
• Ethernet LAN data transfer rates
  10,100Mbps
• bandwidth
  2.4GHz
• mesh standard
  IEEE 802.11b,IEEE 802.11d,IEEE 802.11e,IEEE 802.11g,IEEE 802.11h,IEEE 802.11i,IEEE 802.11n,IEEE 802.1D,IEEE 802.1Q,IEEE 802.1p,IEEE 802.1x,IEEE 802.3u
• spread spectrum method
  DSSS
• modulation
  16-QAM,64-QAM,BPSK,CCK,DQPSK,DSSS,OFDM,QPSK
• Quality of Service (QoS) support
  yes
• operating temperature range
  -30 - 60?
• Waterproof cable set included
  yes
• broad
  125mm
• depth
  54mm
• height
  218mm
• Weight
  424g
