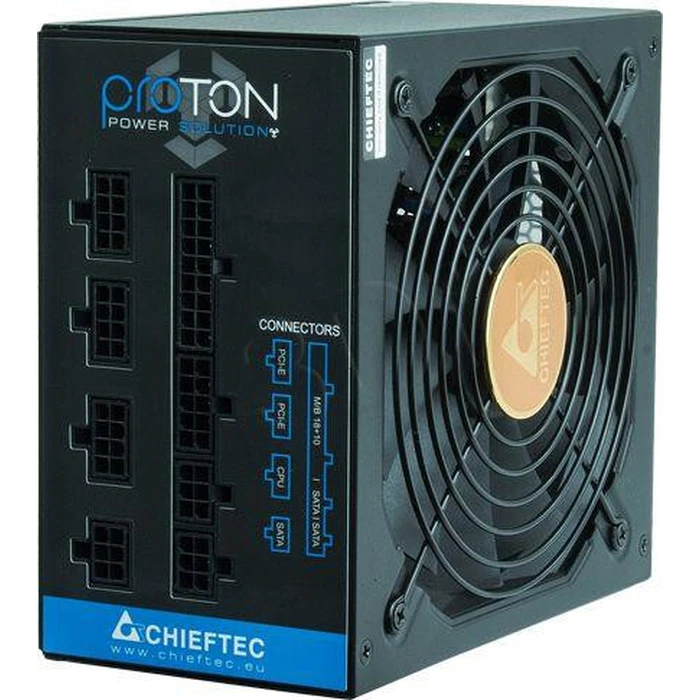

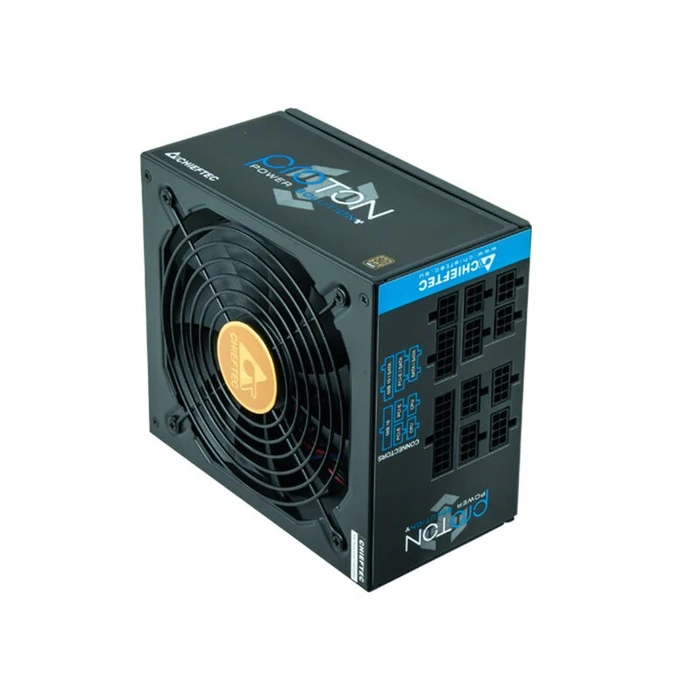

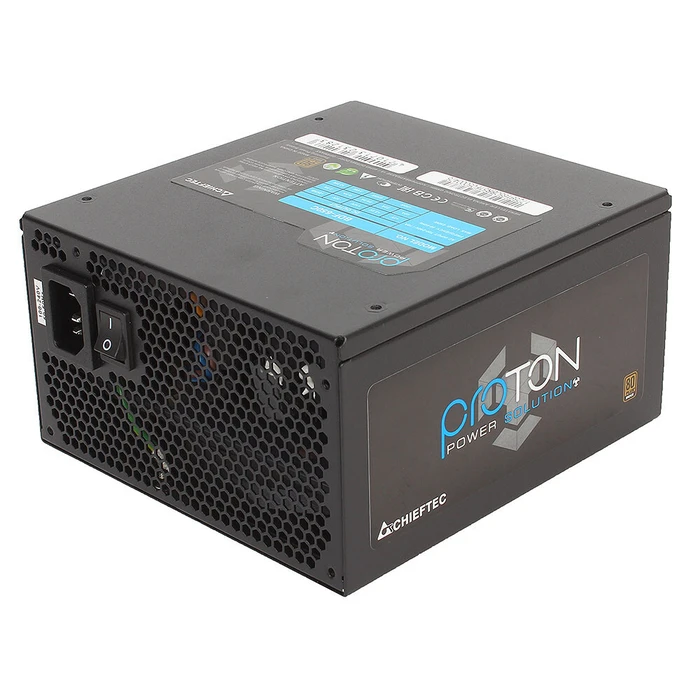

Τροφοδοτικό 1000W Chieftec Proton BDF-1000C

Technical Specifications

• Device Type
  Power supply - active Power Factor Correction (PFC) - internal
• Specification Compliance
  ATX12V 2.3
• PSU Form Factor
  ATX
• Input Voltage
  AC 115-230 V
• Frequency Required
  50 - 60 Hz
• Power Output Connectors Details
  1 x power 24 pin ATX with detachable 4 pin section ¦ 9 x 15 pin Serial ATA power ¦ 3 x 4 PIN internal power ¦ 2 x power 8 pin EPS12V with detachable 4 pin ATX12V section ¦ 6 x 8 pin PCI Express power with detachable 2 pin section ¦ 1 x 4 PIN mini-power connector
• Output Voltage
  +3.3, +5, ±12 V
• Power Capacity
  1000 Watt
• Output Current
  +5V - 23 A ¦ +3.3V - 23 A ¦ +12V1 - 83 A ¦ -12V - 0.3 A ¦ +5VSB - 3 A
• Efficiency
  85%
• Power Factor (PF)
  0.9
• 80 PLUS Certification
  80 PLUS Bronze
• Cooling System
  140 mm fan
• Features
  Overheat protection, over current protection, over voltage protection, overload protection, undervoltage protection, short-circuit protection, DC-DC technology, fan speed control
• Compliant Standards
  TUV, CB, RoHS, ERP
• ENERGY STAR
  Yes
• Service & Support
  Limited warranty - 2 years
• Width
  15 cm
• Depth
  14 cm
• Height
  8.7 cm
