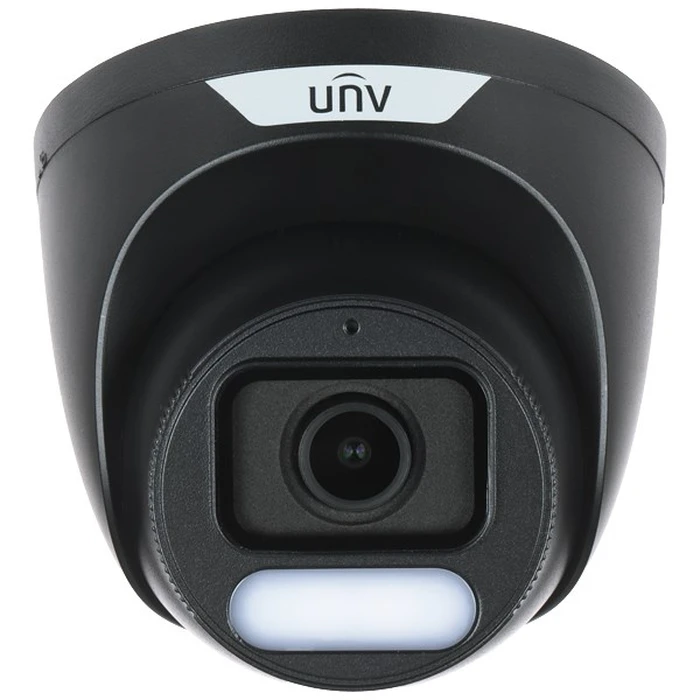

UNIVIEW IPC3624LE-ADF28K-WP-BLACK OwlView Wise-ISP 4 MP Fixed Eyeball Network Camera 2.8 mm

Description

Technical Specifications

• Brand
  UNIVIEW
• Model / MPN
  IPC3624LE-ADF28K-WP-BLACK
• SKU
  WLONONWCRTH20
• EAN / Barcode
  6937096334648
• Product Type
  Fixed Eyeball (Turret) Network Camera
• Series
  OwlView Wise-ISP (ColorHunter)
• Resolution
  4 MP (2688 × 1520 / 2560 × 1440)
• Image Sensor
  1/1.8" CMOS, 4.0 MP, progressive scan
• Lens
  2.8 mm fixed, F1.0
• Horizontal Field of View
  ~110.4° (2.8 mm) (datasheet variants up to ~124° listed)
• Minimum Illumination
  0.0003 lux (Color, F1.0, AGC ON)
• WDR
  120 dB True WDR
• Night Vision
  White/Warm Light LEDs for color night up to ~30 m
• Compression
  Ultra 265, H.265, H.264, MJPEG
• Frame Rate
  Up to 25/20 fps at 2688×1520 (region-dependent)
• Special Technology
  ColorHunter with Wise-ISP (low-light full-color enhancement)
• Audio
  Built-in microphone
• Storage
  MicroSD slot (commonly up to 256 GB; some sources cite 512 GB)
• Network
  10/100 Mbps Ethernet, PoE (IEEE 802.3af)
• Power
  PoE (IEEE 802.3af), auxiliary power options depend on installer
• Ingress Protection
  IP67 (outdoor rated)
• Mounting
  3-axis adjustment (Pan 0°–360°, Tilt 0°–75°, Rotate 0°–360°)
• Dimensions
  Ø109.9 × 85.6 mm (typical turret dimensions listed in datasheet)
• Product Weight
  ~380 g
• Package Weight
  ~700 g
• Color
  Black
• Operating Temperature
  Approximately -30°C to +60°C (typical Uniview spec)
• Humidity
  ≤95% RH (non-condensing)
• Material
  Rugged weatherproof housing (metal + plastic composite)
• Corridor Mode
  Supported (vertical 9:16)
• Package Contents
  Camera unit, mounting kit, quick start guide (varies by vendor)
• Certifications
  IP67 (weatherproof); other region-specific certifications may apply
