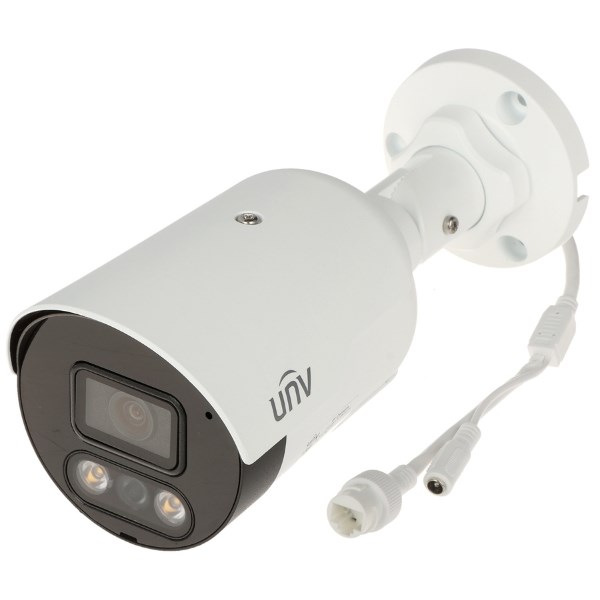

Uniview IP Camera IPC2124LE ColorHunter - 4 MP 2.8 mm (IPC2124LE-ADF28KMC-DL)

Description

Technical Specifications

• Brand
  Uniview
• Model
  IPC2124LE-ADF28KMC-DL
• Series / Family
  ColorHunter / EasyStar
• Camera type
  Fixed mini bullet network camera
• Resolution
  4 MP (Max: 2688 × 1520)
• Sensor
  1/3" CMOS, progressive scan
• Lens
  Fixed 2.8 mm, F1.6
• Field of view
  Horizontal 97.0°; Vertical 52.2° (2.8 mm variant)
• Max frame rates / streams
  4MP up to 25/20 fps (2688×1520), other resolutions up to 30/25 fps
• Video compression
  Ultra 265, H.265, H.264, MJPEG
• WDR
  120 dB true WDR
• Minimum illumination
  0.003 lux (Color, F1.6, AGC ON); 0 lux with light
• Day/Night
  IR-cut filter with auto switch (ICR)
• IR illumination distance
  Up to 30 m (850 nm)
• Warm/white light distance
  Up to 30 m
• Lighting mode
  Dual-light ColorHunter (IR + warm/white light assistance)
• Audio
  Built-in microphone and speaker; two-way audio
• Storage
  MicroSD card support (datasheet: up to 128 GB for DL variant)
• Network / Integration
  PoE supported; ONVIF mentioned by retailers; RTSP and standard authentication features
• Smart features / Detection
  Cross line detection; intrusion (human detection); motion detection; ultra motion detection; tampering alarm; audio detection
• Ingress protection
  IP67 (weatherproof)
• Operating temperature
  Typical retail listing: -30°C to 60°C
• Dimensions
  192 × 75 × 74 mm
• Weight
  ~300 g (typical product weight estimate)
• Mounting
  3-axis adjustable bracket
• Materials / Finish
  Mini-bullet housing (retail listings show black finish for this family)
• Power supply
  PoE (Power over Ethernet)
• Corridor mode
  Supports 9:16 corridor mode
• Shutter
  Auto/Manual, 1 ~ 1/100000 s
• S/N ratio
  >52 dB
• Additional features
  Watermark, IP address filtering, access policy, ARP protection, user/http/RTSP authentication
