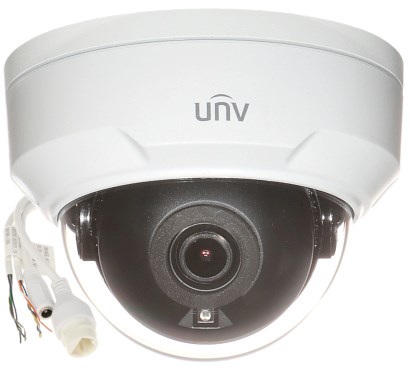

Uniview Anti-vandal IP Camera IPC324SB-DF28K-I0 (4MP LightHunter, 2.8 mm)

Description

Technical Specifications

• Brand
  Uniview
• Model
  IPC324SB-DF28K-I0
• SKU
  WLONONWCRRPO3
• EAN
  6970333408535
• MPN
  IPC324SB-DF28K-I0
• Category
  4MP outdoor fixed vandal dome IP camera
• Image Sensor
  1/3" CMOS
• Maximum Resolution
  2688 × 1520 (4MP)
• Lens
  2.8 mm, F1.6
• Field of View (approx.)
  ~101° (varies by source)
• Day/Night
  ICR (mechanical IR cut filter)
• Minimum Illumination
  Color: 0.002 lux (F1.6, AGC ON); 0 lux with IR
• IR / Night Range
  Smart IR up to 30 m (98 ft)
• WDR
  True WDR 120 dB
• Video Compression
  Ultra265, H.265, H.264, MJPEG
• Frame Rates
  4MP up to 30/25 fps (depending on region)
• Noise Reduction
  2D/3D DNR
• S/N Ratio
  >52 dB (datasheet variants list >56 dB for some models)
• Analytics
  Perimeter protection (cross line, intrusion, enter/leave area), target classification (human/vehicle/non-motor vehicle), people flow counting, crowd density
• Audio
  1 input / 1 output
• Alarm I/O
  1 input / 1 output
• Storage
  microSD card support (up to 256 GB reported; some sources list up to 512 GB)
• Network Interface
  1 × RJ45 (PoE support)
• Power
  PoE (max reported consumption ~4.5 W)
• Protection Rating
  IP67 (weatherproof)
• Vandal Resistance
  IK10
• Operating Temperature
  -30 °C to 60 °C
• Dimensions
  108.7 × 81.1 mm
• Product Weight (approx.)
  300 g
• Mounting
  Fixed dome with multi-axis adjustment
• Special Features
  LightHunter low-light tech, Corridor mode (9:16), target/false-alarm reduction, customized OSD
• Warranty / Compliance Notes
  Standard Uniview commercial warranty and compliance per regional distributor (check local reseller)
