Portable Uni‑T UTi721M thermal imaging attachment for Android smartphones (USB‑C). Core specs: 256×192 IR resolution (49,152 pixels), 56.0°×42.2° FOV, 3.8 mrad IFOV, NETD
More

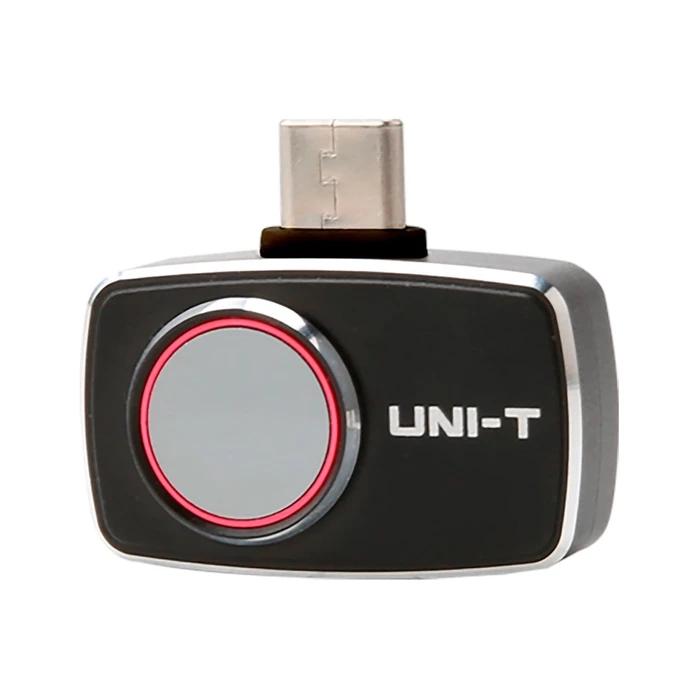

Uni‑T UTi721M Thermal Camera (USB‑C smartphone attachment for Android)
Product Code: 1127678243
Upon Order
370,33 €
or
11,56€ / month
εως 36 δόσεις με πιστωτική κάρτα
Quantity:
Add
Need Help? Fill in your details so we can call you immediately!
Έως 36 Δόσεις. Δείτε το πλάνο δόσεων:
TBI Bank
Buy Now Pay Later.
4 installments 0% επιτόκιο, 20€ έως 300€
3 to 60 installments 300€ έως 100.00€
- 1. Ship with ACS Courier
- 2. Αποστολές με μεταφορικές εταιρίες για ογκώδη αντικείμενα
-
3. Pickup from BoxNow automated machine:
Με την BoxNow μπορείς να παραλάβεις το δέμα σου από Αυτόματο Μηχάνημα Παραλαβής που βρίσκεται κοντά σου, όλες τις ώρες της ημέρας 24/7. Η υπηρεσία έχει χρέωση 3€. Υπάρχει δυνατότητα αντικαταβολής με επιπλέον χρέωση 1€.
-
4. Pickup from the store:
Leof. El. Venizelou 73 (former Theseos), Kallithea
Συμπληρώστε τον ταχυδρομικό κωδικό για να λάβετε εκτίμηση τρόπου και κόστους μεταφορικών.
Portable Uni‑T UTi721M thermal imaging attachment for Android smartphones (USB‑C). Core specs: 256×192 IR resolution (49,152 pixels), 56.0°×42.2° FOV, 3.8 mrad IFOV, NETD <50 mK (25 °C), temperature range -20 °C to 550 °C with 0.1 °C display resolution, accuracy ±2 °C or ±2% (whichever greater). 25 Hz frame rate, 12 µm pixel pitch, 8–14 µm spectral range, 3.2 mm lens focal length. Emissivity default 0.95 (adjustable 0.01–1.00). Connects via USB‑C, uses Thermal Mobile app, saves JPG images to phone memory, supports photos and video, center/hot/cold point readouts, overtemperature alarm, 7 palettes, units °C/°F. Operating conditions: -10 °C to 50 °C; storage -20 °C to 60 °C; humidity 10–95% RH. Certifications: RoHS, UKCA, FCC, CE. Exact device dimensions, weight and material/color finish not specified in available sources.
-
BrandUni‑T
-
ModelUTi721M
-
SKUWLONONWCRASOA
-
MPNMIE0488
-
EAN / Barcode5901890095266
-
Product TypeSmartphone thermal imaging attachment (USB‑C)
-
IR resolution256 × 192 px
-
Total infrared pixels49,152
-
Field of view (FOV)56.0° × 42.2°
-
IFOV / spatial resolution3.8 mrad
-
Thermal sensitivity (NETD)<50 mK at 25 °C
-
Temperature measurement range-20 °C to 550 °C
-
Temperature display resolution0.1 °C
-
Measurement accuracy±2 °C or ±2% (whichever is greater) at 25 °C ambient
-
Frame rate25 Hz
-
Pixel size12 µm
-
Spectral range8–14 µm
-
Lens focal length3.2 mm
-
EmissivityDefault 0.95, adjustable 0.01–1.00
-
Color palettes7
-
Temperature display modesCenter point, hottest point, coldest point
-
Overtemperature alarmYes
-
Units°C / °F
-
ConnectionUSB‑C (plug-and-play)
-
Compatible OSAndroid 6 or later
-
App referencedThermal Mobile
-
Image modesPhotos and videos
-
Image formatJPG
-
StoragePhone memory
-
Operating temperature-10 °C to 50 °C
-
Storage temperature-20 °C to 60 °C
-
Operating humidity10% to 95% RH
-
Power consumption<350 mW
-
Drop resistanceUp to 1 m
-
CertificationsRoHS, UKCA, FCC, CE
-
Typical usagesField/service thermography, building inspection, electrical/mechanical troubleshooting, HVAC diagnostics
Ratings
Description
Portable Uni‑T UTi721M thermal imaging attachment for Android smartphones (USB‑C). Core specs: 256×192 IR resolution (49,152 pixels), 56.0°×42.2° FOV, 3.8 mrad IFOV, NETD <50 mK (25 °C), temperature range -20 °C to 550 °C with 0.1 °C display resolution, accuracy ±2 °C or ±2% (whichever greater). 25 Hz frame rate, 12 µm pixel pitch, 8–14 µm spectral range, 3.2 mm lens focal length. Emissivity default 0.95 (adjustable 0.01–1.00). Connects via USB‑C, uses Thermal Mobile app, saves JPG images to phone memory, supports photos and video, center/hot/cold point readouts, overtemperature alarm, 7 palettes, units °C/°F. Operating conditions: -10 °C to 50 °C; storage -20 °C to 60 °C; humidity 10–95% RH. Certifications: RoHS, UKCA, FCC, CE. Exact device dimensions, weight and material/color finish not specified in available sources.
Technical Specifications
-
BrandUni‑T
-
ModelUTi721M
-
SKUWLONONWCRASOA
-
MPNMIE0488
-
EAN / Barcode5901890095266
-
Product TypeSmartphone thermal imaging attachment (USB‑C)
-
IR resolution256 × 192 px
-
Total infrared pixels49,152
-
Field of view (FOV)56.0° × 42.2°
-
IFOV / spatial resolution3.8 mrad
-
Thermal sensitivity (NETD)<50 mK at 25 °C
-
Temperature measurement range-20 °C to 550 °C
-
Temperature display resolution0.1 °C
-
Measurement accuracy±2 °C or ±2% (whichever is greater) at 25 °C ambient
-
Frame rate25 Hz
-
Pixel size12 µm
-
Spectral range8–14 µm
-
Lens focal length3.2 mm
-
EmissivityDefault 0.95, adjustable 0.01–1.00
-
Color palettes7
-
Temperature display modesCenter point, hottest point, coldest point
-
Overtemperature alarmYes
-
Units°C / °F
-
ConnectionUSB‑C (plug-and-play)
-
Compatible OSAndroid 6 or later
-
App referencedThermal Mobile
-
Image modesPhotos and videos
-
Image formatJPG
-
StoragePhone memory
-
Operating temperature-10 °C to 50 °C
-
Storage temperature-20 °C to 60 °C
-
Operating humidity10% to 95% RH
-
Power consumption<350 mW
-
Drop resistanceUp to 1 m
-
CertificationsRoHS, UKCA, FCC, CE
-
Typical usagesField/service thermography, building inspection, electrical/mechanical troubleshooting, HVAC diagnostics
