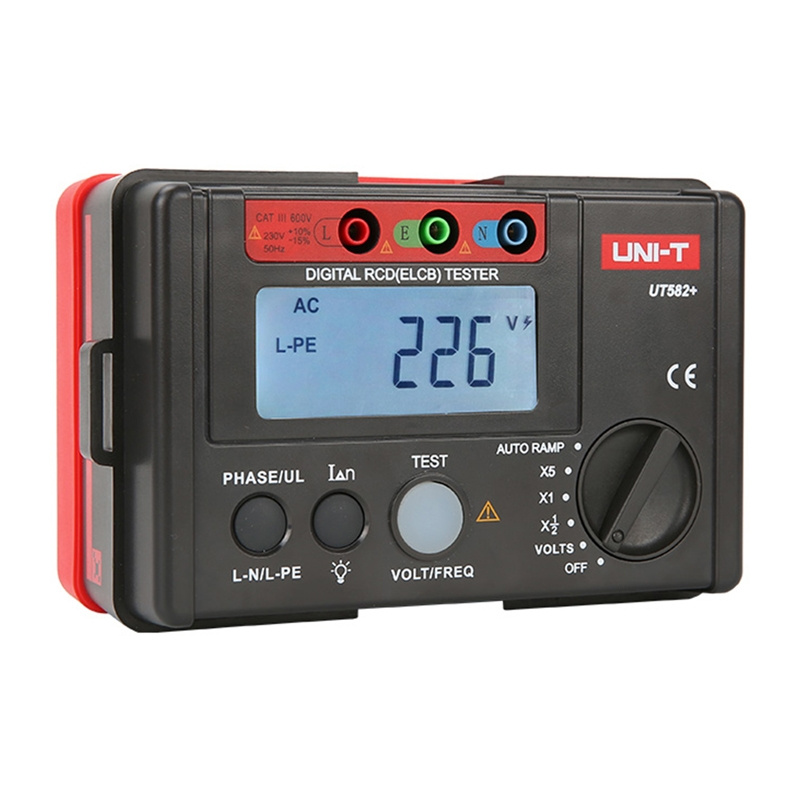

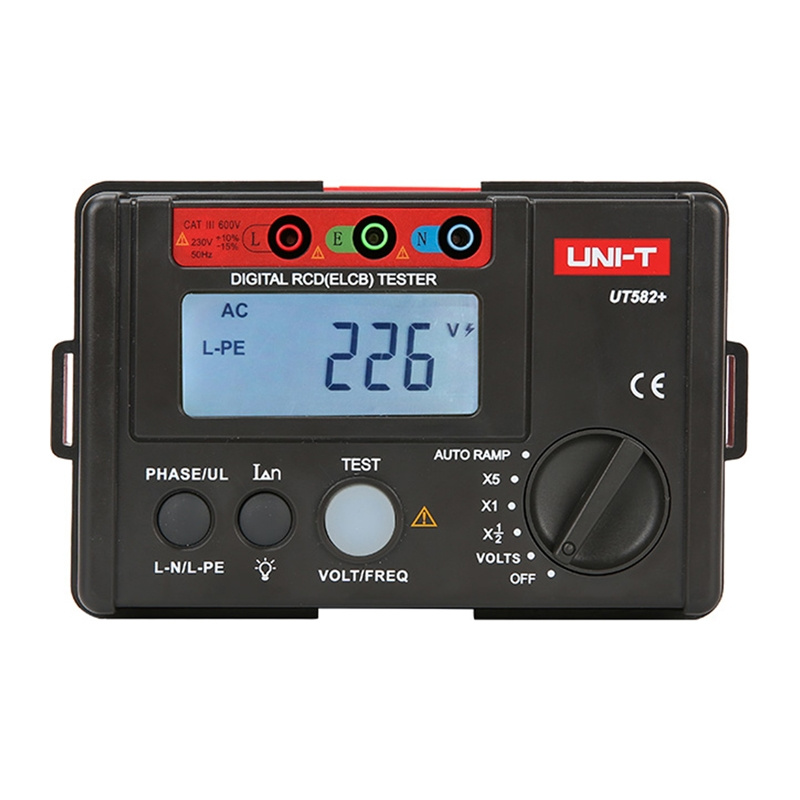

UNI‑T UT582+ Digital RCD (ELCB) Tester

Description

Technical Specifications

• Brand
  UNI‑T
• Model / MPN
  UT582+
• SKU / EAN
  6935750558218
• Product Type
  Digital RCD (ELCB) Tester
• Intended Circuits
  Single‑phase (195V–253V supply range)
• Voltage Measurement Range
  30 V – 600 V
• Voltage Frequency Range
  45 Hz – 65 Hz
• Voltage Resolution
  1 V
• Voltage Accuracy
  ±(3%+3)
• Trip Time Accuracy
  ±(2%+2)
• Display Count
  999
• Safety Category
  CAT III 600 V
• RCD Test Currents
  10 mA, 20 mA, 30 mA, 100 mA, 300 mA, 500 mA
• RCD Test Modes and Trip Time Settings
  X 1/2: (10/20/30/100/300/500 mA) 2000 ms; X1: (10/20/30/100/300 mA) 1000 ms; 500 mA: 300 ms; X5: (10/20/30 mA) 40 ms; AUTO RAMP: up to 500 mA (300 ms)
• Features
  AUTO RAMP; LCD backlight; Data hold; Disconnect buzzer; Mis‑operation buzzer; Power‑off buzzer; Over‑range display (OL); Protective fuses; Low battery indication; Phase angle selection; Connection/lead sequence check; APO auto power off
• Power Supply
  6 × 1.5 V LR6 batteries (AA)
• Weight (product)
  400 g
• Dimensions (product)
  160 × 100 × 71 mm
• Display Size
  71 × 34 mm
• Material / Color
  Plastic housing, red and grey
• Standard Accessories
  Test leads, elastic strap, English manual (some bundles include carrying bag/gift box)
• Certifications / Standards
  CE, UKCA; IEC 61010‑1, IEC 61010‑2‑030, IEC 61010‑2‑033, IEC 61557‑1:2007, IEC 61557‑6:2007, EN 61326‑1, EN 61326‑2‑2
• Packaging (per unit estimate)
  Individual packed weight ≈ 980 g; typical box dimensions approx. 18 × 12 × 8 cm
• Carton Packaging (manufacturer data)
  5 pcs per outer carton; carton size 425 × 280 × 180 mm; gross weight 4.9 kg
