The UNI‑T UT118B is a pen‑type handheld digital multimeter intended for home appliance repair, DIY and general electrical troubleshooting. Key features include 3000 counts display, auto‑range/Auto SCAN, non‑contact voltage (NCV/EF) detection, built‑in flashlight/penlight, data hold, MAX/MIN,...
More

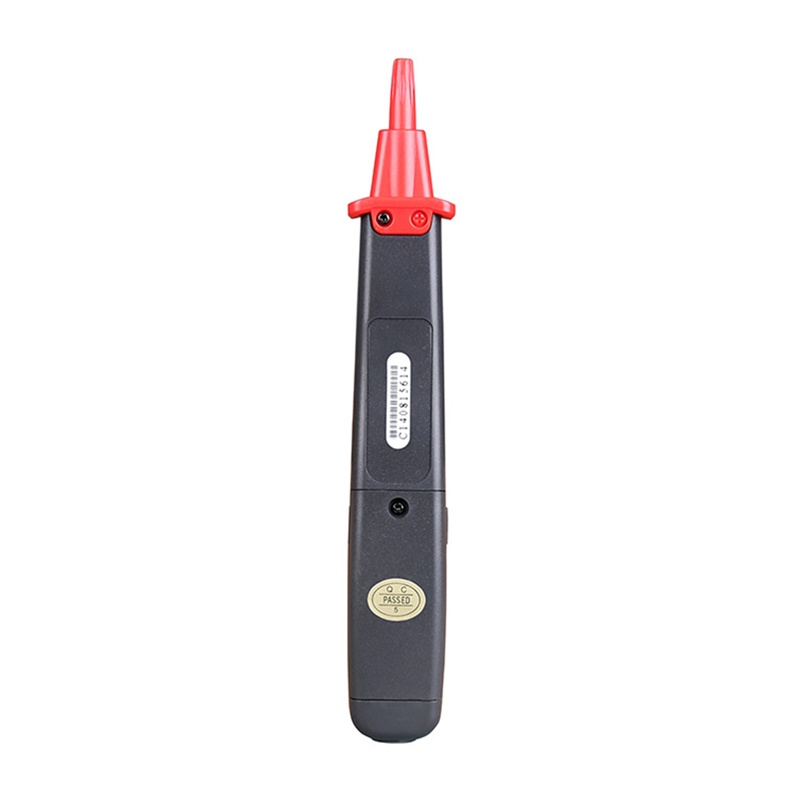

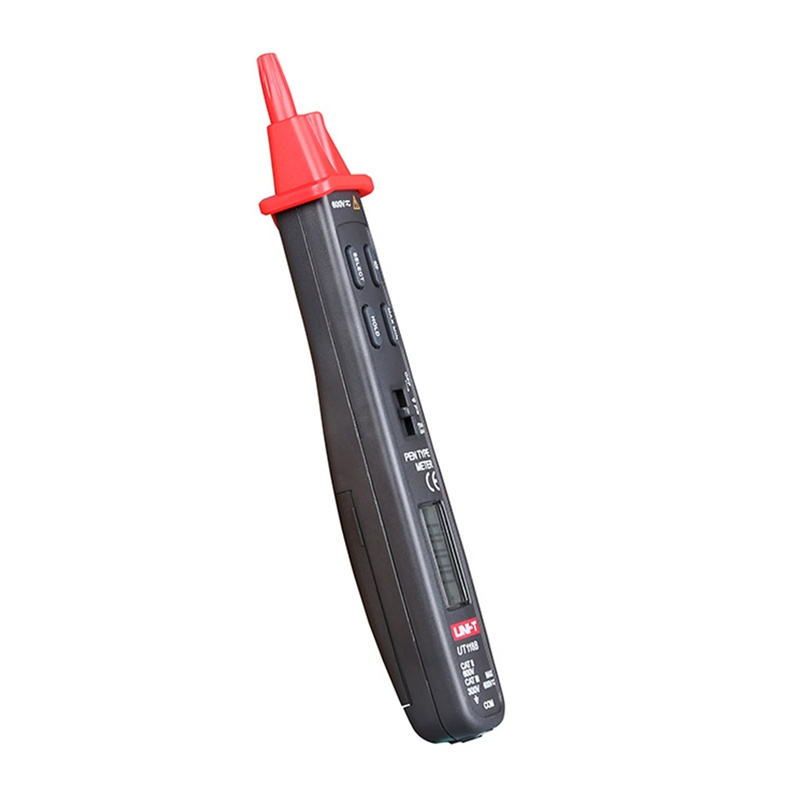

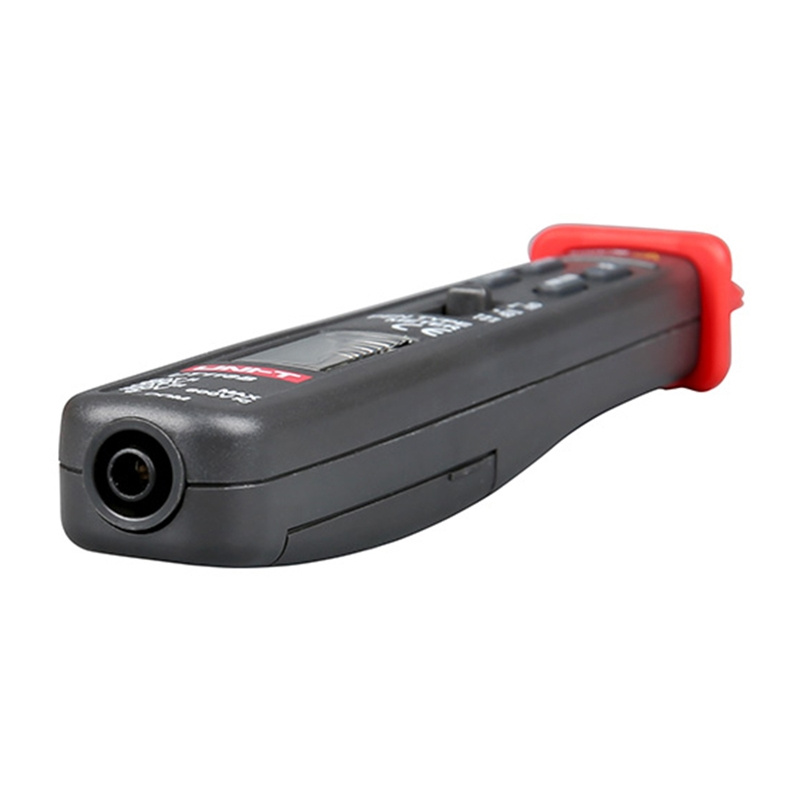

UNI‑T UT118B Pen Type Digital Multimeter
Product Code: 1167685281
Available in 4 - 10 days
34,58 €
or
1,08€ / month
εως 36 δόσεις με πιστωτική κάρτα
With the purchase of this product you earn 104 Bytes
Quantity:
Add
Need Help? Fill in your details so we can call you immediately!
Έως 36 Δόσεις. Δείτε το πλάνο δόσεων:
TBI Bank
Buy Now Pay Later.
4 installments 0% επιτόκιο, 20€ έως 300€
3 to 60 installments 300€ έως 100.00€
- 1. Ship with ACS Courier
- 2. Αποστολές με μεταφορικές εταιρίες για ογκώδη αντικείμενα
-
3. Pickup from BoxNow automated machine:
Με την BoxNow μπορείς να παραλάβεις το δέμα σου από Αυτόματο Μηχάνημα Παραλαβής που βρίσκεται κοντά σου, όλες τις ώρες της ημέρας 24/7. Η υπηρεσία έχει χρέωση 3€. Υπάρχει δυνατότητα αντικαταβολής με επιπλέον χρέωση 1€.
-
4. Pickup from the store:
Leof. El. Venizelou 73 (former Theseos), Kallithea
Συμπληρώστε τον ταχυδρομικό κωδικό για να λάβετε εκτίμηση τρόπου και κόστους μεταφορικών.
The UNI‑T UT118B is a pen‑type handheld digital multimeter intended for home appliance repair, DIY and general electrical troubleshooting. Key features include 3000 counts display, auto‑range/Auto SCAN, non‑contact voltage (NCV/EF) detection, built‑in flashlight/penlight, data hold, MAX/MIN, backlit LCD, audible continuity buzzer, diode test and auto power off. Measurement ranges from official spec sheet: DC/AC voltage up to 300 V, resistance up to 30 MΩ, capacitance up to 3 mF. Input impedance ≥10 MΩ (DCV). Accuracy examples from spec sheet: DCV ±(1%+3), ACV ±(1%+4), Resistance ±(1%+3), Capacitance ±(3%+5). Powered by a CR2032 3V coin cell. Safety rating CAT III 300 V. Standard accessories: battery, test lead, English manual; packaged in blister. Product dimensions: 20 × 27 × 182 mm; net weight approx. 90 g.
-
BrandUNI‑T
-
Model / MPNUT118B
-
EAN / Barcode6935750511824
-
Form FactorPen‑type, handheld
-
Display Counts3000
-
Auto RangeYes (Auto SCAN)
-
Non‑contact Voltage Detection (NCV/EF)Yes
-
DC Voltage RangeUp to 300 V
-
AC Voltage RangeUp to 300 V
-
Resistance RangeUp to 30 MΩ
-
Capacitance RangeUp to 3 mF
-
Continuity TestYes, with buzzer
-
Diode TestYes
-
Input Impedance (DCV)≥10 MΩ
-
Accuracy DCV±(1%+3)
-
Accuracy ACV±(1%+4)
-
Accuracy Resistance±(1%+3)
-
Accuracy Capacitance±(3%+5)
-
Display BacklightYes
-
Data HoldYes
-
MAX/MIN ModeYes
-
Sampling Rate4 times per second
-
Auto Power OffApprox. 10 minutes
-
Low Battery IndicationYes
-

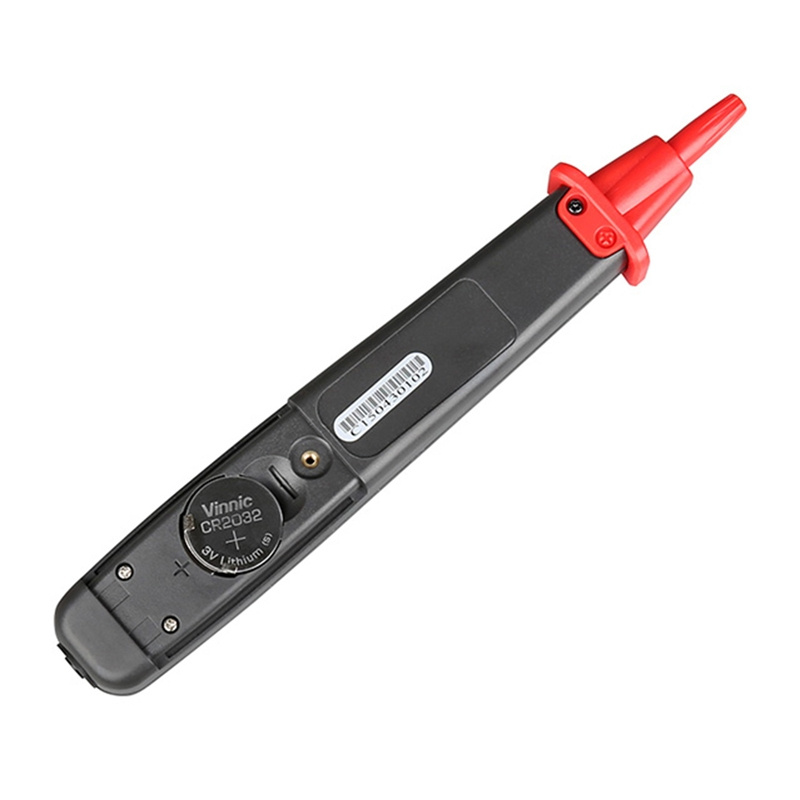

Power SourceCR2032 3V coin battery
-
Safety CategoryCAT III 300 V
-
Product Dimensions (W×D×H)20 × 27 × 182 mm
-
Display Size28 × 14 mm
-
Net Weight90 g
-
Standard AccessoriesBattery, test lead, English manual
-
Packaging TypeBlister pack (retail blister)
-
Intended UseHome appliance repair, DIY, general electrical measurement
-
ColorRed and grey
-
Special FeaturesBuilt‑in flashlight / penlight, NCV, compact pen form
Ratings
Description
The UNI‑T UT118B is a pen‑type handheld digital multimeter intended for home appliance repair, DIY and general electrical troubleshooting. Key features include 3000 counts display, auto‑range/Auto SCAN, non‑contact voltage (NCV/EF) detection, built‑in flashlight/penlight, data hold, MAX/MIN, backlit LCD, audible continuity buzzer, diode test and auto power off. Measurement ranges from official spec sheet: DC/AC voltage up to 300 V, resistance up to 30 MΩ, capacitance up to 3 mF. Input impedance ≥10 MΩ (DCV). Accuracy examples from spec sheet: DCV ±(1%+3), ACV ±(1%+4), Resistance ±(1%+3), Capacitance ±(3%+5). Powered by a CR2032 3V coin cell. Safety rating CAT III 300 V. Standard accessories: battery, test lead, English manual; packaged in blister. Product dimensions: 20 × 27 × 182 mm; net weight approx. 90 g.
Technical Specifications
-
BrandUNI‑T
-
Model / MPNUT118B
-
EAN / Barcode6935750511824
-
Form FactorPen‑type, handheld
-
Display Counts3000
-
Auto RangeYes (Auto SCAN)
-
Non‑contact Voltage Detection (NCV/EF)Yes
-
DC Voltage RangeUp to 300 V
-
AC Voltage RangeUp to 300 V
-
Resistance RangeUp to 30 MΩ
-
Capacitance RangeUp to 3 mF
-
Continuity TestYes, with buzzer
-
Diode TestYes
-
Input Impedance (DCV)≥10 MΩ
-
Accuracy DCV±(1%+3)
-
Accuracy ACV±(1%+4)
-
Accuracy Resistance±(1%+3)
-
Accuracy Capacitance±(3%+5)
-
Display BacklightYes
-
Data HoldYes
-
MAX/MIN ModeYes
-
Sampling Rate4 times per second
-
Auto Power OffApprox. 10 minutes
-
Low Battery IndicationYes
-
Power SourceCR2032 3V coin battery
-
Safety CategoryCAT III 300 V
-
Product Dimensions (W×D×H)20 × 27 × 182 mm
-
Display Size28 × 14 mm
-
Net Weight90 g
-
Standard AccessoriesBattery, test lead, English manual
-
Packaging TypeBlister pack (retail blister)
-
Intended UseHome appliance repair, DIY, general electrical measurement
-
ColorRed and grey
-
Special FeaturesBuilt‑in flashlight / penlight, NCV, compact pen form
