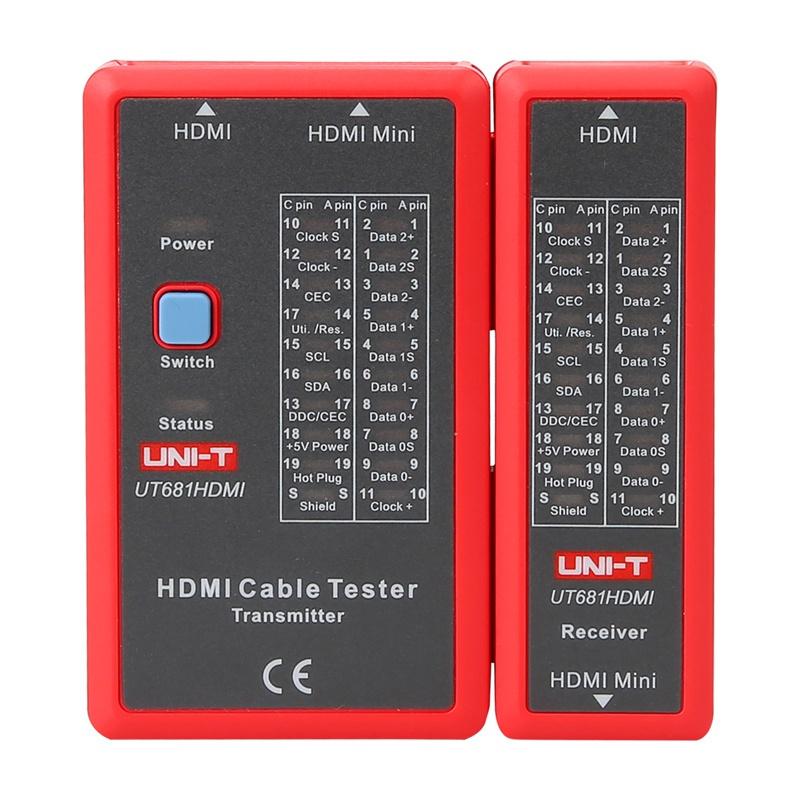

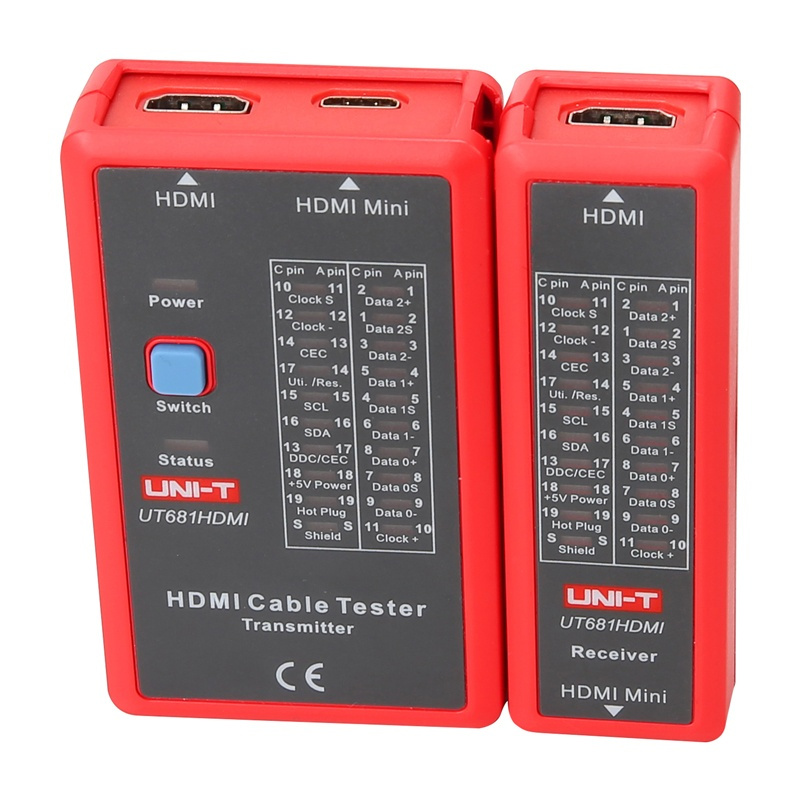

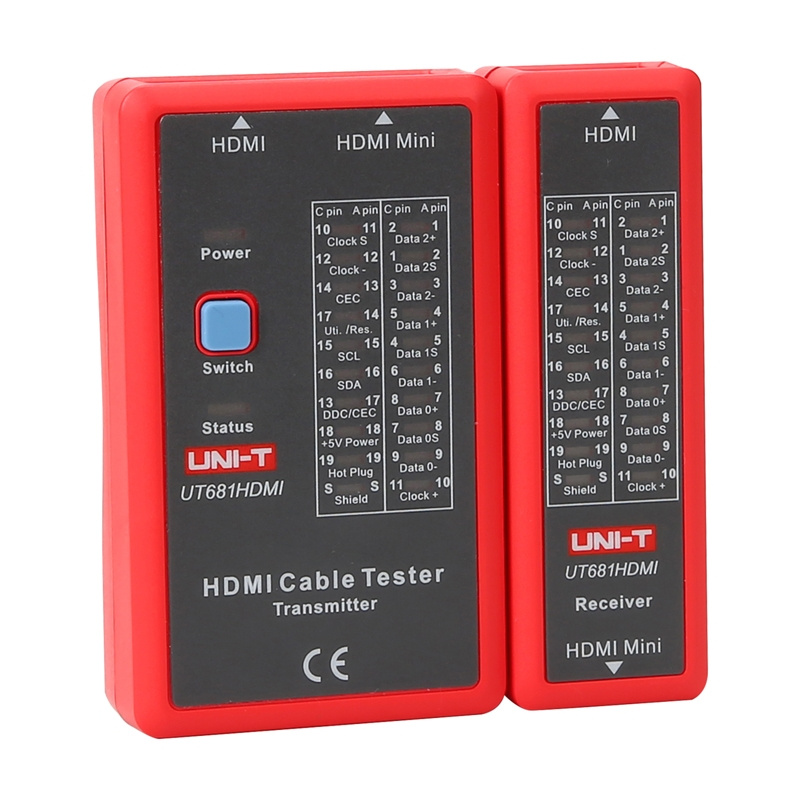

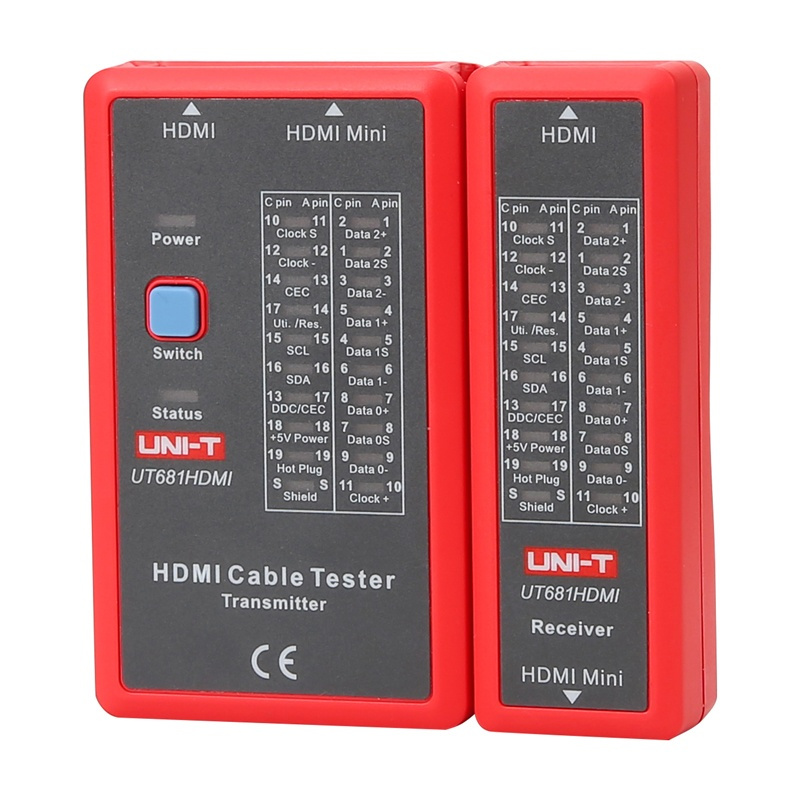

UNI-T UT681HDMI HDMI / Mini-HDMI Cable Tester

Description

Technical Specifications

• Brand
  UNI-T
• Model / MPN
  UT681HDMI
• EAN / Barcode
  6935750568125
• Product Category
  Handheld HDMI / Mini‑HDMI Cable Tester
• Test Functions
  Continuity, Open-circuit detection, Short-circuit detection, Crossed-wire detection
• Supported Cable Types
  HDMI, Mini‑HDMI
• Supported HDMI Versions (mentioned)
  HDMI 1.2, 1.3, 1.4, 2.0
• Display / Indicators
  LED status display (LED1 ~ LED19, LED_S)
• Test Modes
  Scan test mode; Full display test mode
• Operation
  Single-key operation
• Power Supply
  1 × 9V battery
• Low Battery Threshold
  Less than 7.2V
• Auto Power Off
  Yes (after 10 minutes of inactivity)
• Manual Power Off
  Yes
• Operating Temperature
  0–40°C
• Storage Temperature
  -10–50°C
• Operating Humidity
  20–80% RH
• Storage Humidity
  10–90% RH
• Altitude
  ≤2000 m
• Safety Standards
  CE EN61326-1:2013; EN61326-2-2:2013
• Certifications
  CE, UKCA (mentioned)
• Color
  Red and Grey
• Physical Dimensions (Transmitter)
  102 × 62 × 28 mm
• Physical Dimensions (Receiver)
  102 × 37 × 28 mm
• Weight (Transmitter)
  87 g
• Weight (Receiver)
  51 g
• Typical Package Weight
  ~250 g
• Included Accessories
  9V battery (listed in spec; may be omitted in some sales packages)
• Features
  LED status display; Scan and full display; Automatic open/short/crossover detection; Single-key operation; Low battery indication; Detachable receiver
• Typical Use Cases
  Cable installation, maintenance, troubleshooting of AV and weak-current systems
