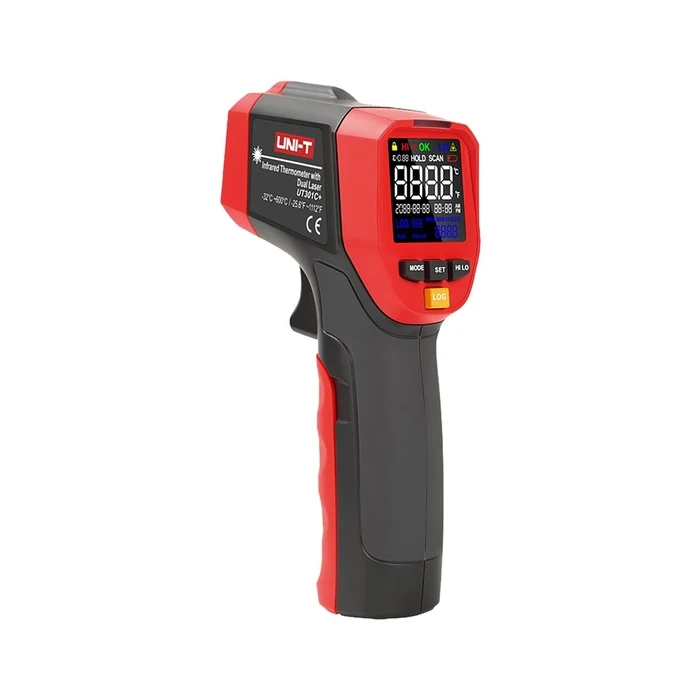

UNI-T UT301C+ Infrared Non-Contact Temperature Meter

Description

Technical Specifications

• Brand
  UNI-T (Uni-Trend)
• Model
  UT301C+
• Product Type
  Handheld non-contact infrared thermometer / temperature meter
• Measurement Range
  -32°C to 600°C (-25.6°F to 1112°F)
• Distance-to-Spot (D:S)
  12:1
• Accuracy
  ±1.5°C or ±1.5% (above 0°C); ±(1.5°C + 0.1°C/°C) (at or below 0°C)
• Accuracy (°F)
  ±3.0°F or ±1.5% (above 32°F); ±(3.0°F + 0.1°F/°F) (at or below 32°F)
• Repeatability
  0.7°C or 0.7% (1.5°F or 0.7%)
• Response Time
  ≤250 ms
• Spectral Response
  8–14 µm
• Emissivity Range
  0.1 to 1.0 (adjustable)
• Emissivity Presets
  Stores 5 preset values
• Laser Targeting
  Ring laser (low power <1 mW)
• Display
  Color EBTN LCD (approx. 30×30 mm or 35×35 mm depending on variant)
• Alarms
  High/low visual LED alarm and audible beep alarm
• Measurement Modes
  MAX / MIN / AVG / DIFF / Hold
• Data Logging
  Records up to 99 groups of measurements
• Date/Time
  Date/time display and time-scheduled measurement
• Power
  1 × 9V battery
• Dimensions
  Approx. 160 × 74 × 48 mm
• Weight
  Approx. 200 g (device only)
• Package Weight
  Typical packaged weight ~350 g
• Tripod Mount
  Yes (thread for tripod mounting)
• Operating Temperature
  0°C to 50°C
• Operating Humidity
  0 to 75% RH, non-condensing
• Storage Temperature
  -20°C to 65°C
• Certifications
  CE, UKCA
• Use Cases
  Industrial maintenance, HVAC, electrical diagnostics, surface temperature checks
• Included Accessories
  User manual (varies by retailer), packaging; 9V battery may or may not be included depending on seller
