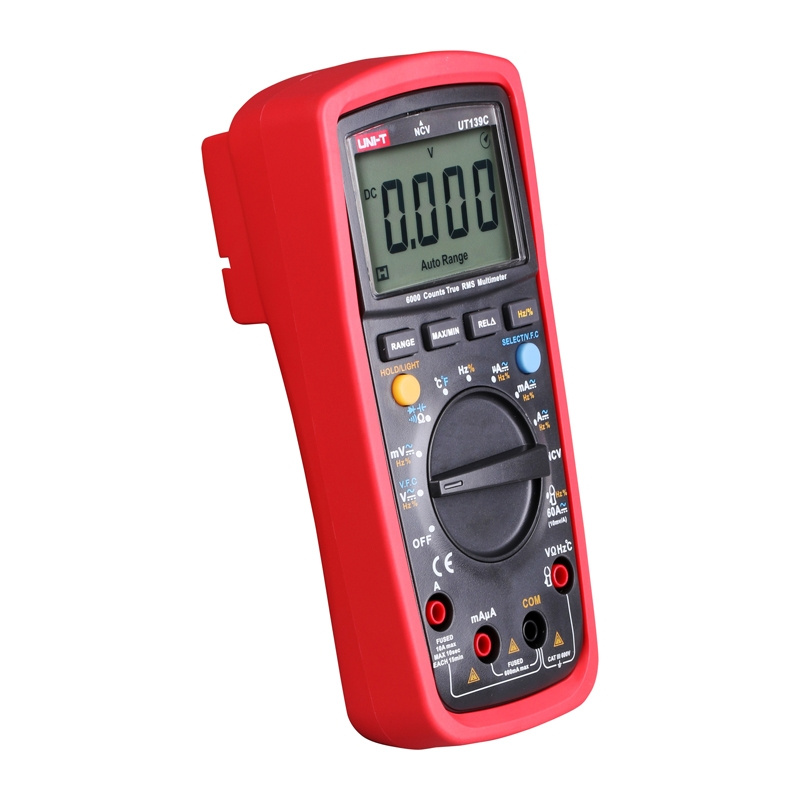

UNI-T UT139C True RMS Digital Multimeter

Description

Technical Specifications

• Brand
  UNI-T (Uni-Trend)
• Model
  UT139C
• MPN
  UT139C
• EAN / SKU
  6935750531396
• Category
  Handheld Digital Multimeter
• Type
  True RMS portable multimeter
• Safety Rating
  CAT III 600V
• Display
  Approximately 5999 counts LCD, 3 5/6 digits, 31-segment analog bar, backlight
• Measurement Functions
  DC voltage, AC voltage, DC current, AC current, resistance, capacitance, frequency, duty cycle, continuity, diode test, temperature (K-type)
• Voltage Range
  DC/AC up to 600 V
• Current Ranges
  600 µA, 6 mA, 60 mA, 600 mA, 6 A, 10 A
• Resistance Ranges
  600 Ω / 6 kΩ / 60 kΩ / 600 kΩ / 6 MΩ / 60 MΩ
• Capacitance Ranges
  10 nF / 100 nF / 1 mF / 10 mF / 100 mF
• Frequency Range
  10 Hz to 10 MHz
• Temperature Range
  -40 °C to 1000 °C (-40 °F to 1832 °F)
• Accuracy (typical)
  DCV ±(0.5% + 2 digits); ACV ±(0.8% + 3 digits) (model/data-sheet dependent)
• AC Bandwidth
  Typically 45 Hz to 1 kHz (function and range dependent)
• True RMS
  Yes
• NCV (Non-Contact Voltage)
  Yes
• Input Impedance
  ~1 GΩ (DCV)
• Continuity Threshold
  <10 Ω (buzzer)
• Special Functions
  MAX/MIN/REL, data hold, auto power off, auto/manual ranging
• Protection
  Full-range protection to 600 V
• Dimensions
  Approx. 80 × 170 × 48 mm
• Weight
  Approx. 370 g (meter only)
• Power
  9V battery (typical)

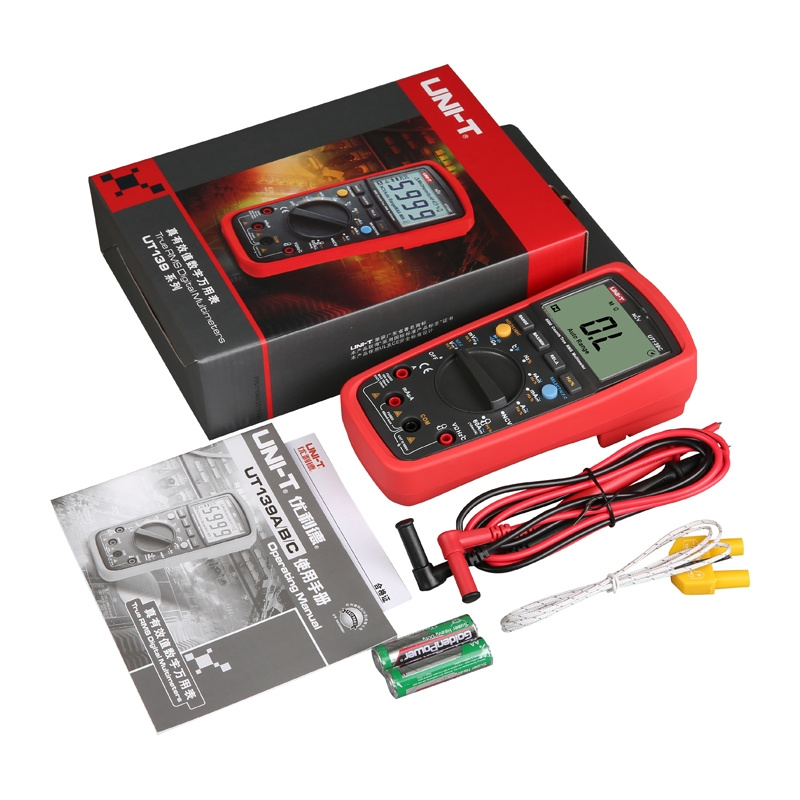

• Included Accessories
  Test leads, K-type thermocouple, 9V battery, user manual, protective holster (typical)
• Certifications
  CE, UKCA, cETLus
• Packaging
  Retail box with accessories and manual (dimensions estimated)
