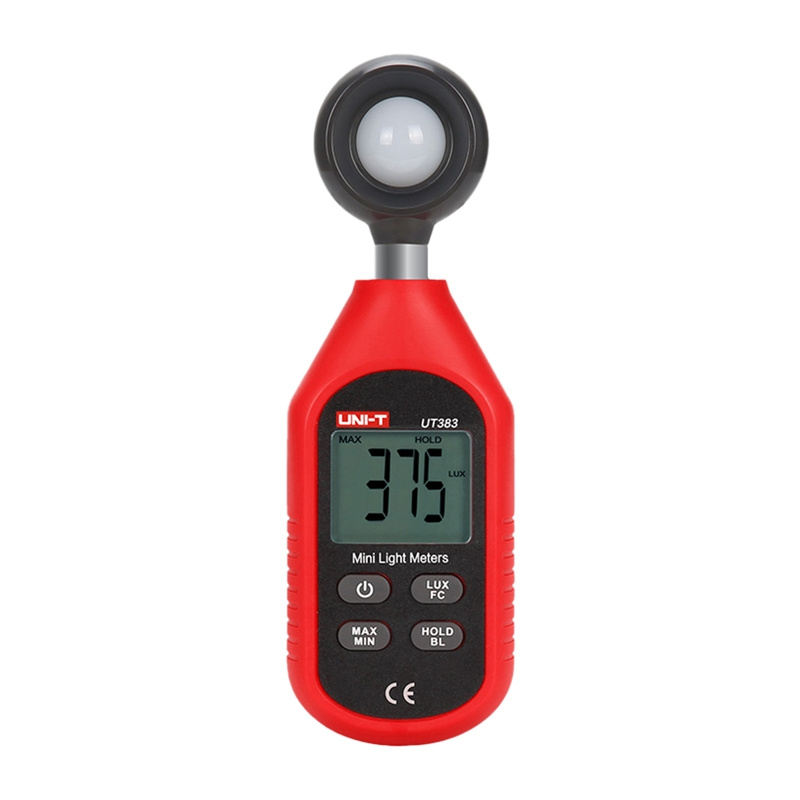

UNI-T Light Meter UT383 (Mini Digital Illuminance / Lux Meter)

Description

Technical Specifications

• Brand
  UNI-T (Uni-Trend)
• Model / MPN
  UT383
• SKU / EAN
  6935750538302
• Product Type
  Mini digital light meter / illuminance meter
• Measurement Units
  Lux (lx), Foot-candle (Fc)
• Illuminance Range (Lux)
  0 to 199,900 Lux
• Illuminance Range (Fc)
  0 to 18,500 Fc
• Accuracy (0–9,999 lx)
  ±(4% + 8)
• Accuracy (≥10,000 lx)
  ±(5% + 10)
• Accuracy (≥100,000 lx)
  ±(5% + 10)
• Resolution (Lux)
  1 lx (0–9,999), 10 lx (≥10,000), 100 lx (≥100,000)
• Resolution (Fc)
  1 Fc (0–9,999), 10 Fc (≥10,000)
• Sampling Time
  0.5 s
• Display
  LCD (approx. 32 mm × 26 mm)
• Features
  MAX/MIN, data hold, LCD backlight, auto power off, overload indication, low battery indication
• Power Supply
  3 × 1.5V AAA batteries (R03)
• Current Consumption
  ≤30 mA
• Product Net Weight
  118 g
• Product Dimensions
  160 mm × 50 mm × 28 mm
• Color
  Red and grey
• Operating Temperature
  0°C to 40°C
• Tripod Mounting
  Documented for UT383/UT383BT family (BT listings show tripod hole)
• Bluetooth
  Not on standard UT383; Bluetooth available on UT383BT variant (app iENV)
• Certificates
  CE, UKCA
• Packaging Carton (standard)
  Carton size reported 505 mm × 330 mm × 280 mm (carton gross weight ~8.42 kg for 40 pcs)
• Typical Applications
  Lighting enterprises, agriculture, animal husbandry, mining, laboratories, offices, household, street-light construction
