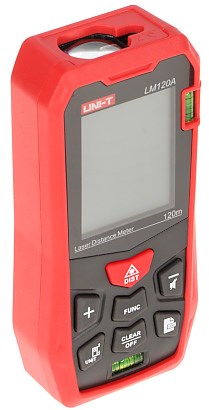

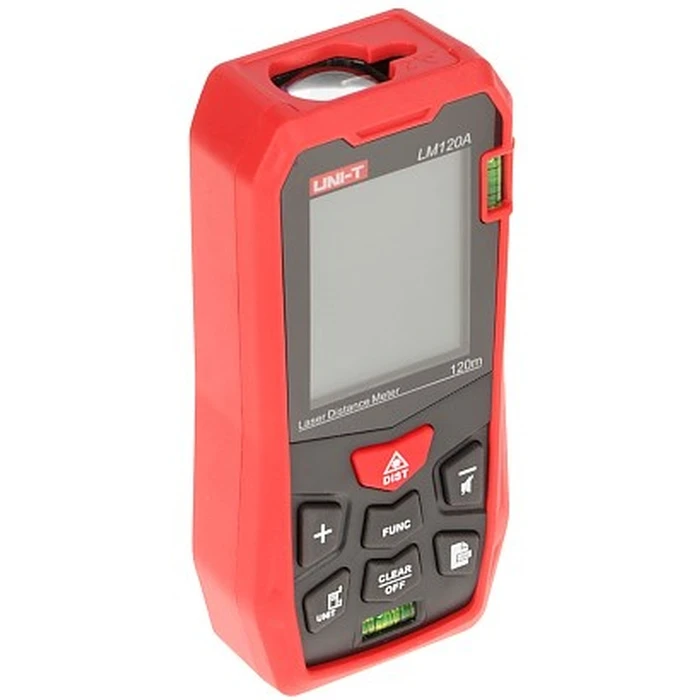

UNI-T Laser Distance Meter LM-120A

Description

Technical Specifications

• Brand
  UNI-T
• Model
  LM-120A
• SKU
  WLONONWCROR75
• EAN / Barcode
  6935750512623
• MPN
  37916008
• Product Type
  Laser Distance Meter
• Measurement Range
  Up to 120 m (≈393 ft)
• Accuracy
  ±(2 mm + 5 × 10^-5 × D)
• Minimum Display Unit
  0.001 m
• Measurement Units
  m / ft / in
• Measurement Base
  Front / Rear
• Laser Class
  Class 2
• Laser Wavelength / Power
  630–670 nm, <1 mW
• Display
  Backlit LCD
• Display Style
  Backlit numeric LCD with realtime readout
• Measurement Modes
  Single distance, Continuous, Area, Volume, Pythagorean (indirect), Max/Min, Addition/Subtraction
• Data Storage
  99 groups (LM A-series documentation)
• Angle Range / Sensor
  ±90°; Electronic angle sensor
• Auto Functions
  Auto laser off (~20 s), Auto power off (~150 s)
• Batteries / Power
  2 × AAA 1.5V (official LM A-series manual)
• Battery Life
  Up to ~8000 measurements (per manual)
• Tripod Thread
  1/4"-20 (reported on retailer listings)
• Dimensions
  112 × 50 × 25 mm
• Weight
  ~120 g (typical handheld laser meter, device weight estimate)
• Operating Temperature
  0°C to 40°C
• Storage Temperature
  -20°C to 60°C
• Storage Humidity
  20% to 80%
• Protection / Ruggedness
  IP54 reported in some retailer/variant listings
• Certifications
  CE, UKCA, RoHS
• Package Contents (typical)
  Laser distance meter, user manual, hand strap, soft case/pouch (some sellers list USB cable or rechargeable battery for variant models)
• Intended Use
  Interior/exterior design, construction, factory supervision, engineering inspection, real estate, home/DIY
• Notes
  Some third‑party listings show variants (USB rechargeable Li‑ion cell, different stored groups); the official UNI‑T LM A‑series specification set is the primary reference
