The UNI-T UT501B is a portable digital insulation resistance tester from the UT500 series designed for insulation testing of transformers, generators, high-voltage motors, capacitors, cables, arresters, switches and appliances. It supports 250V, 500V and 1000V insulation test voltages with an...
More

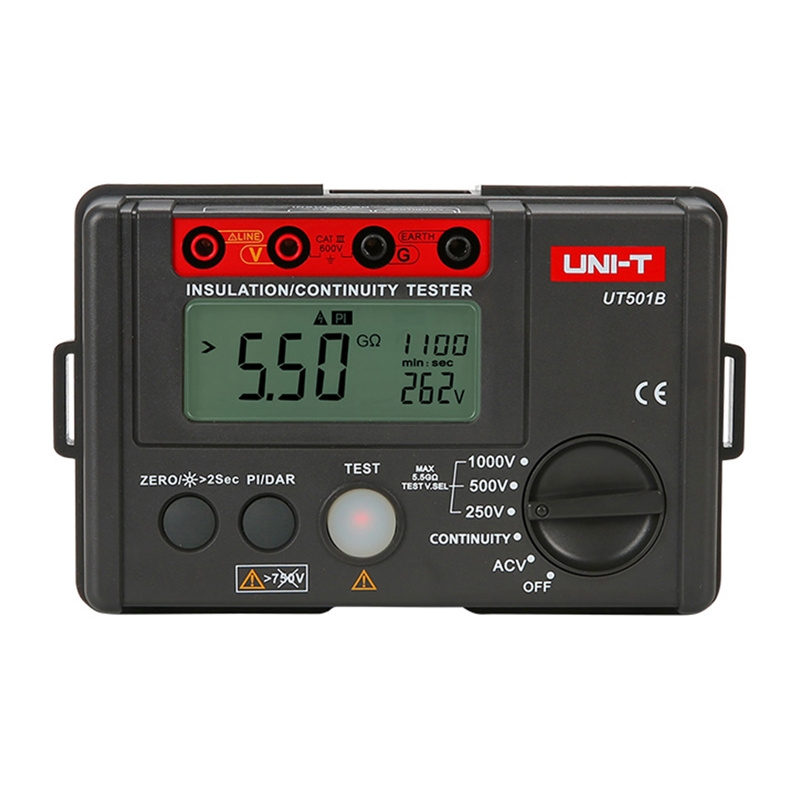

Uni-T Insulation Resistance Tester UT501B
Product Code: 1167685174
Available in 4 - 10 days
131,14 €
or
4,10€ / month
εως 36 δόσεις με πιστωτική κάρτα
With the purchase of this product you earn 394 Bytes
Quantity:
Add
Need Help? Fill in your details so we can call you immediately!
Έως 36 Δόσεις. Δείτε το πλάνο δόσεων:
TBI Bank
Buy Now Pay Later.
4 installments 0% επιτόκιο, 20€ έως 300€
3 to 60 installments 300€ έως 100.00€
- 1. Ship with ACS Courier
- 2. Αποστολές με μεταφορικές εταιρίες για ογκώδη αντικείμενα
-
3. Pickup from BoxNow automated machine:
Με την BoxNow μπορείς να παραλάβεις το δέμα σου από Αυτόματο Μηχάνημα Παραλαβής που βρίσκεται κοντά σου, όλες τις ώρες της ημέρας 24/7. Η υπηρεσία έχει χρέωση 3€. Υπάρχει δυνατότητα αντικαταβολής με επιπλέον χρέωση 1€.
-
4. Pickup from the store:
Leof. El. Venizelou 73 (former Theseos), Kallithea
Συμπληρώστε τον ταχυδρομικό κωδικό για να λάβετε εκτίμηση τρόπου και κόστους μεταφορικών.
The UNI-T UT501B is a portable digital insulation resistance tester from the UT500 series designed for insulation testing of transformers, generators, high-voltage motors, capacitors, cables, arresters, switches and appliances. It supports 250V, 500V and 1000V insulation test voltages with an insulation resistance range up to 5 GΩ. Additional functions include AC voltage measurement (30–600 V), low resistance/continuity (0.01 Ω – 200 Ω), PI (Polarization Index) and DAR (Dielectric Absorption Ratio) diagnostics, auto discharge, auto range, low-resistance zero/return-to-zero, 2000-count backlit LCD display, continuous measurement mode with buzzer and warning light, and CAT III 600V safety rating. Powered by 6 × 1.5V AA batteries. CE and UKCA compliant.
-
BrandUNI-T
-
Model / MPNUT501B
-
SKU / EAN / Barcode6935750525012
-
CategoryInsulation Resistance Tester (UT500 series)
-
Insulation test voltages250V, 500V, 1000V
-
Insulation resistance range0.01 MΩ to 5 GΩ
-
AC voltage range30 V to 600 V AC
-
Low resistance range0.01 Ω to 200 Ω
-
Display2000 count LCD with backlight
-
Display size70.6 mm × 34 mm
-
Product weight500 g
-
Package weight (approx.)900 g
-
Product dimensions150 mm × 100 mm × 71 mm
-
Battery6 × 1.5V AA (LR6)
-
Load current1 mA
-
DAR timing60s/15s and 60s/30s
-
Safety ratingCAT III 600V
-
ComplianceCE, UKCA
-
FunctionsInsulation resistance, AC voltage, low resistance/continuity, PI (Polarization Index), DAR (Dielectric Absorption Ratio), resistivity calculation
-
Auto featuresAuto power off, Auto discharge, Auto range
-
AlarmsHigh-voltage indicator light, buzzer alarm, warning light in continuous mode
-
Additional featuresLow resistance zero/return-to-zero, continuous low-resistance measurement, auto resistivity calculation
-
Included accessories (varies by seller)Batteries, test leads, alligator clips
Ratings
Description
The UNI-T UT501B is a portable digital insulation resistance tester from the UT500 series designed for insulation testing of transformers, generators, high-voltage motors, capacitors, cables, arresters, switches and appliances. It supports 250V, 500V and 1000V insulation test voltages with an insulation resistance range up to 5 GΩ. Additional functions include AC voltage measurement (30–600 V), low resistance/continuity (0.01 Ω – 200 Ω), PI (Polarization Index) and DAR (Dielectric Absorption Ratio) diagnostics, auto discharge, auto range, low-resistance zero/return-to-zero, 2000-count backlit LCD display, continuous measurement mode with buzzer and warning light, and CAT III 600V safety rating. Powered by 6 × 1.5V AA batteries. CE and UKCA compliant.
Technical Specifications
-
BrandUNI-T
-
Model / MPNUT501B
-
SKU / EAN / Barcode6935750525012
-
CategoryInsulation Resistance Tester (UT500 series)
-
Insulation test voltages250V, 500V, 1000V
-
Insulation resistance range0.01 MΩ to 5 GΩ
-
AC voltage range30 V to 600 V AC
-
Low resistance range0.01 Ω to 200 Ω
-
Display2000 count LCD with backlight
-
Display size70.6 mm × 34 mm
-
Product weight500 g
-
Package weight (approx.)900 g
-
Product dimensions150 mm × 100 mm × 71 mm
-
Battery6 × 1.5V AA (LR6)
-
Load current1 mA
-
DAR timing60s/15s and 60s/30s
-
Safety ratingCAT III 600V
-
ComplianceCE, UKCA
-
FunctionsInsulation resistance, AC voltage, low resistance/continuity, PI (Polarization Index), DAR (Dielectric Absorption Ratio), resistivity calculation
-
Auto featuresAuto power off, Auto discharge, Auto range
-
AlarmsHigh-voltage indicator light, buzzer alarm, warning light in continuous mode
-
Additional featuresLow resistance zero/return-to-zero, continuous low-resistance measurement, auto resistivity calculation
-
Included accessories (varies by seller)Batteries, test leads, alligator clips
