The Uni-T UT512D is a portable digital measurement instrument designed primarily for insulation testing and diagnostic measurements. It supports test voltages of 250 V, 500 V, 1000 V and 2500 V (maximum output 2.5 kV) and measures insulation resistance up to 249 GΩ (precision) and up to 1.00 TΩ...
More

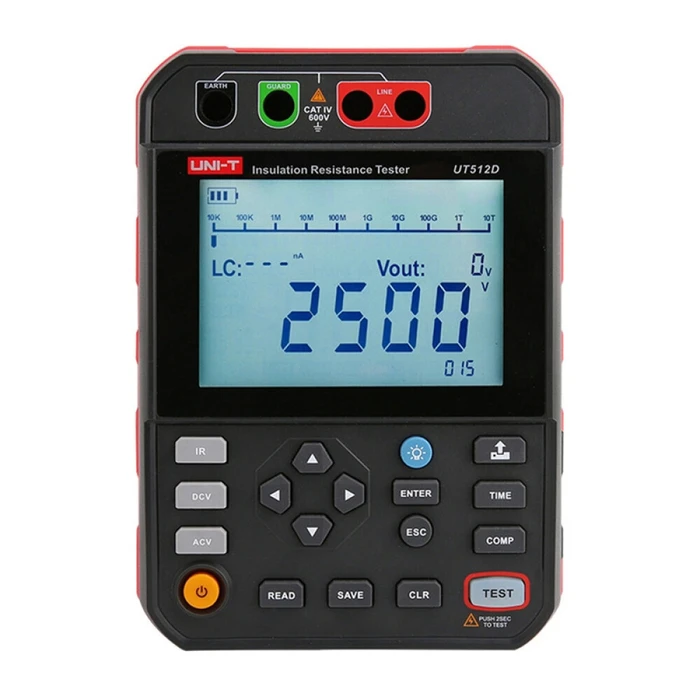

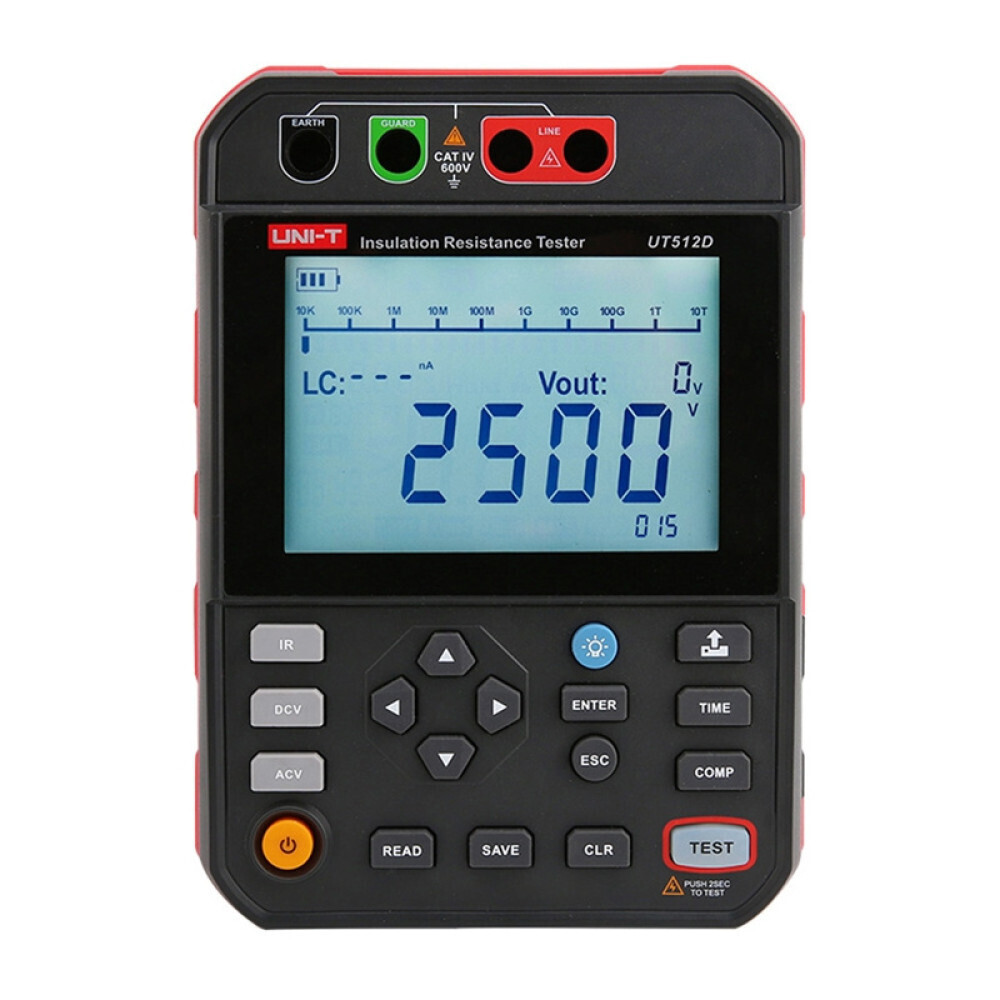

Uni-T Digital Multimeter UT512D
Product Code: 1167724599
Available in 4 - 6 days
414,73 €
or
12,95€ / month
εως 36 δόσεις με πιστωτική κάρτα
With the purchase of this product you earn 1245 Bytes
Quantity:
Add
Need Help? Fill in your details so we can call you immediately!
Έως 36 Δόσεις. Δείτε το πλάνο δόσεων:
TBI Bank
Buy Now Pay Later.
4 installments 0% επιτόκιο, 20€ έως 300€
3 to 60 installments 300€ έως 100.00€
- 1. Ship with ACS Courier
- 2. Αποστολές με μεταφορικές εταιρίες για ογκώδη αντικείμενα
-
3. Pickup from BoxNow automated machine:
Με την BoxNow μπορείς να παραλάβεις το δέμα σου από Αυτόματο Μηχάνημα Παραλαβής που βρίσκεται κοντά σου, όλες τις ώρες της ημέρας 24/7. Η υπηρεσία έχει χρέωση 3€. Υπάρχει δυνατότητα αντικαταβολής με επιπλέον χρέωση 1€.
-
4. Pickup from the store:
Leof. El. Venizelou 73 (former Theseos), Kallithea
Συμπληρώστε τον ταχυδρομικό κωδικό για να λάβετε εκτίμηση τρόπου και κόστους μεταφορικών.
The Uni-T UT512D is a portable digital measurement instrument designed primarily for insulation testing and diagnostic measurements. It supports test voltages of 250 V, 500 V, 1000 V and 2500 V (maximum output 2.5 kV) and measures insulation resistance up to 249 GΩ (precision) and up to 1.00 TΩ (indicative). The meter performs Polarization Index (PI) and Dielectric Absorption Ratio (DAR) tests to assess insulation condition. It stores up to 999 data sets and provides USB connectivity for data transfer and PC logging. Safety rating CAT IV 600 V. Powered by 8 × LR14 alkaline batteries. Physical dimensions 238 × 166 × 90.5 mm, weight approx. 1800 g (with batteries). Includes test leads, USB cable, user manual, carrying case and batteries.
-
BrandUni-T
-
ModelUT512D
-
Product TypeInsulation Resistance Tester (Megohmmeter) / Digital Multimeter
-
Test Voltages250 V / 500 V / 1000 V / 2500 V
-
Maximum Output Voltage2.5 kV
-
Insulation Resistance RangeUp to 249 GΩ (precision) / Up to 1.00 TΩ (indicative)
-
Short-circuit CurrentApprox. 3.5 mA
-
Diagnostic MeasurementsPolarization Index (PI) & Dielectric Absorption Ratio (DAR)
-
Memory CapacityUp to 999 data sets
-
Data CommunicationUSB interface for data logging and PC connection
-
Safety CategoryCAT IV 600 V
-
Display Counts999 counts
-
Power Supply8 × LR14 alkaline batteries
-
Dimensions238 × 166 × 90.5 mm
-
WeightApprox. 1800 g (with batteries)
-
CertificationsCE, UKCA
-
Accessories IncludedMeter, 3 test leads, USB cable, user manual, 8 × LR14 batteries, carrying case
-
True RMSNo
-
LCD ScreenNo
-
BuzzerNo
-
Packaging Weight1800 g
Ratings
Description
The Uni-T UT512D is a portable digital measurement instrument designed primarily for insulation testing and diagnostic measurements. It supports test voltages of 250 V, 500 V, 1000 V and 2500 V (maximum output 2.5 kV) and measures insulation resistance up to 249 GΩ (precision) and up to 1.00 TΩ (indicative). The meter performs Polarization Index (PI) and Dielectric Absorption Ratio (DAR) tests to assess insulation condition. It stores up to 999 data sets and provides USB connectivity for data transfer and PC logging. Safety rating CAT IV 600 V. Powered by 8 × LR14 alkaline batteries. Physical dimensions 238 × 166 × 90.5 mm, weight approx. 1800 g (with batteries). Includes test leads, USB cable, user manual, carrying case and batteries.
Technical Specifications
-
BrandUni-T
-
ModelUT512D
-
Product TypeInsulation Resistance Tester (Megohmmeter) / Digital Multimeter
-
Test Voltages250 V / 500 V / 1000 V / 2500 V
-
Maximum Output Voltage2.5 kV
-
Insulation Resistance RangeUp to 249 GΩ (precision) / Up to 1.00 TΩ (indicative)
-
Short-circuit CurrentApprox. 3.5 mA
-
Diagnostic MeasurementsPolarization Index (PI) & Dielectric Absorption Ratio (DAR)
-
Memory CapacityUp to 999 data sets
-
Data CommunicationUSB interface for data logging and PC connection
-
Safety CategoryCAT IV 600 V
-
Display Counts999 counts
-
Power Supply8 × LR14 alkaline batteries
-
Dimensions238 × 166 × 90.5 mm
-
WeightApprox. 1800 g (with batteries)
-
CertificationsCE, UKCA
-
Accessories IncludedMeter, 3 test leads, USB cable, user manual, 8 × LR14 batteries, carrying case
-
True RMSNo
-
LCD ScreenNo
-
BuzzerNo
-
Packaging Weight1800 g
