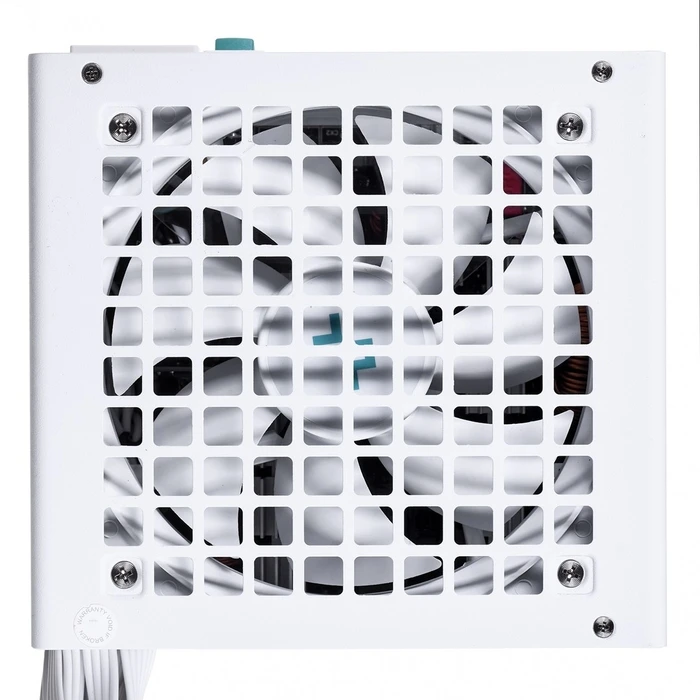

Τροφοδοτικό Υπολογιστή 650W Deepcool PL650D 20+4 pin ATX ATX White

Technical Specifications

• Sustainability certificates
  ErP
• Sustainability compliance
  Yes
• Cooling type
  Active
• On/off switch
  Yes
• Product colour
  White
• Number of fans
  1 fan(s)
• Fan location
  Top
• Fan diameter
  12 cm
• AC input frequency
  50/60 Hz
• Power protection features
  Over power
• AC input voltage
  100 - 240 V
• Input current
  9 - 4.5 A
• Power Factor Correction (PFC) type
  Active
• Combined power (+3.3V)
  100 W
• Hold time
  16 ms
• Max output current (+5Vsb)
  3 A
• Max output current (+3.3V)
  20 A
• Max output current (-12V)
  0.3 A
• Combined power (+12V)
  648 W
• Max output current (+12V)
  54 A
• Max output current (+5V)
  20 A
• Efficiency
  85%
• Combined power (-12V)
  3.6 W
• Combined power (+5V)
  100 W
• Power Good signal delay range
  100 - 150 ms
• Combined power (+5Vsb)
  15 W
• Total power
  650 W
• Operating temperature (T-T)
  0 - 40 °C
• Width
  150 mm
• Height
  86 mm
• Depth
  140 mm
• Purpose
  PC
• 80 PLUS certification
  80 PLUS Bronze
• Bearing technology
  HYB
• Power supply unit (PSU) form factor
  ATX
• Mean time between failures (MTBF)
  100000 h
• ATX version
  3.0
• Package type
  Box
• Compliance certificates
  RoHS
• PCI Express power connectors (16-pin)
  1
• Peripheral (Molex) power connectors (4-pin)
  2
• Motherboard power cable length
  55 cm
• Number of SATA power connectors
  6
• SATA power cable length
  550
• PCI Express power connectors (6+2 pin)
  3
• ATX power connector (20+4 pin)
  Yes
• CPU power connector (4+4 pin)
  Yes
• Cabling type
  Non-Modular
• Motherboard power connector
  20+4 pin ATX
