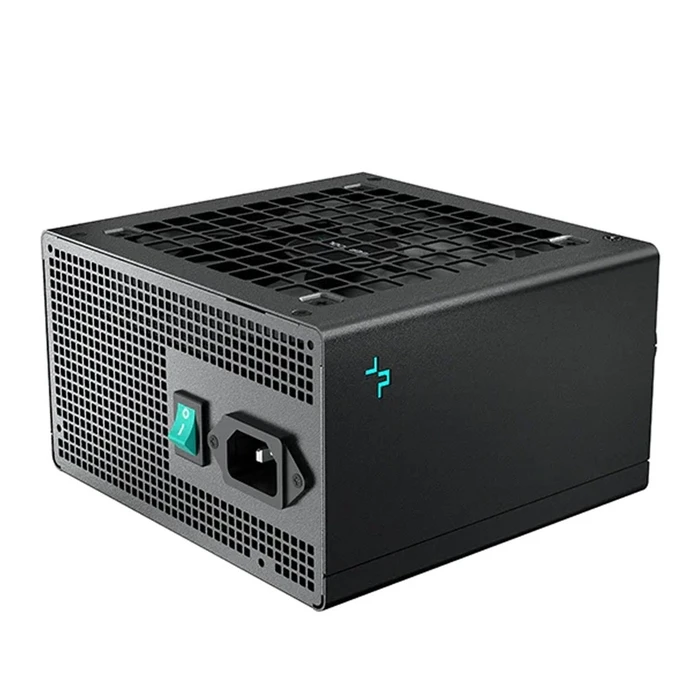

Τροφοδοτικό Υπολογιστή 550W Deepcool PK550D Bronze

Technical Specifications

• On/off switch
  Yes
• Cooling type
  Active
• Fan location
  Top
• Product colour
  Black
• Fan diameter
  12 cm
• Number of fans
  1 fan(s)
• Max output current (+5V)
  20 A
• Power protection features
  Surge & inrush protection (SIP)
• Efficiency
  85%
• Max output current (+12V)
  45,5 A
• Combined power (+12V)
  546 W
• Power Factor Correction (PFC) type
  Active
• Max output current (+3.3V)
  20 A
• Combined power (+3.3V)
  110 W
• Hold time
  16 ms
• Total power
  550 W
• Combined power (-12V)
  3.6 W
• AC input voltage
  100 - 240 V
• AC input frequency
  50/60 Hz
• Max output current (-12V)
  0.3 A
• Combined power (+5V)
  110 W
• Max output current (+5Vsb)
  2.5 A
• Power Good signal delay range
  100 - 150 ms
• Operating temperature (T-T)
  0 - 40 °C
• Width
  150 mm
• Height
  86 mm
• Depth
  140 mm
• Power supply unit (PSU) form factor
  ATX
• Purpose
  PC
• Bearing technology
  HDB
• 80 PLUS certification
  80 PLUS Bronze
• Mean time between failures (MTBF)
  100000 h
• ATX version
  2.4
• Package type
  Box
• Compliance certificates
  WEEE
• Motherboard power cable length
  50 cm
• Cabling type
  Non-Modular
• Motherboard power connector
  24-pin ATX
