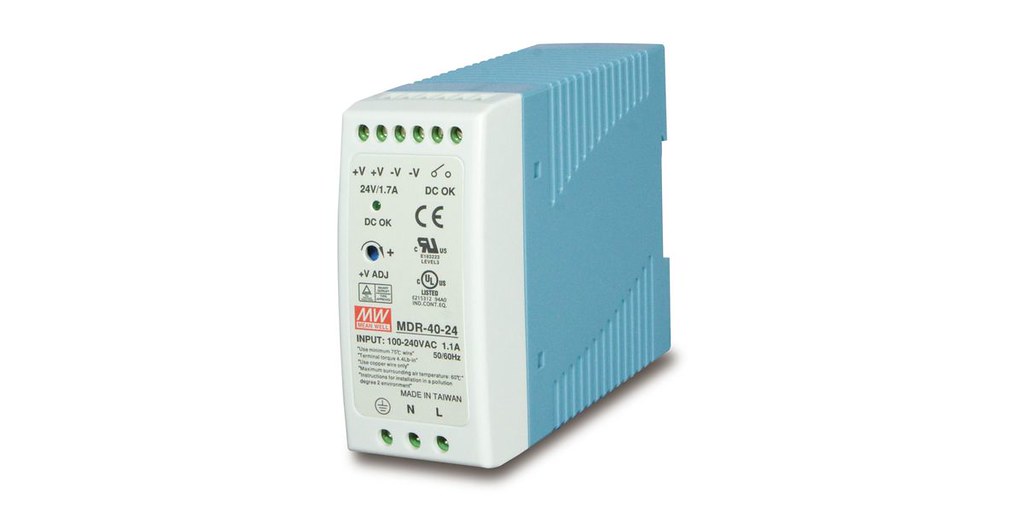

Τροφοδοτικό Ράγας Planet Din-Rail Power Supply (PWR-40-24) 40 watts, 24V, 1

The Planet Din-Rail Power Supply (PWR-40-24) is a reliable solution for industrial power requirements. With a robust design, it ensures stable operation under various conditions, making it ideal for applications in challenging environments.With features such as:Power Output: Capable of delivering...

Τροφοδοτικό Ράγας Planet Din-Rail Power Supply (PWR-40-24) 40 watts, 24V, 1

Name: Τροφοδοτικό Ράγας Planet Din-Rail Power Supply (PWR-40-24) 40 watts, 24V, 1
Brand: Planet
SKU: 1117603053
Price: 38.15 EUR
Availability: OutOfStock

Product Code: 1117603053

Available in 1 - 3 days

38,15 €

1,19€ / month

εως 36 δόσεις με πιστωτική κάρτα

Quantity:

Add

Need Help? Fill in your details so we can call you immediately!

Πιστωτική Κάρτα

See the monthly installment options.

Buy now, pay later με tbi bank

4 installments 0% επιτόκιο, 20€ έως 300€

3 to 60 installments 300€ έως 100.00€

The Planet Din-Rail Power Supply (PWR-40-24) is a reliable solution for industrial power requirements. With a robust design, it ensures stable operation under various conditions, making it ideal for applications in challenging environments.

With features such as:

Power Output: Capable of delivering 40 watts.
Output Voltage: A stable 24V DC, which can be adjusted from 24V to 30V.
Wide Input Voltage Range: AC input ranging from 100-240V.
Operating Temperature: Reliable performance from -20°C to +70°C.

Protection features including short circuit and overload safeguards enhance its reliability. Additionally, it supports both AC and DC inputs, making it versatile for use in various settings.

Designed to be compact, its dimensions make installation on standard DIN rails straightforward. Its rugged construction and passive cooling design ensure longevity and efficiency, particularly in industrial applications such as Ethernet switches and control systems.

Power Output

40 watts
Output Voltage

24V DC (adjustable from 24V to 30V)
Output Current

1.7A
Input Voltage Range

100-240V AC, 50/60Hz
Input Current

1.1A
Operating Temperature Range

-20°C to +70°C
Protections

Short circuit, overload, over-voltage
Cooling

Passive cooling
Compliance

NEC Class 2 / LPS
Operating Humidity

20% to 90%
Unit Dimensions

40 x 100 x 90 mm
Mounting

DIN rail mountable

Ratings

How do you rate this product?

0/5

Description

With features such as:

Power Output: Capable of delivering 40 watts.
Output Voltage: A stable 24V DC, which can be adjusted from 24V to 30V.
Wide Input Voltage Range: AC input ranging from 100-240V.
Operating Temperature: Reliable performance from -20°C to +70°C.

Protection features including short circuit and overload safeguards enhance its reliability. Additionally, it supports both AC and DC inputs, making it versatile for use in various settings.

Technical Specifications

Power Output

40 watts
Output Voltage

24V DC (adjustable from 24V to 30V)
Output Current

1.7A
Input Voltage Range

100-240V AC, 50/60Hz
Input Current

1.1A
Operating Temperature Range

-20°C to +70°C
Protections

Short circuit, overload, over-voltage
Cooling

Passive cooling
Compliance

NEC Class 2 / LPS
Operating Humidity

20% to 90%
Unit Dimensions

40 x 100 x 90 mm
Mounting

DIN rail mountable
