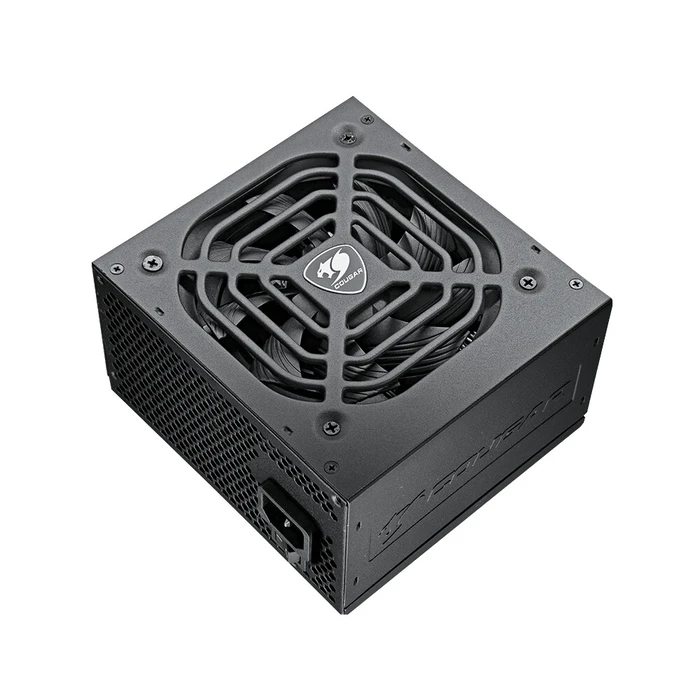

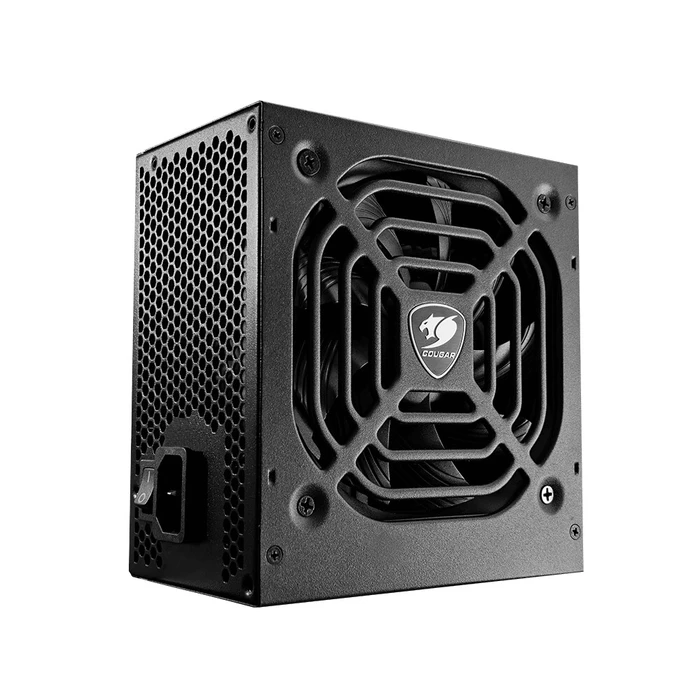

The 600W Cougar STC ATX / 80 Plus 230V EU is a reliable power supply unit designed specifically for desktop PCs. With an output of 600-watts, it complies with the 80 Plus White efficiency certification, ensuring that it operates with high efficiency around 86%.
This PSU provides stable and flawless power delivery, characterized by its robust protections and well-thought-out design. Here are some key features:
- Input Voltage: 200-240V AC, 50 Hz
- Rated Input Current: 5A
- Active Power Factor Correction (PFC): Yes
- Wide Protection Features:
- Over Power Protection (OPP)
- Over Current Protection (OCP)
- Over Voltage Protection (OVP)
- Under Voltage Protection (UVP)
- Short Circuit Protection (SCP)
The PSU also offers multiple DC output rails to accommodate various components:
| Output Voltage | Maximum Current | Maximum Power |
|---|---|---|
| +3.3V | 18A | 130W |
| +5V | 20A | |
| +12V | 49A | 588W (combined) |
| -12V | 0.3A | |
| +5Vsb | 3A |
Cooling is handled by a 120mm fan, designed to provide efficient heat dissipation while maintaining low noise levels. The unit is built with high-quality components, including 105°C Japanese capacitors, ensuring durability and an extended lifespan.
In conclusion, the Cougar STC 600W PSU stands out for its balance of efficiency, safety, and performance, making it a solid choice for upgrading or building a reliable desktop PC.
-
Input Voltage200-240V AC
-
Rated Input Current5A
-
Efficiency Certification80 Plus White
-
Active Power Factor CorrectionYes
-
Protection FeaturesOPP, OCP, OVP, UVP, SCP
-
DC Output +3.3V18A, 130W
-
DC Output +5V20A
-
DC Output +12V49A, 588W
-
DC Output -12V0.3A
-
DC Output +5Vsb3A
-
24-pin Connector Count1
-
8-pin CPU Connector Count1
-
P-ATA (Molex) Connector Count2
-
SATA Connector Count6
-
PCI-E Connector Count2
-
120mm FanYes
-
Dimensions150 x 86 x 140 mm
-
Capacitors105°C Japanese
-
Warranty24 months
Ratings
Description
The 600W Cougar STC ATX / 80 Plus 230V EU is a reliable power supply unit designed specifically for desktop PCs. With an output of 600-watts, it complies with the 80 Plus White efficiency certification, ensuring that it operates with high efficiency around 86%.
This PSU provides stable and flawless power delivery, characterized by its robust protections and well-thought-out design. Here are some key features:
- Input Voltage: 200-240V AC, 50 Hz
- Rated Input Current: 5A
- Active Power Factor Correction (PFC): Yes
- Wide Protection Features:
- Over Power Protection (OPP)
- Over Current Protection (OCP)
- Over Voltage Protection (OVP)
- Under Voltage Protection (UVP)
- Short Circuit Protection (SCP)
The PSU also offers multiple DC output rails to accommodate various components:
| Output Voltage | Maximum Current | Maximum Power |
|---|---|---|
| +3.3V | 18A | 130W |
| +5V | 20A | |
| +12V | 49A | 588W (combined) |
| -12V | 0.3A | |
| +5Vsb | 3A |
Cooling is handled by a 120mm fan, designed to provide efficient heat dissipation while maintaining low noise levels. The unit is built with high-quality components, including 105°C Japanese capacitors, ensuring durability and an extended lifespan.
In conclusion, the Cougar STC 600W PSU stands out for its balance of efficiency, safety, and performance, making it a solid choice for upgrading or building a reliable desktop PC.
Technical Specifications
-
Input Voltage200-240V AC
-
Rated Input Current5A
-
Efficiency Certification80 Plus White
-
Active Power Factor CorrectionYes
-
Protection FeaturesOPP, OCP, OVP, UVP, SCP
-
DC Output +3.3V18A, 130W
-
DC Output +5V20A
-
DC Output +12V49A, 588W
-
DC Output -12V0.3A
-
DC Output +5Vsb3A
-
24-pin Connector Count1
-
8-pin CPU Connector Count1
-
P-ATA (Molex) Connector Count2
-
SATA Connector Count6
-
PCI-E Connector Count2
-
120mm FanYes
-
Dimensions150 x 86 x 140 mm
-
Capacitors105°C Japanese
-
Warranty24 months
