Τροφοδοτικό 550W Chieftec CSN-550C (80+Gold)
| Installment plan | Amount / month |
|---|---|
| 2 | 55,84 € |
| 4 | 28,07 € |
| 6 | 18,81 € |
| 8 | 14,18 € |
| 10 | 11,41 € |
| 12 | 9,56 € |
| 18 | 6,47 € |
| 24 | 4,93 € |
| 36 | 3,39 € |
για καλύτερη τιμή!
Συμπλήρωσε τα στοιχεία σου για να σε καλέσουμε άμεσα.
-
Pickup from the store:El. Ave. Venizelou 73 (formerly Theseos), Kallithea
-
Pick up from a BoxNow machine:With BoxNow you can pick up your parcel from an Automatic Pickup Machine that is near you at all hours of the day 24/7. Possibility of cash on delivery with an additional fee of €1
-
Shipping to your location (Calculate shipping):
Detailed Description

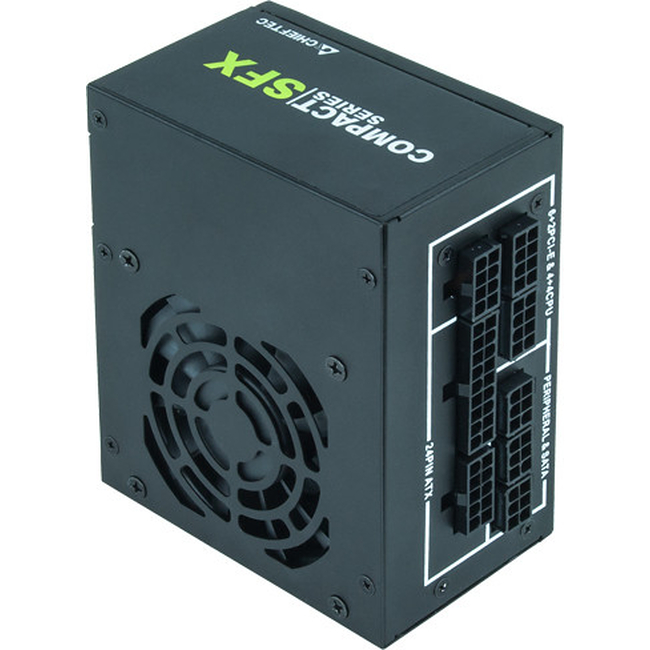

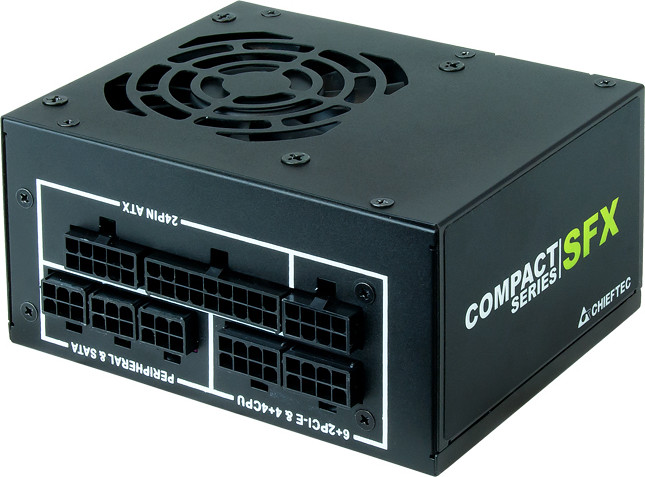

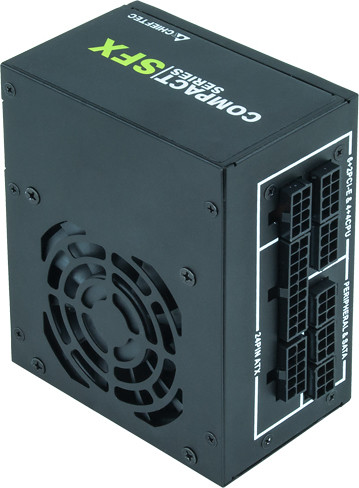

The Chieftec CSN-550C is a compact, high-efficiency 550W power supply unit featuring the 80 PLUS Gold certification, ensuring up to 90% energy efficiency.
Designed for compact gaming and workstation PCs, it supports 100 - 240 V AC input voltage and operates within a frequency range of 47 - 63 Hz. With an input current of 6 A, this power supply is built to perform at high standards.
Its small SFX form factor comes with dimensions of 125 mm (width) x 100 mm (depth) x 64 mm (height), making it perfect for mini-ITX and small form factor cases.
The efficient 80 mm ultra-silent fan ensures optimal cooling while operating quietly, even under demanding conditions such as running two graphics cards in SLI or CrossFire configurations.
Key Features:
- Strong power delivery on all rails:
- +12V rail delivers up to 45.8 A
- +3.3V rail up to 18 A
- +5V rail up to 15 A
- +5Vsb (standby) up to 3 A
- -12V rail up to 0.3 A
It also incorporates active Power Factor Correction (PFC) with a power factor of 0.9, enhancing power quality. Comprehensive safety protections ensure reliable operation. With a total output power of 550 W and fully modular cables, cable management is made easy for improved airflow and aesthetics.
Specifications
-
Maximum Power Output
- 550 W
-
Efficiency Certification
- 80 PLUS Gold (~90% efficiency)
-
Input Voltage
- 100 - 240 V AC
-
Input Frequency
- 47 - 63 Hz
-
Input Current
- 6 A
-
+12V Maximum Current
- 45.8 A
-
+5V Maximum Current
- 15 A
-
+3.3V Maximum Current
- 18 A
-
+5Vsb Maximum Current
- 3 A
-
-12V Maximum Current
- 0.3 A
-
Power Factor Correction
- Active, 0.9 power factor
-
Form Factor
- SFX (Compact)
-
Dimensions
- 125 mm x 100 mm x 64 mm
-
Cooling Fan
- 80 mm ultra-silent
-
Modular Cable System
- Fully modular ribbon cables
-
Protection Features
- Overcurrent, Overvoltage, Overheating, Overload, Short Circuit, Undervoltage
Άμεσα Διαθέσιμα
