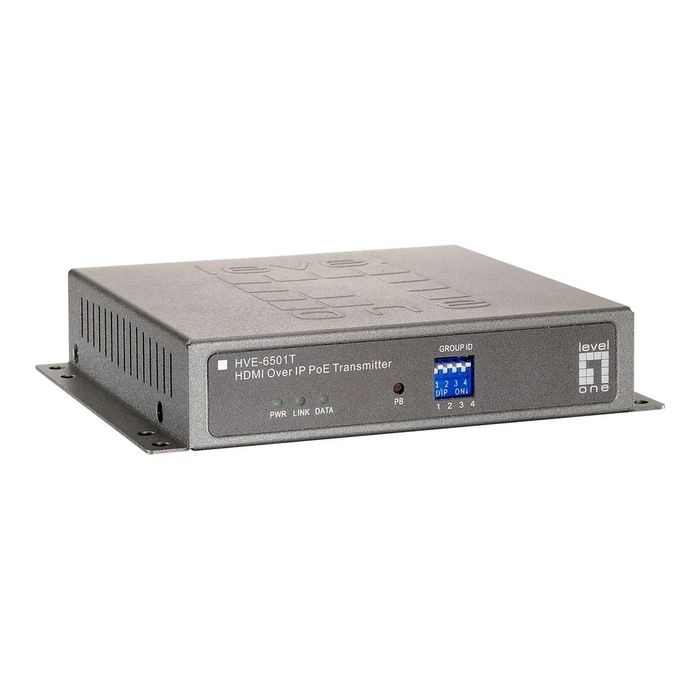

Transmitter LevelOne HDMI HVE-6501T over IP PoE Video Exe.

Technical Specifications

• Device type
  Video extender (transmitter)
• Form factor
  External
• Connection technology
  Wired
• Wiring type
  100Base-TX, 1000Base-T
• Data Link Protocol
  100Mb LAN, GigE
• Max resolution
  1920x1080 / 1080p @ 60Hz
• Status indicator
  Power supply, link/activity
• Performance characteristics
  HDCP compatible, serial connection and power supply via Ethernet (SPOE), integrated DIP switch
• Product certifications
  IEEE 802.3af, HDCP 1.2
• Interfaces
  1 x HDMI (input) female 1 x Network - RJ-45 female 1 x Serial - RS-232 input - D-Sub (DB-9), 9-pin female
• Labelling
  FCC
• Power over Ethernet (PoE)
  PoE
• Power supply device
  External power adapter
• Power consumption during operation
  8 watts
• Software included
  Drivers & Utilities
• Width
  14cm
• depth
  11.4cm
• Height
  2.8cm
• Weight
  0.8kg
• Min operating temperature
  0°C
• Max. operating temperature
  50°C
• Permissible humidity during operation
  10 85% (non-condensing)
• developed for
  LevelOne GEP-2450
