Transceiver Zyxel 100G QSFP28 ShortRange Modul 850nm
| Installment plan | Amount / month |
|---|---|
| 2 | 89,01 € |
| 4 | 44,74 € |
| 6 | 29,99 € |
| 8 | 22,61 € |
| 10 | 18,18 € |
| 12 | 15,23 € |
| 18 | 10,32 € |
| 24 | 7,86 € |
| 36 | 5,40 € |
για καλύτερη τιμή!
Συμπλήρωσε τα στοιχεία σου για να σε καλέσουμε άμεσα.
-
Pickup from the store:El. Ave. Venizelou 73 (formerly Theseos), Kallithea
-
Pick up from a BoxNow machine:With BoxNow you can pick up your parcel from an Automatic Pickup Machine that is near you at all hours of the day 24/7. Possibility of cash on delivery with an additional fee of €1
-
Shipping to your location (Calculate shipping):
Detailed Description

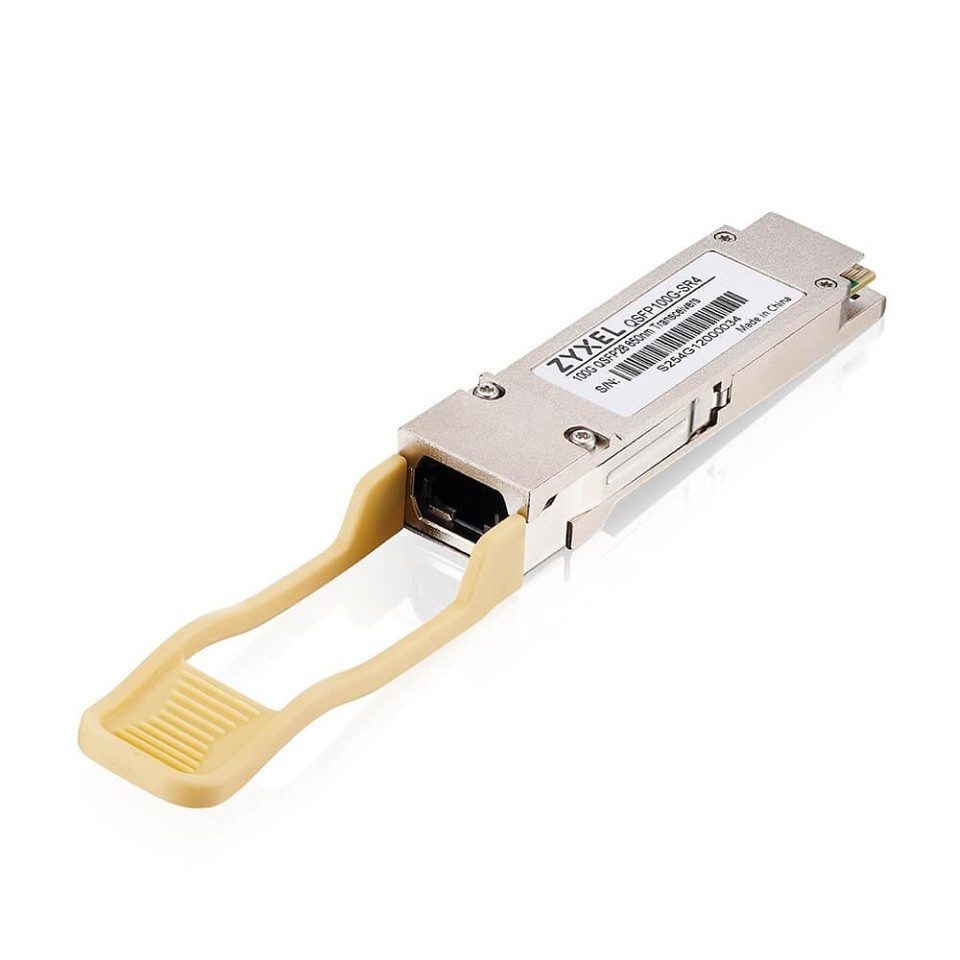

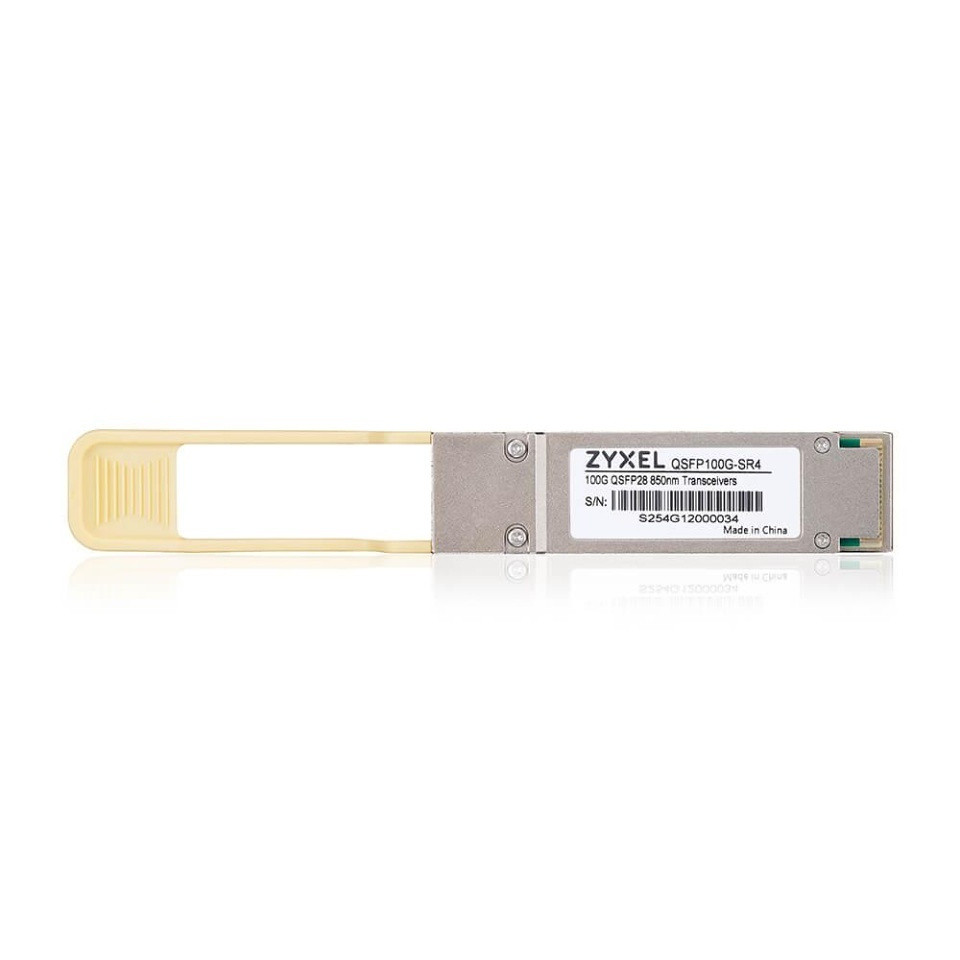

The Zyxel 100G QSFP28 ShortRange Module 850nm (MPN: QSFP100G-SR4-ZZ0101F, EAN: 4718937649518) is a high-performance optical transceiver designed specifically for short-range 100 Gigabit Ethernet data transmission over multimode fiber. This state-of-the-art module supports a data transfer rate of up to 100 Gbit/s, utilizing the QSFP28 form factor and an 850 nm VCSEL laser.
Key features include:
- Transmission Distance: Up to 100 meters on OM4 multimode fiber
- Connector Type: MTP/MPO 12-fiber interface for efficient data transfer
- Operating Temperature: From 0°C to +70°C
Designed to be hot-pluggable, the module is compatible with various networking equipment including switches, routers, and gateways.
This short-range module not only ensures high bandwidth but also operates with low power consumption, drawing less than 2 watts.
Overall, the Zyxel 100G QSFP28 SR4 module combines performance, reliability, and cost-effectiveness, making it an ideal choice for modern data center environments and enterprise networks.
Specifications
-
Form Factor
- QSFP28
-
Wavelength
- 850 nm (multimode)
-
Transmission Distance OM4
- 100 meters
-
Transmission Distance OM3
- 70 meters
-
Connector Type
- MTP/MPO 12-fiber
-
Data Rate
- 100 Gbit/s
-
Laser Type
- VCSEL
-
Receiver
- PIN photodiode
-
Power Consumption
- Less than 2 Watts
-
Operating Temperature
- 0°C to +70°C
-
Digital Diagnostic Monitoring (DDM)
- Supported
-
Compliance
- MSA compliant, RoHS compliant
-
Applications
- High-speed core router interlinks, data center aggregation
