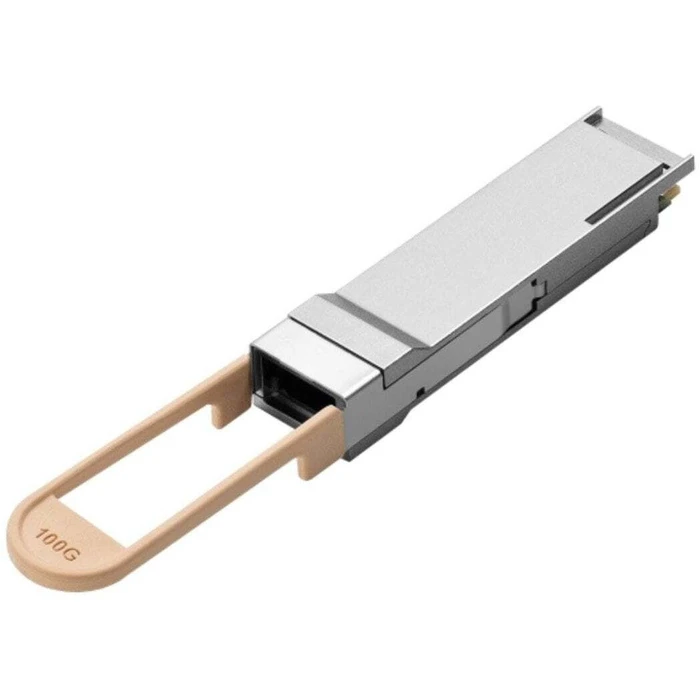

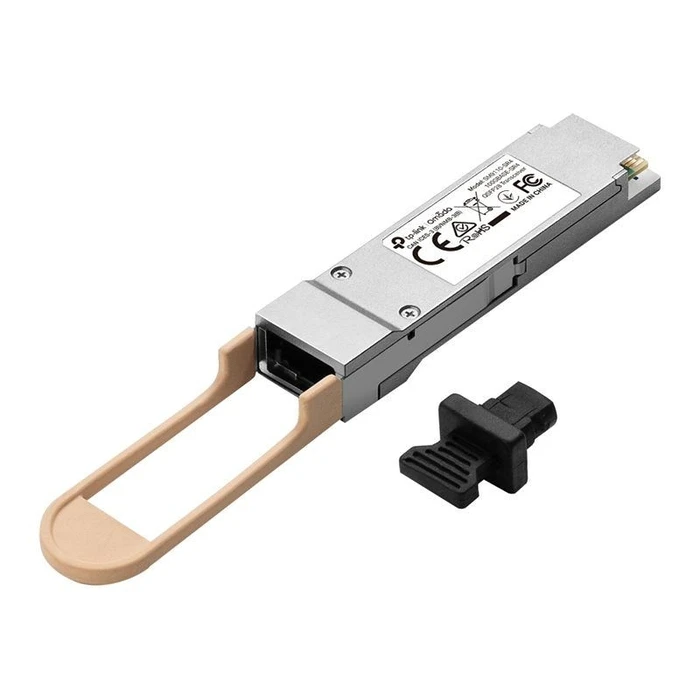

Transceiver TP-Link Omada 100GBASE-SR4 QSFP28
εως 36 δόσεις με πιστωτική κάρτα
Need Help? Fill in your details so we can call you immediately!
Έως 36 Δόσεις. Δείτε το πλάνο δόσεων:
TBI Bank
Buy Now Pay Later.
4 installments 0% επιτόκιο, 20€ έως 300€
3 to 60 installments 300€ έως 100.00€
- 1. Ship with ACS Courier
- 2. Αποστολές με μεταφορικές εταιρίες για ογκώδη αντικείμενα
-
3. Pickup from BoxNow automated machine:
Με την BoxNow μπορείς να παραλάβεις το δέμα σου από Αυτόματο Μηχάνημα Παραλαβής που βρίσκεται κοντά σου, όλες τις ώρες της ημέρας 24/7. Η υπηρεσία έχει χρέωση 3€. Υπάρχει δυνατότητα αντικαταβολής με επιπλέον χρέωση 1€.
-
4. Pickup from the store:
Leof. El. Venizelou 73 (former Theseos), Kallithea
Συμπληρώστε τον ταχυδρομικό κωδικό για να λάβετε εκτίμηση τρόπου και κόστους μεταφορικών.
Related Products
Αξεσουάρ Δικτύου Mikrotik Net Router Iot Gateway LTE4 Knot Ec25-Eu&Kne
Transceiver Teltonika Net Transceiver 1.25GB S Sfp 20Km Bidi Pr4Lc21K
Keystone Digitus RJ45-Stecker Cat6a for field applications Unshielded
The TP-Link Omada 100GBASE-SR4 QSFP28 Transceiver is designed for ultra-fast Ethernet connectivity, specifically tailored for data centers and enterprise networks. Its performance is pivotal for high-bandwidth applications.
With dual data rates of 103.125 Gbps for 100G and 41.2 Gbps for 40G, this transceiver is fully compliant with QSFP28 MSA standards, ensuring broad compatibility.
Key Features:
- Form Factor: QSFP28
- Data Rates:
- 103.125 Gbps (4 lanes @ 25.78 Gbps each)
- 41.2 Gbps (4 lanes @ 10.3 Gbps each)
- Operating Wavelength: 850 nm VCSEL
- Connector: MTP/MPO-12
- Hot-Pluggable: Yes
Its design allows for operational flexibility, as the transceiver can be changed without powering down the system. This feature enhances the reliability and maintenance of network operations.
Moreover, with an operating temperature range of 0°C to 70°C and storage temperatures from -40°C to 85°C, it is built to withstand diverse environmental conditions.
-
Form FactorQSFP28
-
Data Rates 100G103.125 Gbps
-
Data Rates 40G41.2 Gbps
-
Operating Wavelength850 nm
-
Fiber TypeMulti-mode fiber (MMF) 50/125 µm
-
Maximum Transmission Distance 100G OM370 meters
-
Maximum Transmission Distance 100G OM4100 meters
-
Maximum Transmission Distance 40G OM3100 meters
-
Maximum Transmission Distance 40G OM4150 meters
-
ConnectorMTP/MPO-12
-
Transmitter Power 100G-8.4 to 2.4 dBm
-
Transmitter Power 40G-7.6 to 2.4 dBm
-
Receiver Sensitivity 100G< -10.3 dBm
-
Receiver Sensitivity 40G< -9.5 dBm
-
Receiver Overload> 2.4 dBm
-
Extinction Ratio 100G> 2 dB
-
Extinction Ratio 40G> 3 dB
-
Digital Diagnostic MonitoringSupported
-
Hot-PluggableYes
-
Operating Temperature0°C to 70°C
-
Storage Temperature-40°C to 85°C
-
Operating Humidity0% to 85%
-
Power Supply3.3 V
-
ComplianceFCC, CE, RoHS
-
Physical Dimensions18.35 mm height × 124 mm length × 11.7 mm width
Ratings
Description
The TP-Link Omada 100GBASE-SR4 QSFP28 Transceiver is designed for ultra-fast Ethernet connectivity, specifically tailored for data centers and enterprise networks. Its performance is pivotal for high-bandwidth applications.
With dual data rates of 103.125 Gbps for 100G and 41.2 Gbps for 40G, this transceiver is fully compliant with QSFP28 MSA standards, ensuring broad compatibility.
Key Features:
- Form Factor: QSFP28
- Data Rates:
- 103.125 Gbps (4 lanes @ 25.78 Gbps each)
- 41.2 Gbps (4 lanes @ 10.3 Gbps each)
- Operating Wavelength: 850 nm VCSEL
- Connector: MTP/MPO-12
- Hot-Pluggable: Yes
Its design allows for operational flexibility, as the transceiver can be changed without powering down the system. This feature enhances the reliability and maintenance of network operations.
Moreover, with an operating temperature range of 0°C to 70°C and storage temperatures from -40°C to 85°C, it is built to withstand diverse environmental conditions.
Technical Specifications
-
Form FactorQSFP28
-
Data Rates 100G103.125 Gbps
-
Data Rates 40G41.2 Gbps
-
Operating Wavelength850 nm
-
Fiber TypeMulti-mode fiber (MMF) 50/125 µm
-
Maximum Transmission Distance 100G OM370 meters
-
Maximum Transmission Distance 100G OM4100 meters
-
Maximum Transmission Distance 40G OM3100 meters
-
Maximum Transmission Distance 40G OM4150 meters
-
ConnectorMTP/MPO-12
-
Transmitter Power 100G-8.4 to 2.4 dBm
-
Transmitter Power 40G-7.6 to 2.4 dBm
-
Receiver Sensitivity 100G< -10.3 dBm
-
Receiver Sensitivity 40G< -9.5 dBm
-
Receiver Overload> 2.4 dBm
-
Extinction Ratio 100G> 2 dB
-
Extinction Ratio 40G> 3 dB
-
Digital Diagnostic MonitoringSupported
-
Hot-PluggableYes
-
Operating Temperature0°C to 70°C
-
Storage Temperature-40°C to 85°C
-
Operating Humidity0% to 85%
-
Power Supply3.3 V
-
ComplianceFCC, CE, RoHS
-
Physical Dimensions18.35 mm height × 124 mm length × 11.7 mm width
