Transceiver TP-Link 8-Pack 1G Lr Sfp Module
εως 36 δόσεις με πιστωτική κάρτα
Need Help? Fill in your details so we can call you immediately!
4 installments 0% επιτόκιο, 20€ έως 300€
3 to 60 installments 300€ έως 100.00€
σε όλη την Ελλάδα
Related Products
Transceiver TP-Link ISM311LM network Fiber optic 1.25 Mbit/s SFP 850 nm
Converter TP-Link Omada MC211CS-2 network media 1000 Mbit/s 1310 nm Single-mode Black
Converter TP-Link Omada MC212CS-2 network media 1000 Mbit/s 1550 nm Single-mode Black
Converter Planet 4-Port 1G Ethernet PoE to VDSL2 Extender IVC-234GPT
Converter Planet 10/100TX - 100Base-FX (SC) Single Mode Bridge Fiber

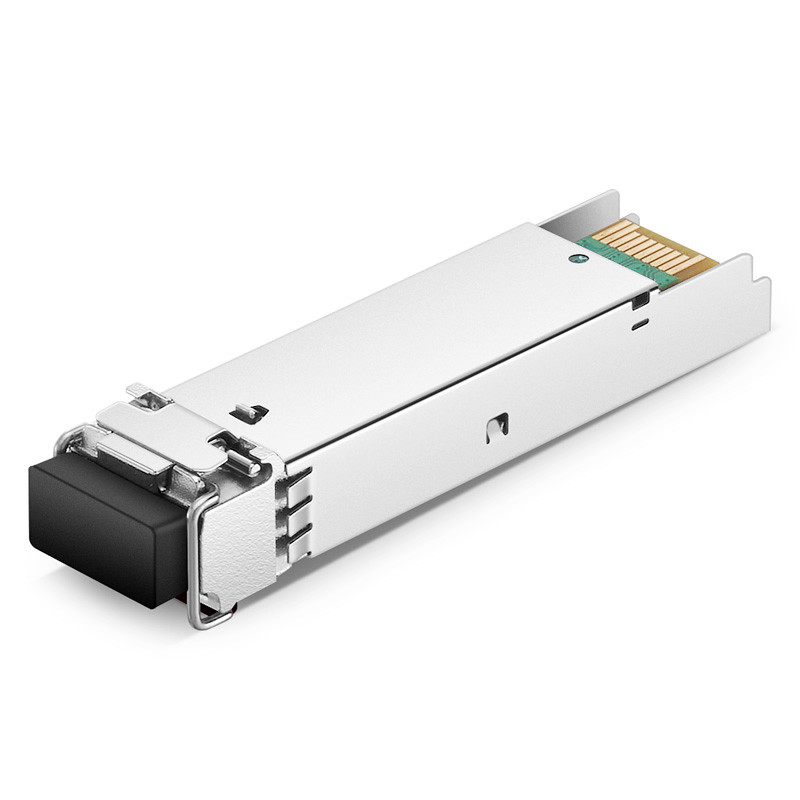

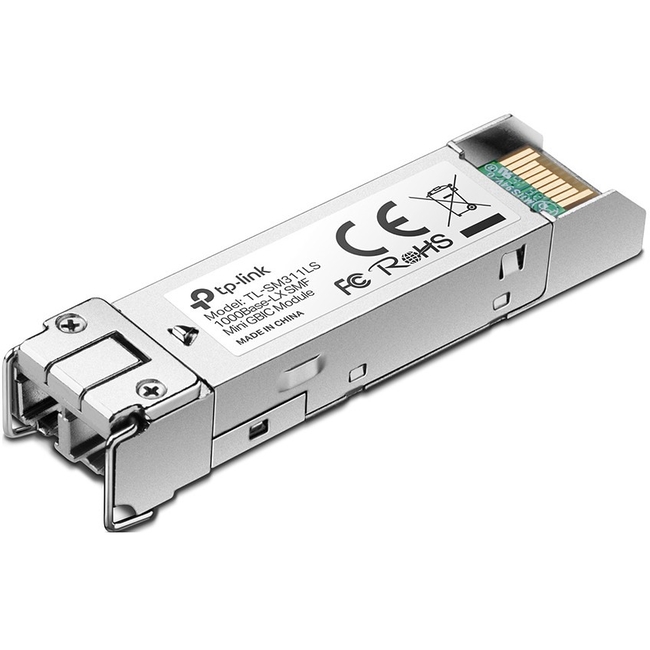

The 8-PACK 1G LR SFP Module is a high-performance fiber optic transceiver solution perfect for extending network distances over single-mode fiber. This product consists of an 8-pack bundle of the TP-Link TL-SM311LS MiniGBIC modules, providing a cost-effective, scalable method to upgrade or expand network infrastructure that requires reliable longer-range data transmission.
Each module in this series is a single-mode SFP transceiver designed for use in TP-Link managed and smart switches. These modules facilitate fiber optic connections with transmission distances up to 20 km (12.4 miles), easily meeting high-speed LAN requirements.
Noteworthy features include:
- Designed to operate with a wavelength of 1310nm and support full-duplex communications at a data rate of 1.25 Gbps.
- Hot-pluggable functionality for easy installation or replacement without powering down the system.
Additionally, these modules are built to withstand varying environmental conditions, operating reliably in temperatures from 0°C to 70°C (32°F to 158°F) and supporting humidity levels between 10% to 90% non-condensing.
The 8-PACK 1G LR SFP Module is an ideal choice for those seeking to enhance their fiber network's capacity and reach with gigabit speed.
-
Standard & ProtocolsIEEE 802.3z, CSMA/CD, TCP/IP
-
Data Rate1.25 Gbps (Gigabit Ethernet)
-
Transmission DistanceUp to 20 km
-
Fiber Type9/125 μm Single-mode fiber
-
Wavelength1310 nm
-
Connector TypeDuplex LC/UPC
-
Power Supply3.3 V
-
Operating Temperature0°C to 70°C
-
Storage Temperature-40°C to 80°C
-
Operating Humidity10% to 90% non-condensing
-
Storage Humidity5% to 90% non-condensing
-
ComplianceFCC, CE
-
Hot-PluggableYes
-
Digital Diagnostics (DDM)Supported
Ratings
Description
The 8-PACK 1G LR SFP Module is a high-performance fiber optic transceiver solution perfect for extending network distances over single-mode fiber. This product consists of an 8-pack bundle of the TP-Link TL-SM311LS MiniGBIC modules, providing a cost-effective, scalable method to upgrade or expand network infrastructure that requires reliable longer-range data transmission.
Each module in this series is a single-mode SFP transceiver designed for use in TP-Link managed and smart switches. These modules facilitate fiber optic connections with transmission distances up to 20 km (12.4 miles), easily meeting high-speed LAN requirements.
Noteworthy features include:
- Designed to operate with a wavelength of 1310nm and support full-duplex communications at a data rate of 1.25 Gbps.
- Hot-pluggable functionality for easy installation or replacement without powering down the system.
Additionally, these modules are built to withstand varying environmental conditions, operating reliably in temperatures from 0°C to 70°C (32°F to 158°F) and supporting humidity levels between 10% to 90% non-condensing.
The 8-PACK 1G LR SFP Module is an ideal choice for those seeking to enhance their fiber network's capacity and reach with gigabit speed.
Technical Specifications
-
Standard & ProtocolsIEEE 802.3z, CSMA/CD, TCP/IP
-
Data Rate1.25 Gbps (Gigabit Ethernet)
-
Transmission DistanceUp to 20 km
-
Fiber Type9/125 μm Single-mode fiber
-
Wavelength1310 nm
-
Connector TypeDuplex LC/UPC
-
Power Supply3.3 V
-
Operating Temperature0°C to 70°C
-
Storage Temperature-40°C to 80°C
-
Operating Humidity10% to 90% non-condensing
-
Storage Humidity5% to 90% non-condensing
-
ComplianceFCC, CE
-
Hot-PluggableYes
-
Digital Diagnostics (DDM)Supported
