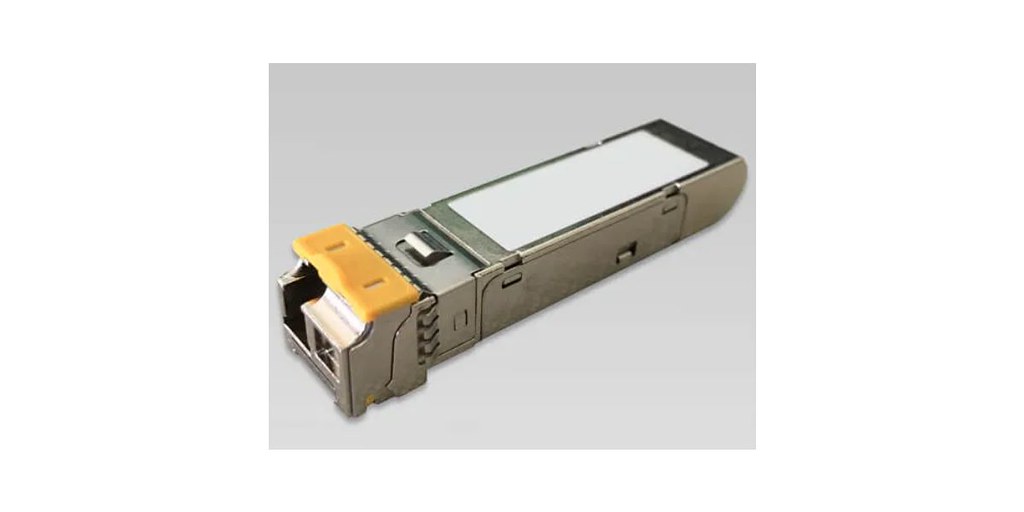

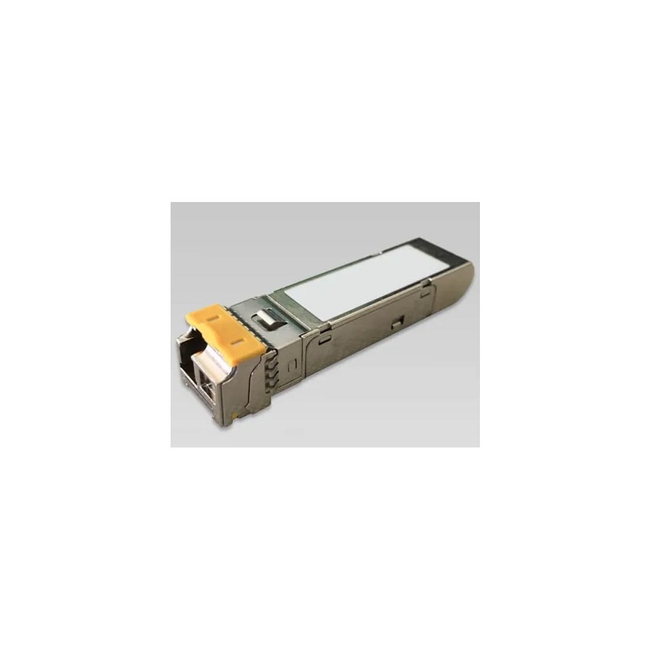

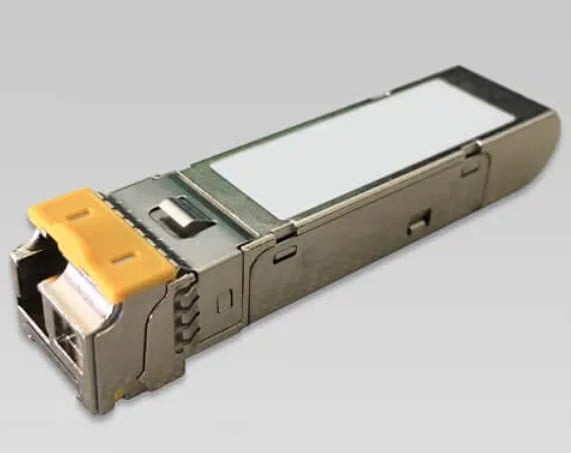

Transceiver Planet Mini GBIC WDM TX1550 Module - 2KM MGB-TSB
εως 36 δόσεις με πιστωτική κάρτα
Need Help? Fill in your details so we can call you immediately!
Πιστωτική Κάρτα
Buy now, pay later με tbi bank
4 installments 0% επιτόκιο, 20€ έως 300€
3 to 60 installments 300€ έως 100.00€
σε όλη την Ελλάδα
Related Products
Transceiver TP-Link ISM311LM network Fiber optic 1.25 Mbit/s SFP 850 nm
Converter TP-Link Omada MC211CS-2 network media 1000 Mbit/s 1310 nm Single-mode Black
Converter TP-Link Omada MC212CS-2 network media 1000 Mbit/s 1550 nm Single-mode Black
Converter Planet 4-Port 1G Ethernet PoE to VDSL2 Extender IVC-234GPT
The Planet MGB-TSB is a high-performance fiber transceiver module specifically engineered for industrial-grade Gigabit Ethernet networks. This compact Mini GBIC module excels in environments requiring reliable and high-speed data transmission over multi-mode fiber optic cables, even under harsh conditions.
Utilizing Wavelength Division Multiplexing (WDM) technology, the MGB-TSB allows for bi-directional communication over a single fiber strand. Important features include:
- Transmit Wavelength: 1550 nm
- Receive Wavelength: 1310 nm
- Data Rate: Up to 1000 Mbps (1 Gbps)
- Maximum Transmission Distance: 2 kilometers
This module is hot-pluggable, ensuring quick and easy installation and replacement without disrupting network operations. It is compatible with various PLANET Industrial Switches, Media Converters, and third-party equipment that supports SFP interfaces. Furthermore, the MGB-TSB supports Digital Diagnostic Monitoring (DDM), enabling real-time tracking of critical parameters like temperature, voltage, and optical power.
-
ModelMGB-TSB
-
MPNMGB-TSB
-
EAN4711605284387
-
PHY Type1000BASE-BX
-
Fiber TypeMulti-Mode
-
ConnectorLC Duplex
-
Wavelength Transmit (TX)1550 nm
-
Wavelength Receive (RX)1310 nm
-
Maximum Distance2 km
-
Data Rate1000 Mbps (1 Gbps)
-
Operating Temperature-40°C to +75°C
-
DDM SupportYes
-
ComplianceIEEE 802.3ab/802.3z Gigabit Ethernet
-
Hot-PluggableYes
-
Form FactorMini GBIC (SFP)
Ratings
Description
The Planet MGB-TSB is a high-performance fiber transceiver module specifically engineered for industrial-grade Gigabit Ethernet networks. This compact Mini GBIC module excels in environments requiring reliable and high-speed data transmission over multi-mode fiber optic cables, even under harsh conditions.
Utilizing Wavelength Division Multiplexing (WDM) technology, the MGB-TSB allows for bi-directional communication over a single fiber strand. Important features include:
- Transmit Wavelength: 1550 nm
- Receive Wavelength: 1310 nm
- Data Rate: Up to 1000 Mbps (1 Gbps)
- Maximum Transmission Distance: 2 kilometers
This module is hot-pluggable, ensuring quick and easy installation and replacement without disrupting network operations. It is compatible with various PLANET Industrial Switches, Media Converters, and third-party equipment that supports SFP interfaces. Furthermore, the MGB-TSB supports Digital Diagnostic Monitoring (DDM), enabling real-time tracking of critical parameters like temperature, voltage, and optical power.
Technical Specifications
-
ModelMGB-TSB
-
MPNMGB-TSB
-
EAN4711605284387
-
PHY Type1000BASE-BX
-
Fiber TypeMulti-Mode
-
ConnectorLC Duplex
-
Wavelength Transmit (TX)1550 nm
-
Wavelength Receive (RX)1310 nm
-
Maximum Distance2 km
-
Data Rate1000 Mbps (1 Gbps)
-
Operating Temperature-40°C to +75°C
-
DDM SupportYes
-
ComplianceIEEE 802.3ab/802.3z Gigabit Ethernet
-
Hot-PluggableYes
-
Form FactorMini GBIC (SFP)
