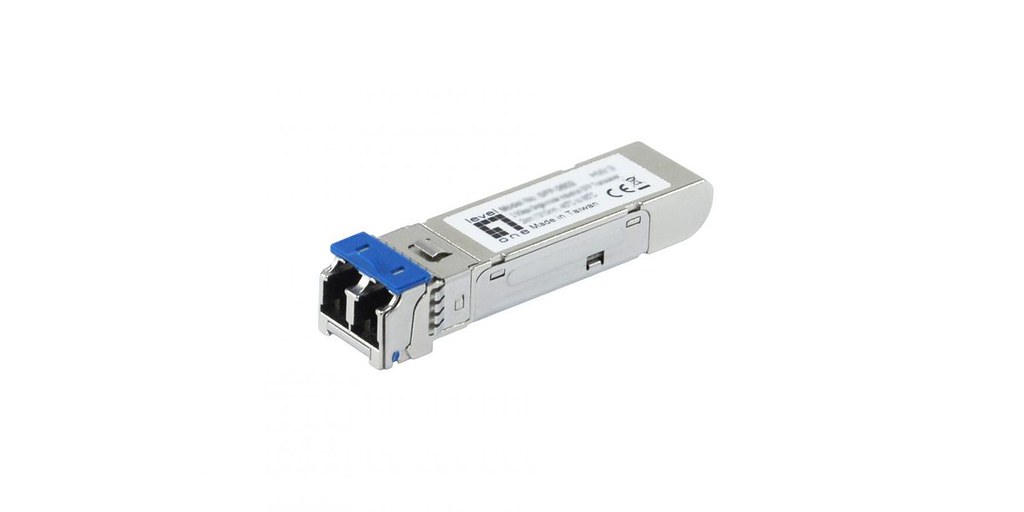

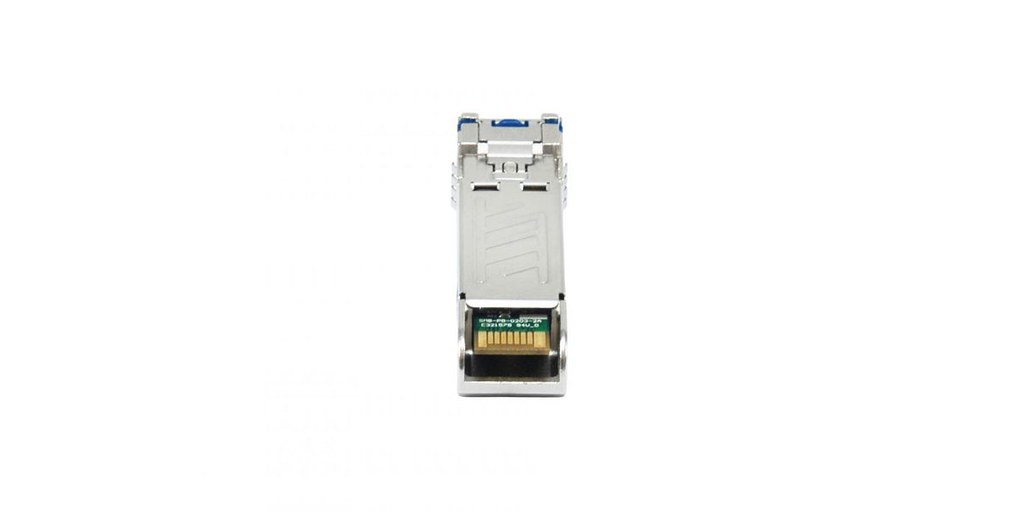

Transceiver LevelOne SFP 2.5Gbps SM Duplex LC 1550nm 80km
εως 36 δόσεις με πιστωτική κάρτα
Need Help? Fill in your details so we can call you immediately!
Πιστωτική Κάρτα
Buy now, pay later με tbi bank
4 installments 0% επιτόκιο, 20€ έως 300€
3 to 60 installments 300€ έως 100.00€
σε όλη την Ελλάδα
Related Products
Transceiver TP-Link ISM311LM network Fiber optic 1.25 Mbit/s SFP 850 nm
Converter TP-Link Omada MC211CS-2 network media 1000 Mbit/s 1310 nm Single-mode Black
Converter TP-Link Omada MC212CS-2 network media 1000 Mbit/s 1550 nm Single-mode Black
Converter Planet 4-Port 1G Ethernet PoE to VDSL2 Extender IVC-234GPT
The LevelOne SFP-2506 is an exceptional SFP transceiver engineered for optimal performance in fiber optic networking applications. Designed for single-mode fiber, it supports data rates of up to 2.5 Gbps, perfect for Gigabit Ethernet and other high-bandwidth environments.
Key Features:
- Data Rate: 2.5 Gbps (2.5GBASE-LX standard)
- Fiber Type: Single-Mode (SM)
- Wavelength: 1550 nm (DFB laser transmitter)
- Connector Type: LC Duplex
- Maximum Transmission Distance: Up to 80 km
- Compatibility: Works with 9/125 µm single-mode fiber cables
- Digital Diagnostics: Yes, for real-time monitoring
Physical Specifications:
- Module Type: SFP
- Dimensions:
- Length: 13.4 mm
- Width: 55.9 mm
- Height: 13 mm
This transceiver provides a reliable and efficient means for high-speed fiber connectivity, ensuring robust performance across various networking applications.
-
Data Rate2.5 Gbps
-
Fiber TypeSingle-Mode
-
Wavelength1550 nm
-
Connector TypeLC Duplex
-
Maximum Transmission Distance80 km
-
Digital DiagnosticsYes
-
Operating Temperature0 to 70 °C
-
Transmitter Output Power-5 dBm to 0 dBm
-
Receiver Sensitivity< -28 dBm
Ratings
Description
The LevelOne SFP-2506 is an exceptional SFP transceiver engineered for optimal performance in fiber optic networking applications. Designed for single-mode fiber, it supports data rates of up to 2.5 Gbps, perfect for Gigabit Ethernet and other high-bandwidth environments.
Key Features:
- Data Rate: 2.5 Gbps (2.5GBASE-LX standard)
- Fiber Type: Single-Mode (SM)
- Wavelength: 1550 nm (DFB laser transmitter)
- Connector Type: LC Duplex
- Maximum Transmission Distance: Up to 80 km
- Compatibility: Works with 9/125 µm single-mode fiber cables
- Digital Diagnostics: Yes, for real-time monitoring
Physical Specifications:
- Module Type: SFP
- Dimensions:
- Length: 13.4 mm
- Width: 55.9 mm
- Height: 13 mm
This transceiver provides a reliable and efficient means for high-speed fiber connectivity, ensuring robust performance across various networking applications.
Technical Specifications
-
Data Rate2.5 Gbps
-
Fiber TypeSingle-Mode
-
Wavelength1550 nm
-
Connector TypeLC Duplex
-
Maximum Transmission Distance80 km
-
Digital DiagnosticsYes
-
Operating Temperature0 to 70 °C
-
Transmitter Output Power-5 dBm to 0 dBm
-
Receiver Sensitivity< -28 dBm
