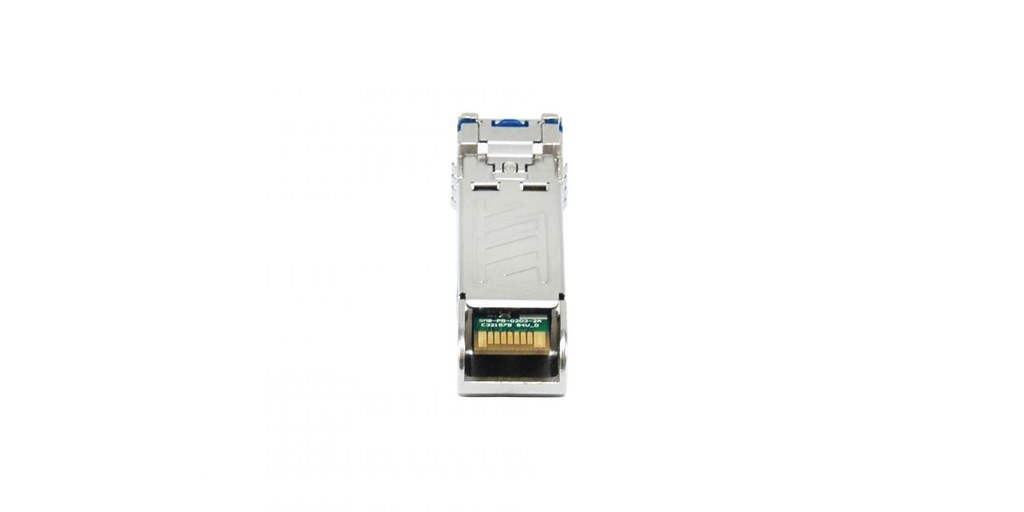

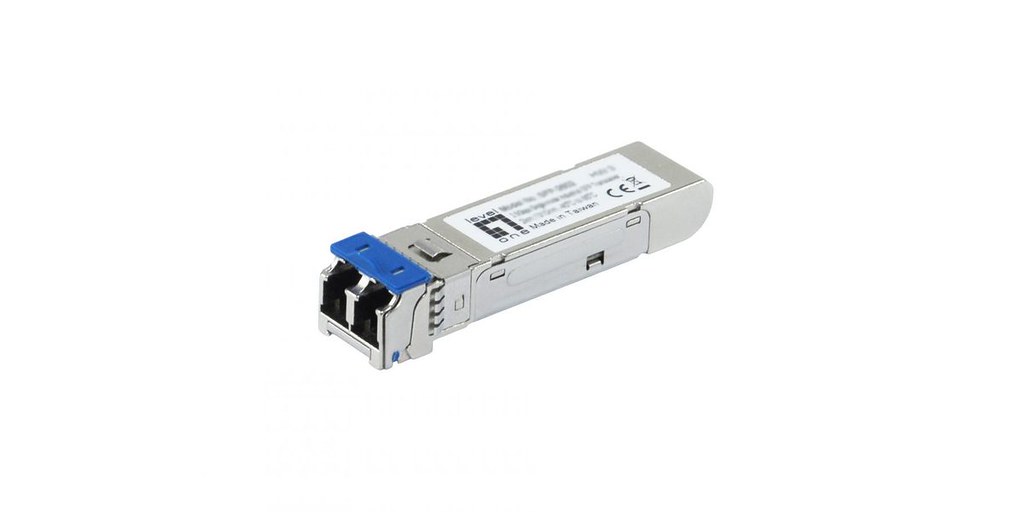

Transceiver LevelOne SFP 2.5Gbps SM Duplex LC 1550nm 40km
εως 36 δόσεις με πιστωτική κάρτα
Need Help? Fill in your details so we can call you immediately!
Πιστωτική Κάρτα
Buy now, pay later με tbi bank
4 installments 0% επιτόκιο, 20€ έως 300€
3 to 60 installments 300€ έως 100.00€
σε όλη την Ελλάδα
Related Products
Transceiver TP-Link ISM311LM network Fiber optic 1.25 Mbit/s SFP 850 nm
Converter TP-Link Omada MC211CS-2 network media 1000 Mbit/s 1310 nm Single-mode Black
Converter TP-Link Omada MC212CS-2 network media 1000 Mbit/s 1550 nm Single-mode Black
Converter Planet 4-Port 1G Ethernet PoE to VDSL2 Extender IVC-234GPT
The LevelOne SFP-2605 is a high-performance and cost-effective single-mode SFP transceiver designed specifically for Gigabit Ethernet applications. With its industrial-grade construction, it ensures reliable long-distance fibre optic connectivity, enhanced by advanced diagnostic capabilities.
Key Features:
- Up to 2.5 Gbps bidirectional data transfer rate
- Operates under the 2.5GBASE-LX standard
- Single-mode fibre transmission for use with 9 and 125 micron cables
- Transmission distances of up to 40 kilometers
- Duplex LC connector for fibre optic connections
- Digital diagnostic monitoring (DDM) capability
The optical characteristics of the transceiver include a wavelength of 1550nm and an optical transmission power range of 0 to 5 dBm. The module guarantees reliable signal detection with a receiver sensitivity rated at -21 dBm.
The power consumption of the SFP-2605 is approximately 1000 mW during operation. It operates across a temperature range of -40°C to 85°C, making it suitable for various demanding environments.
-
Data Transfer Rate2.5 Gbps
-
Wavelength1550 nm
-
Transmission Power Range0 to 5 dBm
-
Minimum Transmission Power-5 dBm
-
Receiver Sensitivity-21 dBm
-
Maximum Transmission Distance40 km
-
Power Consumption1000 mW
-
Operating Temperature Range-40°C to 85°C
-
Weight15.5 g
Ratings
Description
The LevelOne SFP-2605 is a high-performance and cost-effective single-mode SFP transceiver designed specifically for Gigabit Ethernet applications. With its industrial-grade construction, it ensures reliable long-distance fibre optic connectivity, enhanced by advanced diagnostic capabilities.
Key Features:
- Up to 2.5 Gbps bidirectional data transfer rate
- Operates under the 2.5GBASE-LX standard
- Single-mode fibre transmission for use with 9 and 125 micron cables
- Transmission distances of up to 40 kilometers
- Duplex LC connector for fibre optic connections
- Digital diagnostic monitoring (DDM) capability
The optical characteristics of the transceiver include a wavelength of 1550nm and an optical transmission power range of 0 to 5 dBm. The module guarantees reliable signal detection with a receiver sensitivity rated at -21 dBm.
The power consumption of the SFP-2605 is approximately 1000 mW during operation. It operates across a temperature range of -40°C to 85°C, making it suitable for various demanding environments.
Technical Specifications
-
Data Transfer Rate2.5 Gbps
-
Wavelength1550 nm
-
Transmission Power Range0 to 5 dBm
-
Minimum Transmission Power-5 dBm
-
Receiver Sensitivity-21 dBm
-
Maximum Transmission Distance40 km
-
Power Consumption1000 mW
-
Operating Temperature Range-40°C to 85°C
-
Weight15.5 g
