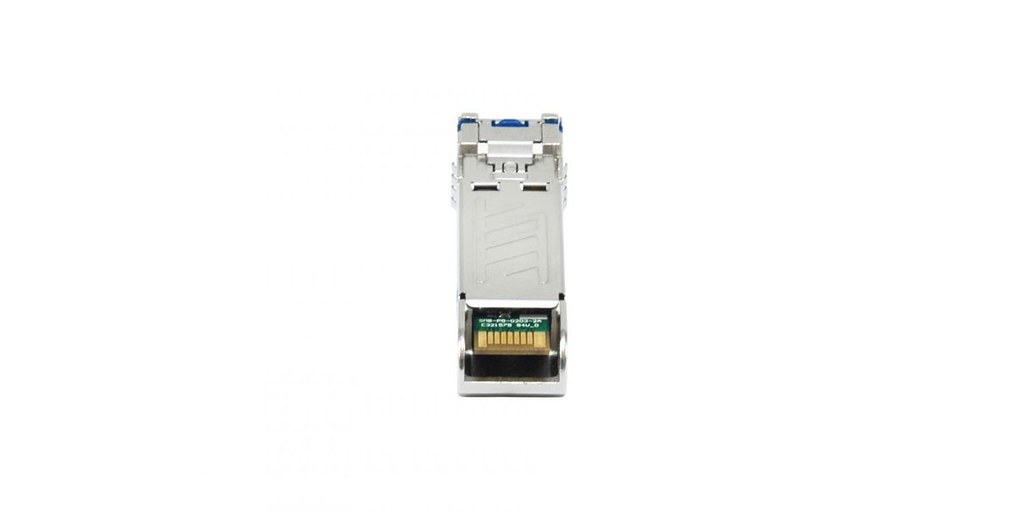

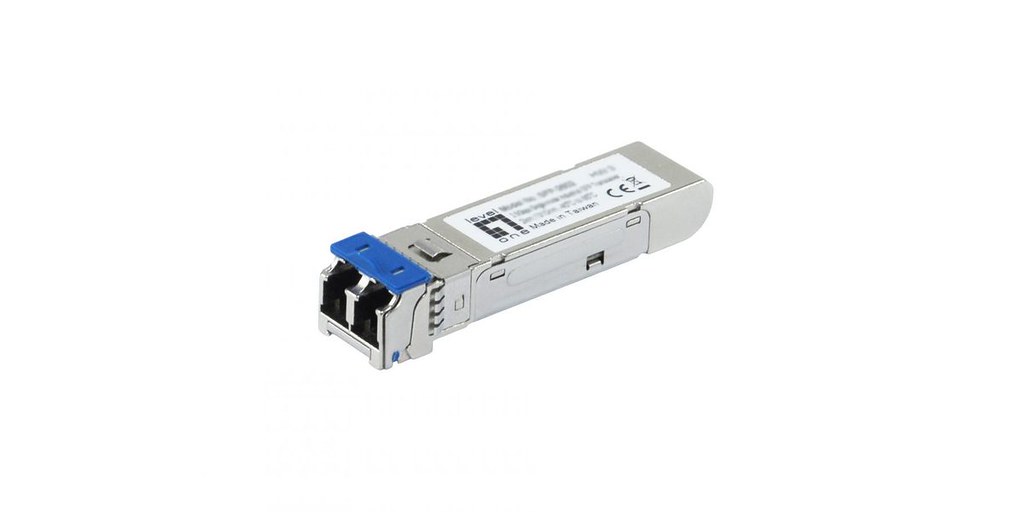

The LevelOne SFP-2505 is a high-performance and cost-effective single-mode SFP transceiver designed specifically for Gigabit Ethernet networking applications. This hot-swappable fiber optic transceiver ensures reliable full-duplex Ethernet connectivity, making it ideal for both commercial and industrial environments.
Core Specifications
- Data Transfer Rate: Up to 2.5 Gbps
- Wavelength: 1550nm
- Connector Port: LC connector
- Operating Distance: Up to 40 kilometers
The optical transmission power ranges from 0 to 5 dBm, and the receiver sensitivity is at -21 dBm. Additionally, the power consumption is rated at 1000 mW.
Operating Conditions
- Temperature Range: 0°C to 70°C
- Storage Temperature: -40°C to 85°C
- Humidity: 5% RH to 95% RH for storage; 0% to 85% RH during operation
Physical Specifications
- Dimensions: 55.9 mm (Length) x 13.4 mm (Width) x 13 mm (Height)
- Weight: 15.5 grams
This transceiver also features Digital Diagnostic Monitoring (DDM) functionality, providing real-time monitoring of performance parameters.
-
data_transfer_rate2.5 Gbps
-
wavelength1550 nm
-
connector_typeLC
-
maximum_distance40 km
-
transmission_power0 to 5 dBm
-
receiver_sensitivity-21 dBm
-
power_consumption1000 mW
-
operating_temperature_range0°C to 70°C
-
storage_temperature_range-40°C to 85°C
-
operating_humidity0% to 85% RH
-
storage_humidity5% to 95% RH
Ratings
Description
The LevelOne SFP-2505 is a high-performance and cost-effective single-mode SFP transceiver designed specifically for Gigabit Ethernet networking applications. This hot-swappable fiber optic transceiver ensures reliable full-duplex Ethernet connectivity, making it ideal for both commercial and industrial environments.
Core Specifications
- Data Transfer Rate: Up to 2.5 Gbps
- Wavelength: 1550nm
- Connector Port: LC connector
- Operating Distance: Up to 40 kilometers
The optical transmission power ranges from 0 to 5 dBm, and the receiver sensitivity is at -21 dBm. Additionally, the power consumption is rated at 1000 mW.
Operating Conditions
- Temperature Range: 0°C to 70°C
- Storage Temperature: -40°C to 85°C
- Humidity: 5% RH to 95% RH for storage; 0% to 85% RH during operation
Physical Specifications
- Dimensions: 55.9 mm (Length) x 13.4 mm (Width) x 13 mm (Height)
- Weight: 15.5 grams
This transceiver also features Digital Diagnostic Monitoring (DDM) functionality, providing real-time monitoring of performance parameters.
Technical Specifications
-
data_transfer_rate2.5 Gbps
-
wavelength1550 nm
-
connector_typeLC
-
maximum_distance40 km
-
transmission_power0 to 5 dBm
-
receiver_sensitivity-21 dBm
-
power_consumption1000 mW
-
operating_temperature_range0°C to 70°C
-
storage_temperature_range-40°C to 85°C
-
operating_humidity0% to 85% RH
-
storage_humidity5% to 95% RH
