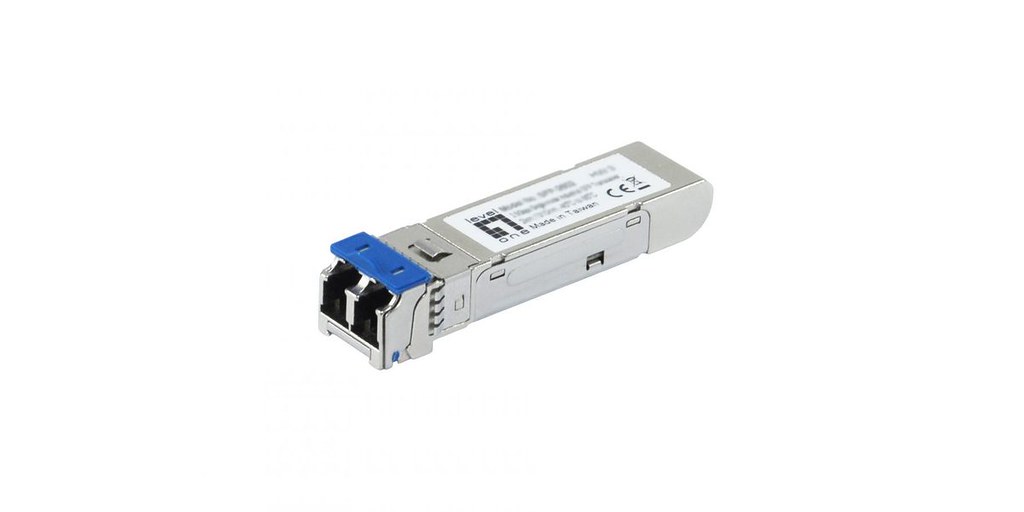

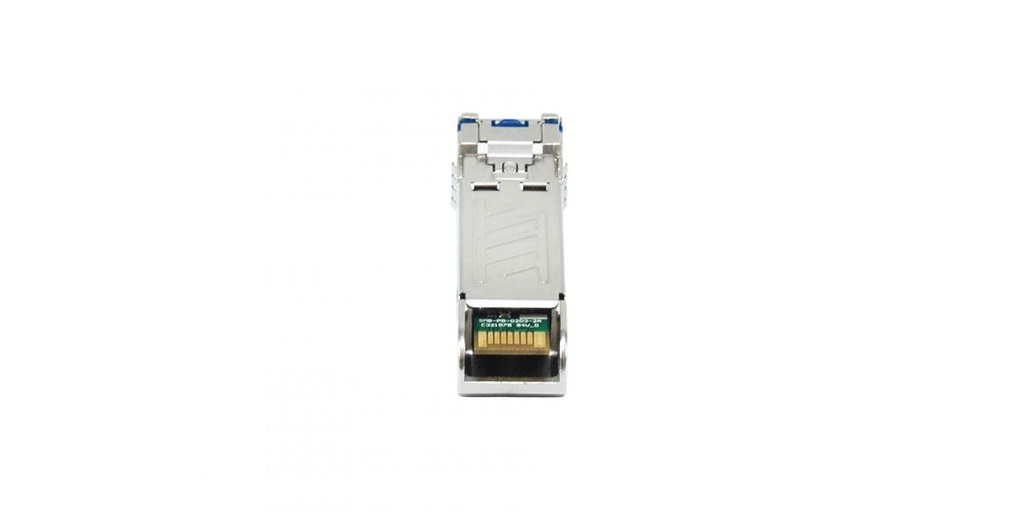

Transceiver LevelOne SFP 2.5Gbps SM Duplex LC 1310nm 20km
εως 36 δόσεις με πιστωτική κάρτα
Need Help? Fill in your details so we can call you immediately!
Πιστωτική Κάρτα
Buy now, pay later με tbi bank
4 installments 0% επιτόκιο, 20€ έως 300€
3 to 60 installments 300€ έως 100.00€
σε όλη την Ελλάδα
Related Products
Transceiver TP-Link ISM311LM network Fiber optic 1.25 Mbit/s SFP 850 nm
Converter TP-Link Omada MC211CS-2 network media 1000 Mbit/s 1310 nm Single-mode Black
Converter TP-Link Omada MC212CS-2 network media 1000 Mbit/s 1550 nm Single-mode Black
Converter Planet 4-Port 1G Ethernet PoE to VDSL2 Extender IVC-234GPT
The LevelOne SFP-2603 is a high-performance, cost-effective single-mode SFP transceiver designed for Gigabit Ethernet and other high-speed data communication applications.
This hot-swappable module supports a bidirectional data transfer rate of up to 2.5 Gbps over a single duplex fiber core. It is ideal for use in industrial and enterprise environments where reliable, long-distance fiber connectivity is required.
Key Features
- Data Rate: 2.5 Gbps
- Transmission Distance: Up to 20 km
- Wavelength: 1310 nm
- Fiber Type: Single-mode (compatible with 9/125 µm fiber cables)
- Laser Diode: DFB (Distributed Feedback)
- Connector: LC Duplex
- Operating Temperature: Industrial grade (-40°C to +85°C)
- Compliance: Full compliance with SFP MSA standards
Physical Dimensions
- Width: 55.9 mm
- Depth: 13.4 mm
- Height: 13 mm
- Weight: 15.5 g
This transceiver is an excellent choice for network administrators and engineers seeking a reliable, high-speed, and long-distance fiber optic solution for industrial and enterprise networks.
-
Module TypeSFP
-
Transmission ModeSingle-mode, Duplex
-
Max. Transmission Range20000 m
-
Wavelength1310 nm
-
Data Throughput2.50 Gbit/s
-
Receiver Sensitivity-21 dBm
-
Optical Transmission Power-9 to -3 dBm
-
Power Consumption1.0 W
-
InterfaceLC Duplex
-
Hot-SwappableYes
-
Digital Diagnostics Monitoring (DDM)Yes
Ratings
Description
The LevelOne SFP-2603 is a high-performance, cost-effective single-mode SFP transceiver designed for Gigabit Ethernet and other high-speed data communication applications.
This hot-swappable module supports a bidirectional data transfer rate of up to 2.5 Gbps over a single duplex fiber core. It is ideal for use in industrial and enterprise environments where reliable, long-distance fiber connectivity is required.
Key Features
- Data Rate: 2.5 Gbps
- Transmission Distance: Up to 20 km
- Wavelength: 1310 nm
- Fiber Type: Single-mode (compatible with 9/125 µm fiber cables)
- Laser Diode: DFB (Distributed Feedback)
- Connector: LC Duplex
- Operating Temperature: Industrial grade (-40°C to +85°C)
- Compliance: Full compliance with SFP MSA standards
Physical Dimensions
- Width: 55.9 mm
- Depth: 13.4 mm
- Height: 13 mm
- Weight: 15.5 g
This transceiver is an excellent choice for network administrators and engineers seeking a reliable, high-speed, and long-distance fiber optic solution for industrial and enterprise networks.
Technical Specifications
-
Module TypeSFP
-
Transmission ModeSingle-mode, Duplex
-
Max. Transmission Range20000 m
-
Wavelength1310 nm
-
Data Throughput2.50 Gbit/s
-
Receiver Sensitivity-21 dBm
-
Optical Transmission Power-9 to -3 dBm
-
Power Consumption1.0 W
-
InterfaceLC Duplex
-
Hot-SwappableYes
-
Digital Diagnostics Monitoring (DDM)Yes
