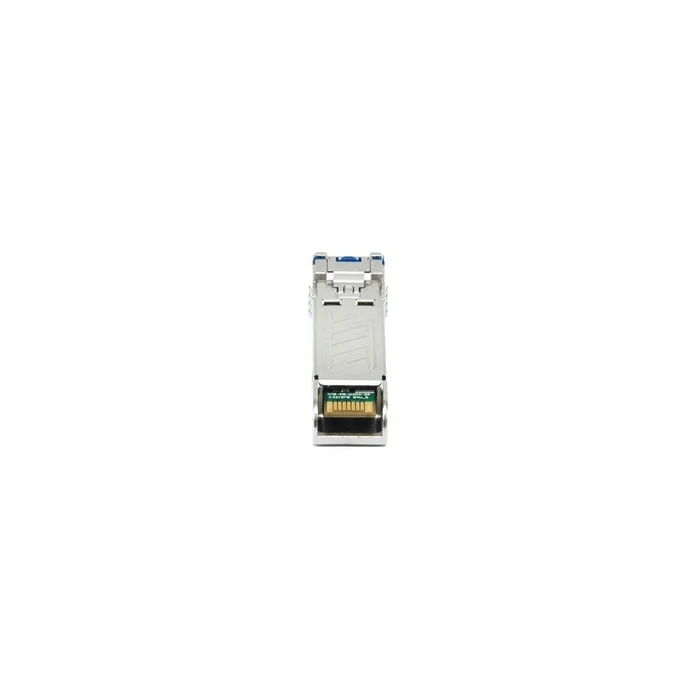

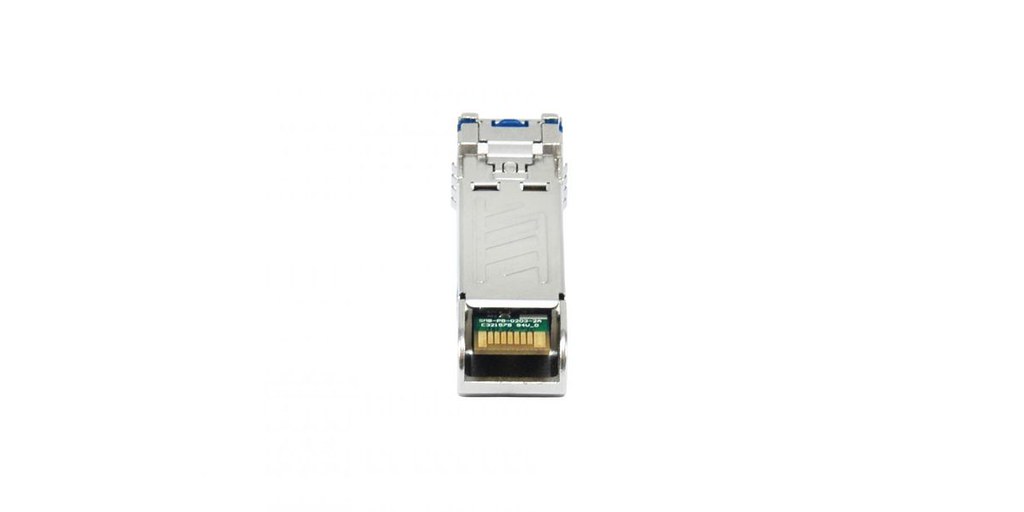

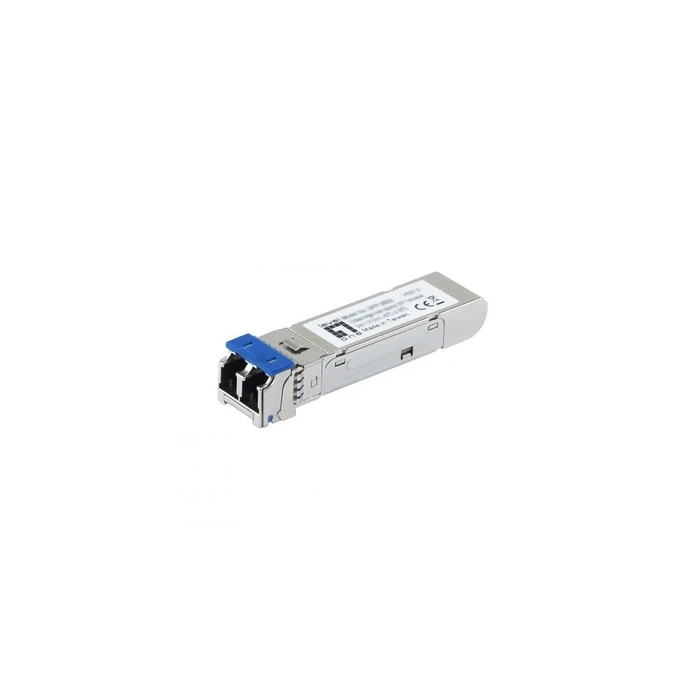

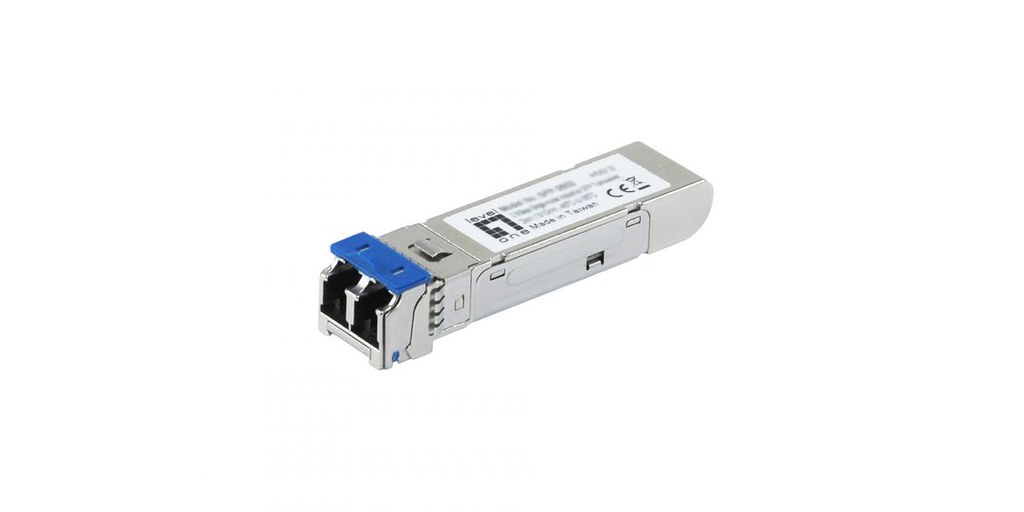

Transceiver LevelOne SFP 2.5Gbps SM Duplex LC 1310nm 20km
εως 36 δόσεις με πιστωτική κάρτα
Need Help? Fill in your details so we can call you immediately!
Πιστωτική Κάρτα
Buy now, pay later με tbi bank
4 installments 0% επιτόκιο, 20€ έως 300€
3 to 60 installments 300€ έως 100.00€
σε όλη την Ελλάδα
Related Products
Transceiver TP-Link ISM311LM network Fiber optic 1.25 Mbit/s SFP 850 nm
Converter TP-Link Omada MC211CS-2 network media 1000 Mbit/s 1310 nm Single-mode Black
Converter TP-Link Omada MC212CS-2 network media 1000 Mbit/s 1550 nm Single-mode Black
Converter Planet 4-Port 1G Ethernet PoE to VDSL2 Extender IVC-234GPT
The Transceiver LevelOne SFP-2503 is crafted for high-performance networking applications. With a data transmission capability of up to 2.5 Gbps, it operates at a wavelength of 1310 nm using a Distributed Feedback (DFB) laser diode light source, ensuring stable optical signals over long distances.
This module supports bidirectional data transfer over a single duplex fiber core. It is compatible with single-mode fiber cables of 9/125 micron fiber size, facilitating transmission distances of up to 20 km.
Technical specifications include:
- Data Rate: 2.5 Gbps
- Optical Mode: Single-mode
- Wavelength: 1310 nm
- Laser Type: DFB Laser Diode
- Connector Type: LC duplex connector
- Transmission Distance: Up to 20 kilometers
- Optical Transmit Power: -5 to 0 dBm
- Receiver Sensitivity: -20 dBm
- Power Consumption: Approx. 1000 mW
- Duplex Transmission: Full duplex
- Standards Compliance: CE, CB, FDA, FCC, TUV, UL, RoHS
Physical Characteristics:
- Weight: Approximately 15.5 grams
- Dimensions: 55.9 x 13.4 x 13 mm
- Color: Silver
- Package: Protective plastic case
Additional Features:
- Digital Diagnostics Monitoring (DDM)
- Commercial grade for various networking environments
In summary, the LevelOne SFP-2503 transceiver is designed for reliable, long-distance optical links with a moderate to high data rate.
-
Data Rate2.5 Gbps
-
Optical ModeSingle-mode
-
Wavelength1310 nm
-
Laser TypeDFB Laser Diode
-
Connector TypeLC duplex connector
-
Transmission Distance20 km
-
Optical Transmit Power-5 to 0 dBm
-
Receiver Sensitivity-20 dBm
-
Power Consumption1000 mW
-
Duplex TransmissionFull duplex
-
Standards ComplianceCE, CB, FDA, FCC, TUV, UL, RoHS
Ratings
Description
The Transceiver LevelOne SFP-2503 is crafted for high-performance networking applications. With a data transmission capability of up to 2.5 Gbps, it operates at a wavelength of 1310 nm using a Distributed Feedback (DFB) laser diode light source, ensuring stable optical signals over long distances.
This module supports bidirectional data transfer over a single duplex fiber core. It is compatible with single-mode fiber cables of 9/125 micron fiber size, facilitating transmission distances of up to 20 km.
Technical specifications include:
- Data Rate: 2.5 Gbps
- Optical Mode: Single-mode
- Wavelength: 1310 nm
- Laser Type: DFB Laser Diode
- Connector Type: LC duplex connector
- Transmission Distance: Up to 20 kilometers
- Optical Transmit Power: -5 to 0 dBm
- Receiver Sensitivity: -20 dBm
- Power Consumption: Approx. 1000 mW
- Duplex Transmission: Full duplex
- Standards Compliance: CE, CB, FDA, FCC, TUV, UL, RoHS
Physical Characteristics:
- Weight: Approximately 15.5 grams
- Dimensions: 55.9 x 13.4 x 13 mm
- Color: Silver
- Package: Protective plastic case
Additional Features:
- Digital Diagnostics Monitoring (DDM)
- Commercial grade for various networking environments
In summary, the LevelOne SFP-2503 transceiver is designed for reliable, long-distance optical links with a moderate to high data rate.
Technical Specifications
-
Data Rate2.5 Gbps
-
Optical ModeSingle-mode
-
Wavelength1310 nm
-
Laser TypeDFB Laser Diode
-
Connector TypeLC duplex connector
-
Transmission Distance20 km
-
Optical Transmit Power-5 to 0 dBm
-
Receiver Sensitivity-20 dBm
-
Power Consumption1000 mW
-
Duplex TransmissionFull duplex
-
Standards ComplianceCE, CB, FDA, FCC, TUV, UL, RoHS
