Transceiver LevelOne SFP 1.25Gpbs SM Duplex LC 1550nm 80km
εως 36 δόσεις με πιστωτική κάρτα
Need Help? Fill in your details so we can call you immediately!
Πιστωτική Κάρτα
Buy now, pay later με tbi bank
4 installments 0% επιτόκιο, 20€ έως 300€
3 to 60 installments 300€ έως 100.00€
σε όλη την Ελλάδα
Related Products
Transceiver TP-Link ISM311LM network Fiber optic 1.25 Mbit/s SFP 850 nm
Converter TP-Link Omada MC211CS-2 network media 1000 Mbit/s 1310 nm Single-mode Black
Converter TP-Link Omada MC212CS-2 network media 1000 Mbit/s 1550 nm Single-mode Black
Converter Planet 10/100TX - 100Base-FX (SC) Single Mode Bridge Fiber
Αξεσουάρ Οπτικής Ίνας EFB splice box LC 50/125Á OM4 extendable, 12 pigtails / 6 couplings

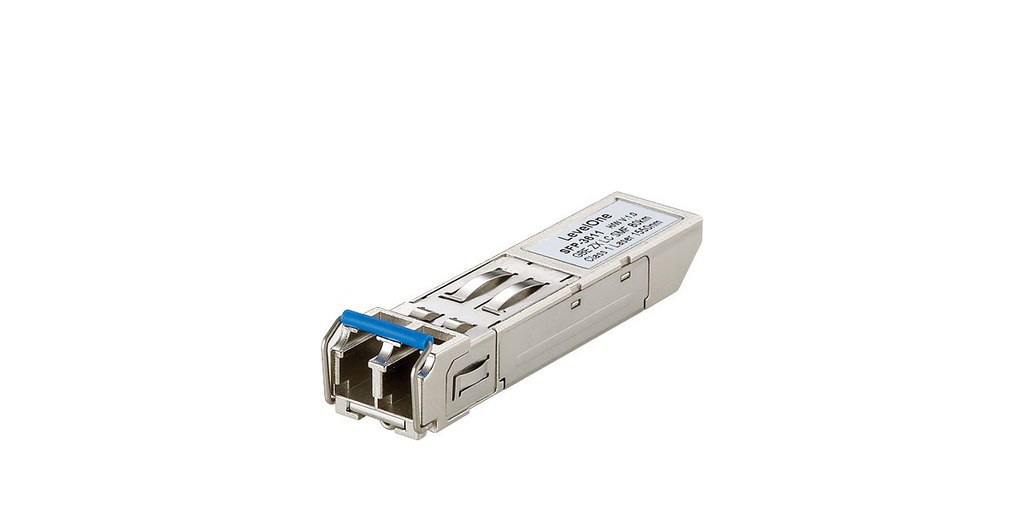

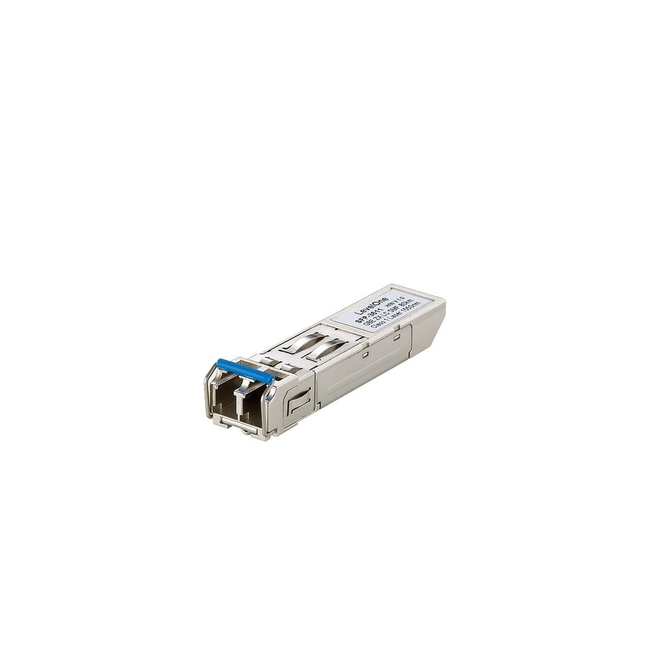

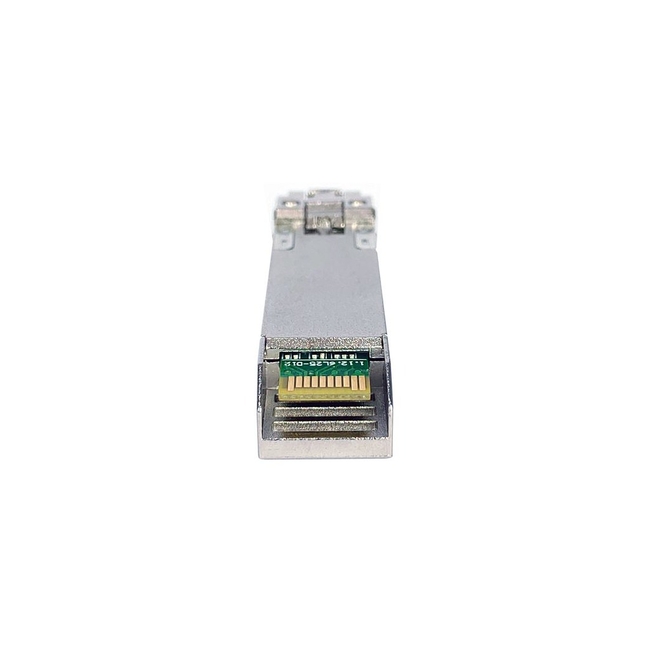

The LevelOne Transceiver SFP-3611 is a high-performance 1.25 Gbps single-mode fiber optic SFP transceiver designed specifically for Gigabit Ethernet applications. Operating at a wavelength of 1550 nm, this transceiver supports impressive fiber optic transmission distances of up to 80 km over a single-mode fiber (SMF) with a core/cladding diameter of 9/125 µm.
Equipped with a duplex LC connector, the SFP-3611 ensures reliable full-duplex communication, making it ideal for demanding network scenarios.
Technical Specifications:
- Data rate: 1.25 Gbps
- Fiber type: Single-mode fiber (SMF) only
- Wavelength: 1550 nm
- Transmission distance: Up to 80 km
- Connector: Duplex LC
- Fiber core/cladding diameter: 9/125 µm
- Tx power (maximum): Approximately 5 dBm
- Power consumption: Typical around 1 W
- Temperature range: -40°C to 85°C
- Digital Diagnostics Monitoring (DDM): Supported
- Hot-swappable: Yes
This transceiver complies with SFP Multi-Source Agreement (MSA) standards, ensuring compatibility with various networking equipment. It is optimized for long-distance, high-speed fiber optic communication, making it an excellent choice for telecommunications and enterprise-level network infrastructures.
-
Data rate1.25 Gbps
-
Fiber typeSingle-mode fiber (SMF)
-
Wavelength1550 nm
-
Transmission distanceUp to 80 km
-
ConnectorDuplex LC
-
Fiber core/cladding diameter9/125 µm
-
Tx power (maximum)Approximately 5 dBm
-
Power consumptionTypical around 1 W
-
Temperature range-40°C to 85°C
-
Digital Diagnostics Monitoring (DDM)Supported
-
Hot-swappableYes
Ratings
Description
The LevelOne Transceiver SFP-3611 is a high-performance 1.25 Gbps single-mode fiber optic SFP transceiver designed specifically for Gigabit Ethernet applications. Operating at a wavelength of 1550 nm, this transceiver supports impressive fiber optic transmission distances of up to 80 km over a single-mode fiber (SMF) with a core/cladding diameter of 9/125 µm.
Equipped with a duplex LC connector, the SFP-3611 ensures reliable full-duplex communication, making it ideal for demanding network scenarios.
Technical Specifications:
- Data rate: 1.25 Gbps
- Fiber type: Single-mode fiber (SMF) only
- Wavelength: 1550 nm
- Transmission distance: Up to 80 km
- Connector: Duplex LC
- Fiber core/cladding diameter: 9/125 µm
- Tx power (maximum): Approximately 5 dBm
- Power consumption: Typical around 1 W
- Temperature range: -40°C to 85°C
- Digital Diagnostics Monitoring (DDM): Supported
- Hot-swappable: Yes
This transceiver complies with SFP Multi-Source Agreement (MSA) standards, ensuring compatibility with various networking equipment. It is optimized for long-distance, high-speed fiber optic communication, making it an excellent choice for telecommunications and enterprise-level network infrastructures.
Technical Specifications
-
Data rate1.25 Gbps
-
Fiber typeSingle-mode fiber (SMF)
-
Wavelength1550 nm
-
Transmission distanceUp to 80 km
-
ConnectorDuplex LC
-
Fiber core/cladding diameter9/125 µm
-
Tx power (maximum)Approximately 5 dBm
-
Power consumptionTypical around 1 W
-
Temperature range-40°C to 85°C
-
Digital Diagnostics Monitoring (DDM)Supported
-
Hot-swappableYes
