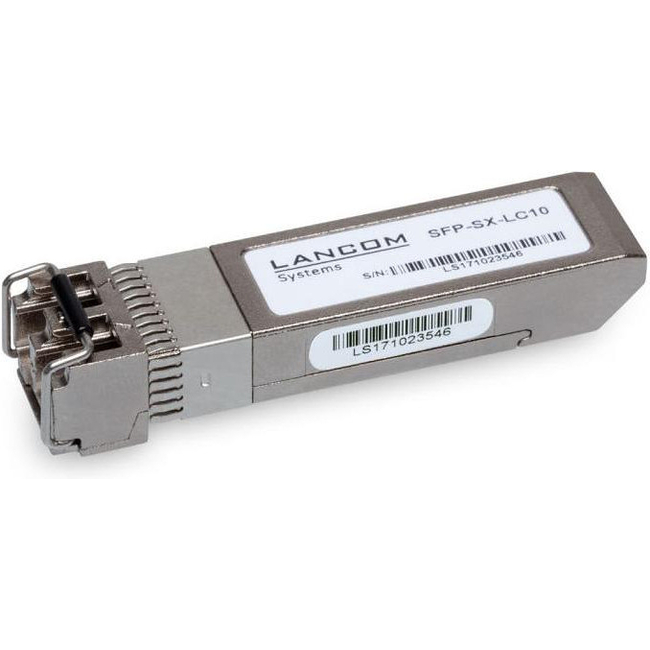

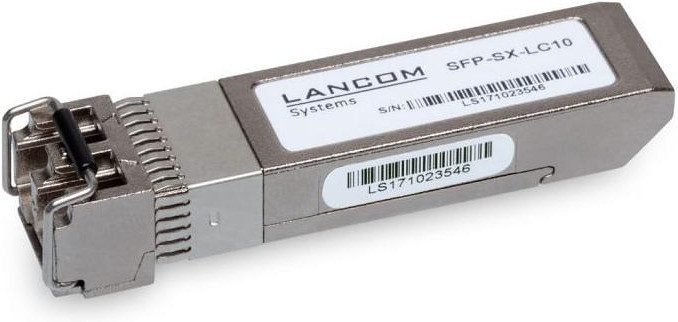

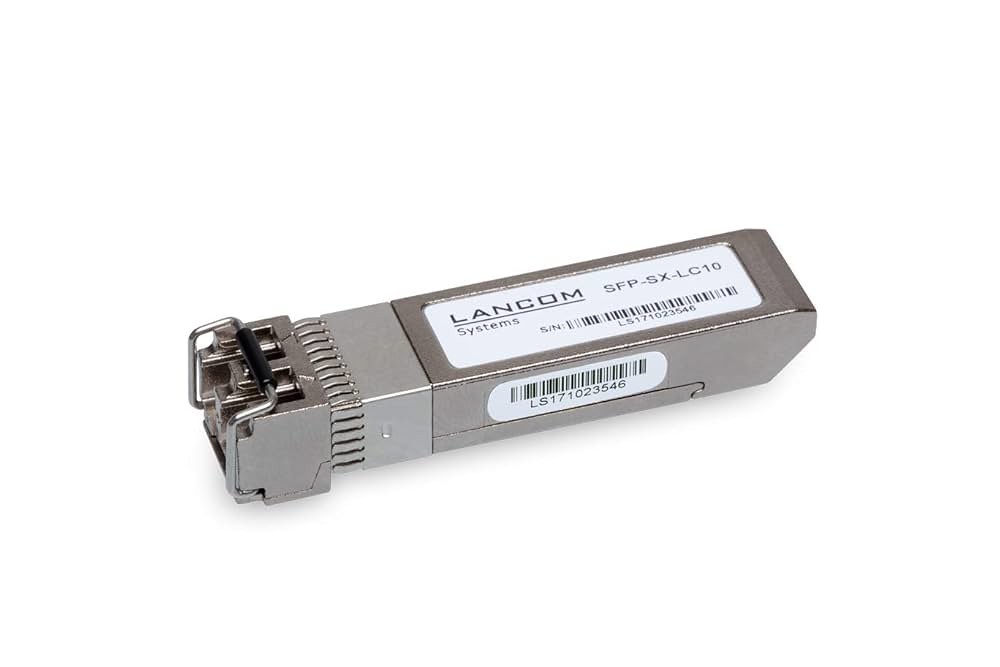

Transceiver LANCOM UF-SFP-SX-LC1-LC10
εως 36 δόσεις με πιστωτική κάρτα
Need Help? Fill in your details so we can call you immediately!
4 installments 0% επιτόκιο, 20€ έως 300€
3 to 60 installments 300€ έως 100.00€
σε όλη την Ελλάδα
Related Products
Transceiver TP-Link ISM311LM network Fiber optic 1.25 Mbit/s SFP 850 nm
Converter TP-Link Omada MC211CS-2 network media 1000 Mbit/s 1310 nm Single-mode Black
Converter TP-Link Omada MC212CS-2 network media 1000 Mbit/s 1550 nm Single-mode Black
Converter Planet 4-Port 1G Ethernet PoE to VDSL2 Extender IVC-234GPT
Converter Planet 10/100TX - 100Base-FX (SC) Single Mode Bridge Fiber
The Transceiver LANCOM UF-SFP-SX-LC1-LC10 is a high-performance optical SFP+ module with exceptional capabilities. Designed for 10 Gbps Ethernet fiber connections over multimode fiber (MMF), it ensures reliable data transmission.
Key Features:
- Form Factor: SFP+ compatible with standard SFP+ ports.
- Data Rate: Up to 10 Gbps full-duplex transmission.
- Wavelength: 850 nm optical wavelength optimized for short-range applications.
- Transmission Distance:
- Up to 82 meters on OM2 multimode fiber.
- Up to 300 meters on OM3 multimode fiber.
- Up to 400 meters on OM4 multimode fiber.
- Connector Type: LC duplex connector interface.
This module is ideal for data center applications, providing high-speed connections for network switches, routers, and media converters.
-
Form FactorSFP+
-
Data Rate10 Gbps
-
Wavelength850 nm
-
Max Transmission Distance (OM2)82 m
-
Max Transmission Distance (OM3)300 m
-
Max Transmission Distance (OM4)400 m
-
Connector TypeLC duplex
-
Transmitter TechnologyVCSEL
-
Receiver TypePIN photodiode
-
Transmitter Power-6 to -1 dBm
-
Receiver Sensitivity< -10 dBm
-
Extinction Ratio> 3.5 dB
-
Receiver Overload Threshold> 0.5 dBm
-
Power Consumption1 W
-
DDM/DOM SupportYes
-
ComplianceRoHS, CE, REACH
-
Operating Temperature0 to 70 °C
-
Storage Temperature-40 to 85 °C
-
Dimensions56.7 mm x 13.7 mm x 8.5 mm
-
Weight0.03 kg
Ratings
Description
The Transceiver LANCOM UF-SFP-SX-LC1-LC10 is a high-performance optical SFP+ module with exceptional capabilities. Designed for 10 Gbps Ethernet fiber connections over multimode fiber (MMF), it ensures reliable data transmission.
Key Features:
- Form Factor: SFP+ compatible with standard SFP+ ports.
- Data Rate: Up to 10 Gbps full-duplex transmission.
- Wavelength: 850 nm optical wavelength optimized for short-range applications.
- Transmission Distance:
- Up to 82 meters on OM2 multimode fiber.
- Up to 300 meters on OM3 multimode fiber.
- Up to 400 meters on OM4 multimode fiber.
- Connector Type: LC duplex connector interface.
This module is ideal for data center applications, providing high-speed connections for network switches, routers, and media converters.
Technical Specifications
-
Form FactorSFP+
-
Data Rate10 Gbps
-
Wavelength850 nm
-
Max Transmission Distance (OM2)82 m
-
Max Transmission Distance (OM3)300 m
-
Max Transmission Distance (OM4)400 m
-
Connector TypeLC duplex
-
Transmitter TechnologyVCSEL
-
Receiver TypePIN photodiode
-
Transmitter Power-6 to -1 dBm
-
Receiver Sensitivity< -10 dBm
-
Extinction Ratio> 3.5 dB
-
Receiver Overload Threshold> 0.5 dBm
-
Power Consumption1 W
-
DDM/DOM SupportYes
-
ComplianceRoHS, CE, REACH
-
Operating Temperature0 to 70 °C
-
Storage Temperature-40 to 85 °C
-
Dimensions56.7 mm x 13.7 mm x 8.5 mm
-
Weight0.03 kg
